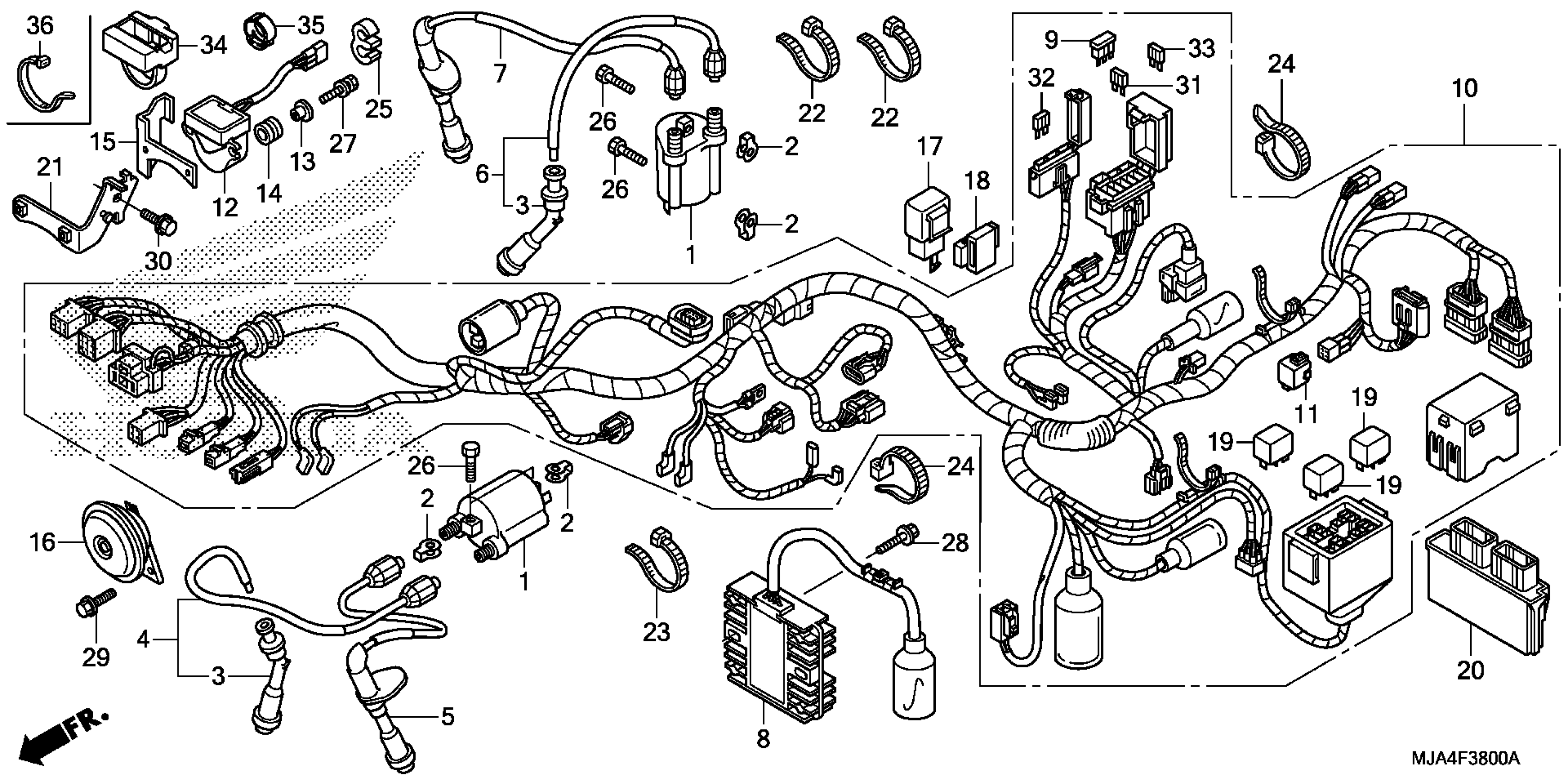

Honda VT750CAA (12) SHADOW AERO, JPN, VIN# JH2RC504-CK700001 WIRE HARNESS (1) Diagram

COIL, IGNITION

30510-MCC-003

$89.93

SPACER, IGNITION COIL

30520-ML7-000

$3.77

CAP ASSY., NOISE SUPPRESSOR

30700-KK6-153

$28.93

WIRE ASSY., R. FR. IGNITION

30771-MEG-000

$22.64

WIRE ASSY., L. FR. IGNITION

30772-MEG-000

$22.65

WIRE ASSY., L. RR. IGNITION

30773-MFE-641

$32.41

WIRE ASSY., R. RR. IGNITION

30774-MFE-641

$35.31

RECTIFIER ASSY., REGULATE

31600-MFE-641

$186.54

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS This part replaces 32100-MEG-A60.

32100-MEG-A61

$1,103.77

WIRE HARNESS

32100-MEG-A61

$1,103.77

CAP, DUMMY (4P) (RED) (Honda Code 7679160)

32606-GEV-761

$4.52

SENSOR, BANK ANGLE This part replaces 35161-MFE-643.

35161-MFE-644

$143.62

SENSOR, BANK ANGLE

35161-MFE-644

$143.62

SENSOR, BANK ANGLE

35161-MJA-A01

$105.16

COLLAR

35162-MN5-003

$7.25

GROMMET

35163-MN5-003

$3.15

PLATE, BANK ANGLE SENSOR

35165-MEG-A60

$33.97

HORN (HIGH)

38110-KB1-921

$57.69

RELAY (MICRO ISO 4P) This part replaces 38501-MEL-003.

38501-MKP-DN1

$4.80

PGM-FI UNIT

38770-MEG-A62

$708.15

BRACKET, BANK ANGLE SENSOR

50128-MEG-A60

$13.30

BAND, WIRE HARNESS

90620-SB2-003

$24.63

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

CLIP, HIGH TENSION CORD (L. SIDE)

90658-ZA0-930

$2.48

BOLT, HEX. (6X20)

92101-06020-4J

$1.49

BOLT-WASHER (4X25)

93401-04025-08

$1.49

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55

BOLT, FLANGE (8X12)

95701-08012-07

$1.72

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

FUSE, MINI (10A)

98200-41000

$1.49

FUSE, MINI (15A) (Honda Code 4853438)

98200-41500

$1.49

FUSE, MINI (20A)

98200-42000

$1.49

CUSHION, BANK ANGLE

35165-MJA-A00

$9.18

CLIP, WIRE HARNESS

90683-KJ2-003

$3.56

TY-RAP, CABLE

91560-MS8-600

$2.38
