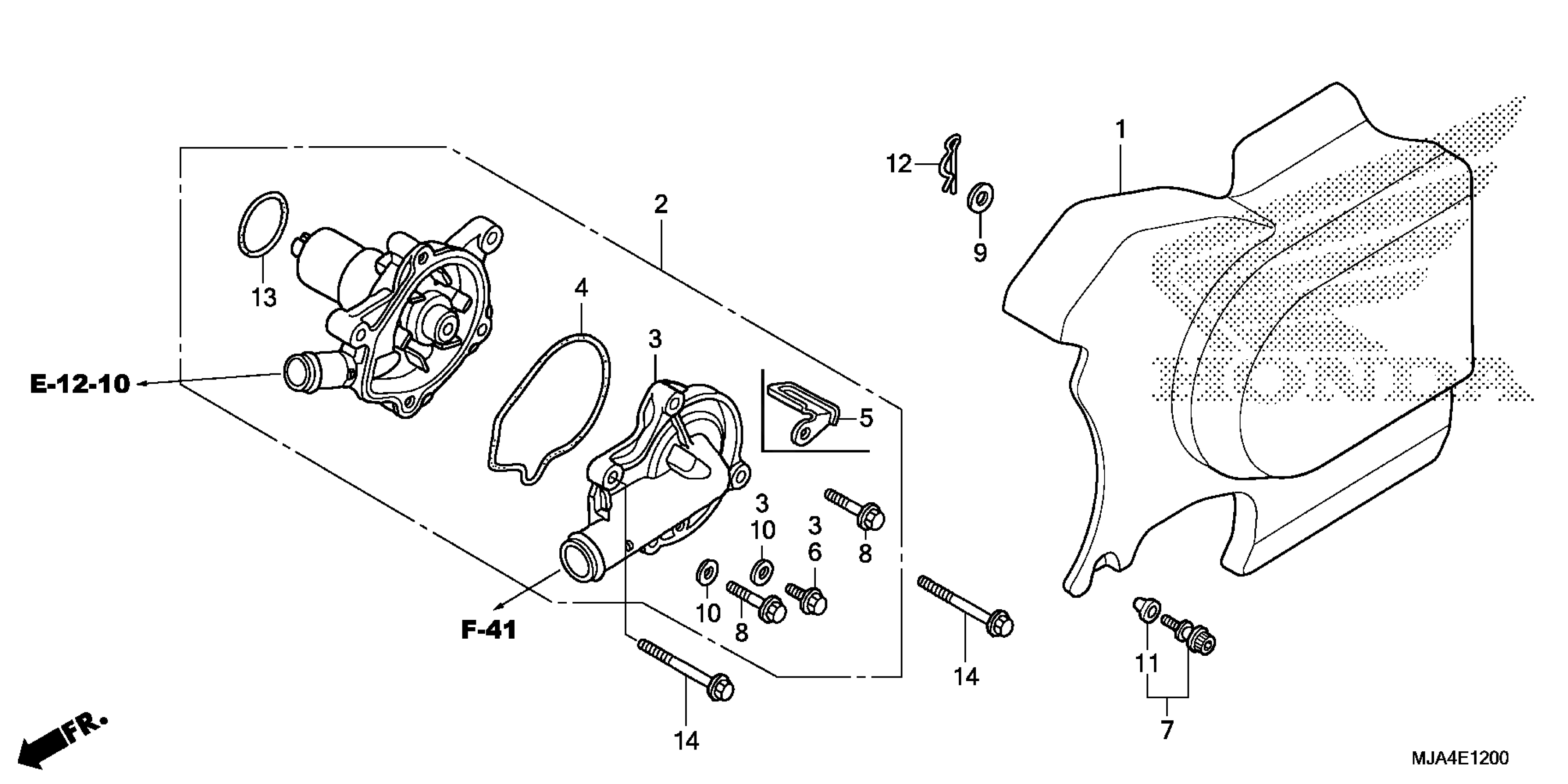

Honda VT750CAA (12) SHADOW AERO, JPN, VIN# JH2RC504-CK700001 WATER PUMP Diagram

#

Description

Price

1

COVER, L. RR.

11351-MEG-000

$90.17

2

WATER PUMP ASSY.

19200-MEG-000

$203.04

3

COVER ASSY., WATER PUMP

19220-MBA-600

$95.34

4

GASKET, WATER PUMP COVER

19226-MM9-000

$4.28

6

BOLT, FLANGE (6X12) (CT200)

90013-883-000

$1.43

7

BOLT ASSY., SPECIAL (6X22) (FRAME NO.)

90020-MBA-D20

$4.05

8

BOLT, FLANGE (6X25)

90121-MV9-670

$2.75

9

WASHER B, SEALING (10MM)

90442-283-000

$2.32

10

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

11

RUBBER, MOUNTING (FRAME NO.)

90543-MBA-000

$2.80

12

PIN, LOCK (10MM)

90604-MEG-000

$1.25

13

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

Unavailable

14

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.59

14

BOLT, FLANGE (6X45) BOLT, FLANGE (6X60)

95701-06045-07

$2.59
