Description

Price

1

SPROCKET, OIL PUMP DRIVE (31T)

15131-MEW-921

$54.99

2

CLUTCH OUTER (67T)

22100-MBL-610

$301.18

3

COLLAR, PRIMARY DRIVEN

22116-MF5-000

$45.94

4

CENTER, CLUTCH (24T)

22120-MBA-000

$80.64

5

SEAT, JUDDER SPRING

22125-435-000

$8.43

6

DISK, CLUTCH FRICTION

22201-MAV-000

$11.96

7

DISK B, CLUTCH FRICTION

22202-MAE-000

$14.70

8

PLATE, CLUTCH

22321-MN8-000

$8.64

9

PLATE, CLUTCH PRESSURE | Use up to Engine SN 2511044. This part replaces 22350-MS6-921.

22350-MS6-922

$55.13

9

PLATE, CLUTCH PRESSURE

22350-MS6-922

$55.13

10

PLATE, CLUTCH LIFTER

22361-MR1-000

$19.44

11

SPRING, CLUTCH

22401-MEG-000

$3.89

12

SPRING, JUDDER

22402-435-000

$31.56

13

ROD, CLUTCH LIFTER

22847-MZ8-H00

$5.40

14

GEAR, PRIMARY DRIVE (38T)

23103-MEG-010

$78.93

16

ROTOR, PULSE

30211-MFE-640

$16.24

17

BOLT, FLANGE (12X30)

90005-MN5-000

$7.76

18

BOLT, SPECIAL FLANGE (6X30)

90007-MR1-000

$2.80

19

NUT, LOCK (18MM)

90236-HA0-000

$9.59

21

WASHER (18MM)

90401-MZ8-B40

$2.34

22

WASHER (12.5X34X5)

90403-MEW-920

$4.32

23

WASHER, LOCK

90432-428-000

$7.23

24

WASHER, THRUST (22MM)

90452-471-000

$4.56

25

BEARING, RADIAL BALL (6001)

96100-60010-00

$7.32

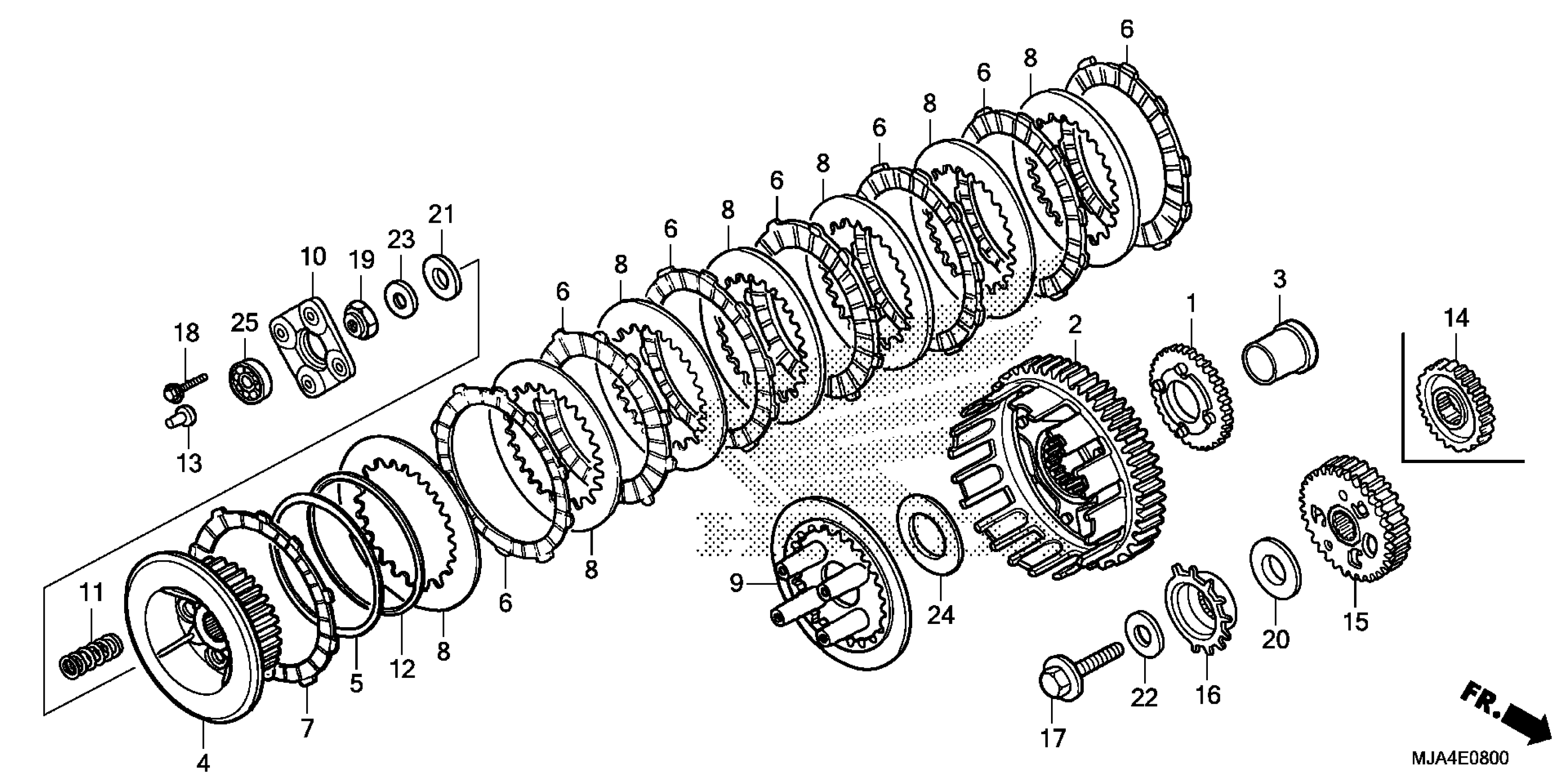

Honda VT750CAA (12) SHADOW AERO, JPN, VIN# JH2RC504-CK700001 CLUTCH Diagram
