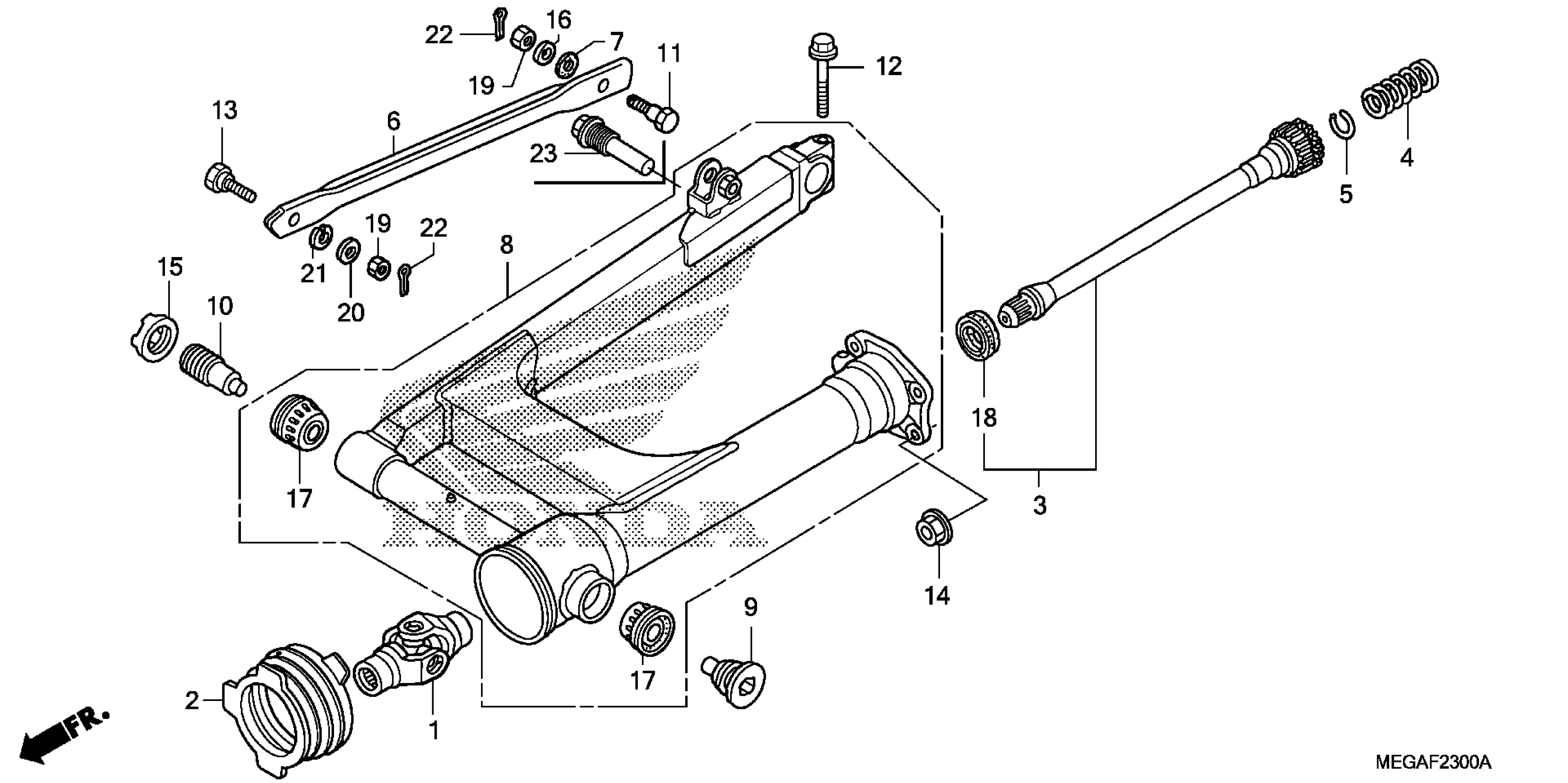

Honda VT750CA2A (09) SHADOW AERO, JPN, VIN# JH2RC507-9K000001 TO JH2RC507-9K001200 SWINGARM Diagram

JOINT, YOKE

40200-MR6-671

$332.43

BOOT, JOINT

40207-MT3-610

$26.09

SHAFT ASSY., PROPELLER

40210-MEG-000

$203.11

SPRING, PROPELLER SHAFT

40215-ME9-003

$5.90

RING, STOPPER

40221-MB0-000

$4.53

ARM, RR. BRAKE STOPPER

43431-ME9-010

Unavailable

RUBBER, STOPPER ARM

43434-ME1-670

$3.47

SWINGARM ASSY., RR. This part replaces 52100-MEG-000.

52100-MFS-000

$547.93

SWINGARM ASSY., RR.

52100-MFS-000

$547.93

BOLT, R. SWINGARM PIVOT (L. SIDE)

90121-MAM-A60

$12.30

BOLT, L. SWINGARM PIVOT (R. SIDE)

90122-MAM-L40

$25.64

BOLT, RR. BRAKE STOPPER

90127-393-000

$4.85

BOLT, FLANGE (8X32)

90129-KFG-000

$2.11

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.48

NUT, HEX. (10MM)

90308-MEG-000

$4.07

NUT, SWINGARM PIVOT LOCK

90355-469-000

$17.54

WASHER A, HANDLE HOLDER SETTING This part replaces 90505-425-000.

90524-030-000

$1.49

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

BEARING, TAPER ROLLER (17X40X13.25) (KOYO)

91066-HA7-672

$62.07

OIL SEAL (27X43X7)

91261-ME9-005

$12.13

NUT, HEX. (8MM)

94001-08000-0S

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, SPRING (10MM)

94111-10000

$1.49

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

PIN, COTTER (2.0X22) PIN, COTTER (2.0X25)

94201-20220

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

PIN, COTTER (2.0X35) PIN, COTTER (2.0X22)

94201-20350

$1.49

PIN, COTTER (2.0X22)

94201-29220

$1.49
