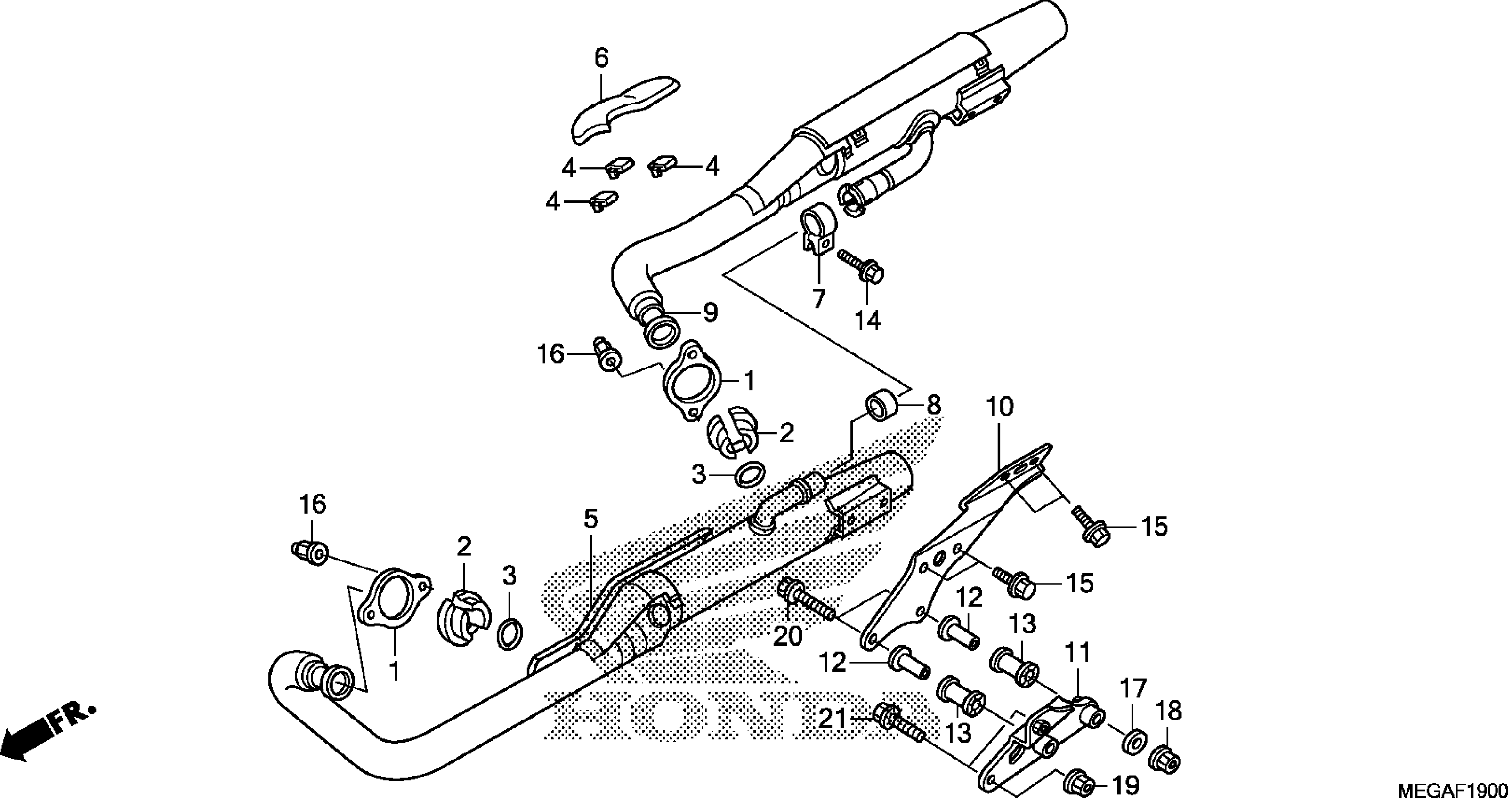

Honda VT750CA2A (09) SHADOW AERO, JPN, VIN# JH2RC507-9K000001 TO JH2RC507-9K001200 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-MBA-003

$23.81

2

COLLAR, EX. PIPE JOINT

18233-MBA-000

$13.73

3

GASKET, EX. PIPE

18291-MM5-860

$4.81

4

RUBBER, PROTECTOR

18293-MN0-000

$1.94

5

MUFFLER, FR. EX. This part replaces 18300-MFE-671.

18300-MFE-672

Unavailable

5

MUFFLER, FR. EX.

18300-MFE-672

Unavailable

6

PROTECTOR, RR. EX. This part replaces 18315-MFE-671.

18315-MFE-673

Unavailable

7

BAND, L. EX. PIPE

18374-ML4-003

$14.71

8

GASKET, MUFFLER

18391-ML8-000

$8.27

9

MUFFLER, RR. EX. This part replaces 18400-MFE-671.

18400-MFE-673

Unavailable

9

MUFFLER, RR. EX. This part replaces 18400-MFE-672.

18400-MFE-673

Unavailable

9

MUFFLER, RR. EX.

18400-MFE-673

Unavailable

10

STAY, MUFFLER

18415-MFE-670

$47.64

11

BRACKET, MUFFLER

18455-MFE-670

$94.45

12

COLLAR, MOUNTING RUBBER

50607-KK6-000

$8.20

13

RUBBER, MUFFLER MOUNTING

50608-KK6-000

$7.26

14

BOLT, FLANGE (8X32)

90125-GS9-000

$2.80

15

BOLT, FLANGE (8X16)

90166-S87-A00

$0.67

16

NUT, CAP (8MM)

90304-ME1-670

$5.54

17

WASHER (8.3MM)

90534-011-000

$1.41

18

NUT, FLANGE (8MM)

94050-08070

$1.36

19

NUT, FLANGE (10MM)

90303-428-900

$3.12

19

NUT, FLANGE (10MM) This part replaces 94050-10070.

90303-428-900

$3.12

20

BOLT, FLANGE (8X55)

95701-08055-07

$1.68

21

BOLT, FLANGE (10X50)

95701-10050-07

$1.68
