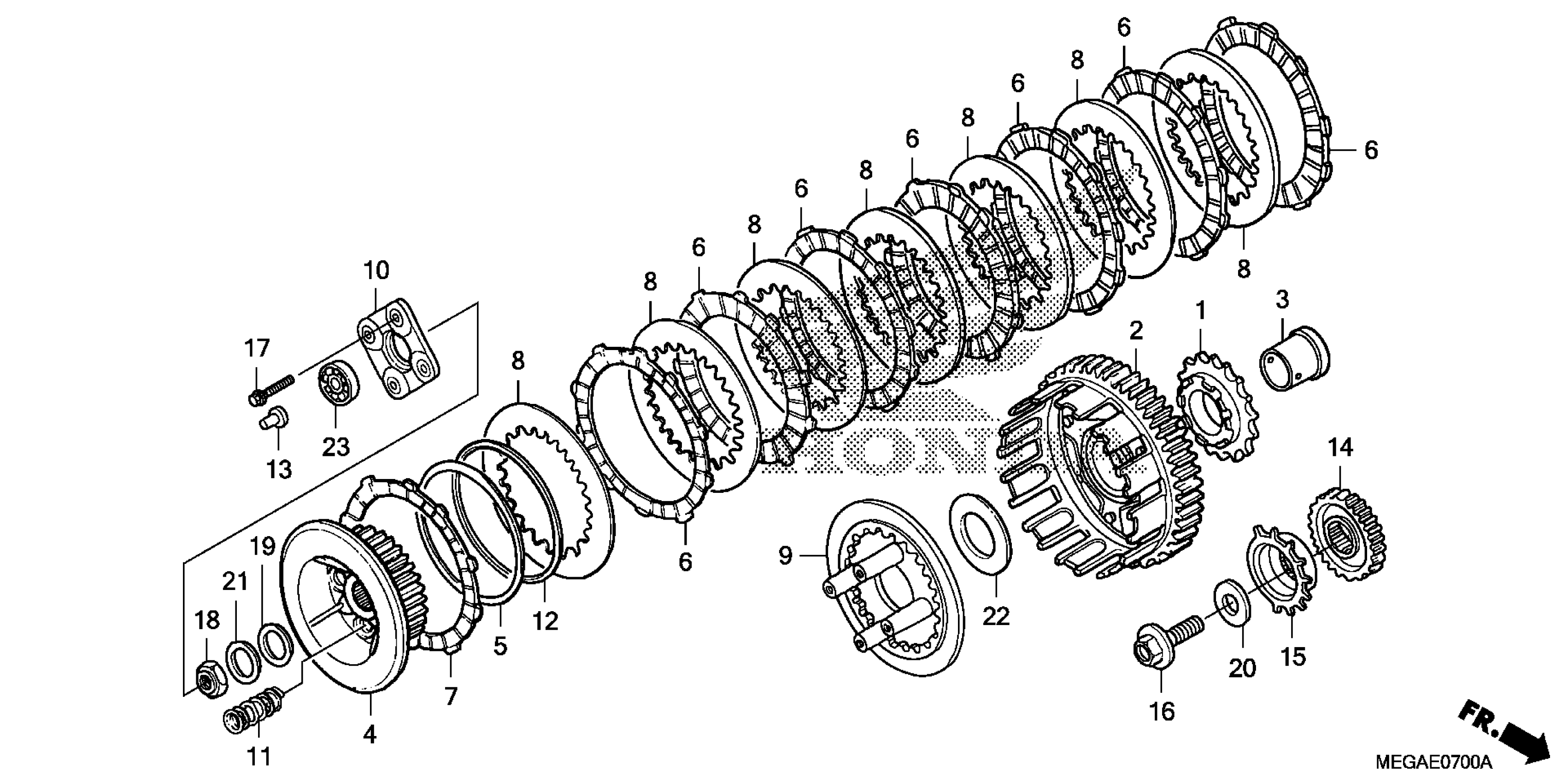

Honda VT750CA2A (09) SHADOW AERO, JPN, VIN# JH2RC507-9K000001 TO JH2RC507-9K001200 CLUTCH Diagram

SPROCKET, OIL PUMP DRIVE (31T)

15131-MEW-921

$59.51

CLUTCH OUTER (67T)

22100-MBL-610

$328.03

COLLAR, PRIMARY DRIVEN

22116-MF5-000

$49.72

CENTER, CLUTCH (24T)

22120-MBA-000

$87.83

SEAT, JUDDER SPRING

22125-435-000

$9.15

DISK, CLUTCH FRICTION

22201-MAV-000

$13.04

DISK B, CLUTCH FRICTION

22202-MAE-000

$16.01

PLATE, CLUTCH

22321-MN8-000

$9.38

PLATE, CLUTCH PRESSURE This part replaces 22350-MS6-921.

22350-MS6-922

$60.04

PLATE, CLUTCH PRESSURE

22350-MS6-922

$60.04

PLATE, CLUTCH LIFTER

22361-MR1-000

$21.17

SPRING, CLUTCH

22401-MEG-000

$4.07

SPRING, JUDDER

22402-435-000

$34.37

ROD, CLUTCH LIFTER

22847-MZ8-H00

$5.84

GEAR, PRIMARY DRIVE (38T)

23103-MEG-010

$85.41

ROTOR, PULSER

30211-MBA-000

Unavailable

BOLT, FLANGE (12X30)

90005-MN5-000

$8.41

BOLT, SPECIAL FLANGE (6X30)

90007-MR1-000

$2.92

NUT, LOCK (18MM)

90236-HA0-000

$10.45

WASHER (18MM)

90401-MZ8-B40

$2.52

WASHER (12.5X34X5)

90403-MEW-920

$4.67

WASHER, LOCK

90432-428-000

$7.57

WASHER, THRUST (22MM)

90452-471-000

$4.76

BEARING, RADIAL BALL (6001)

96100-60010-00

$17.13
