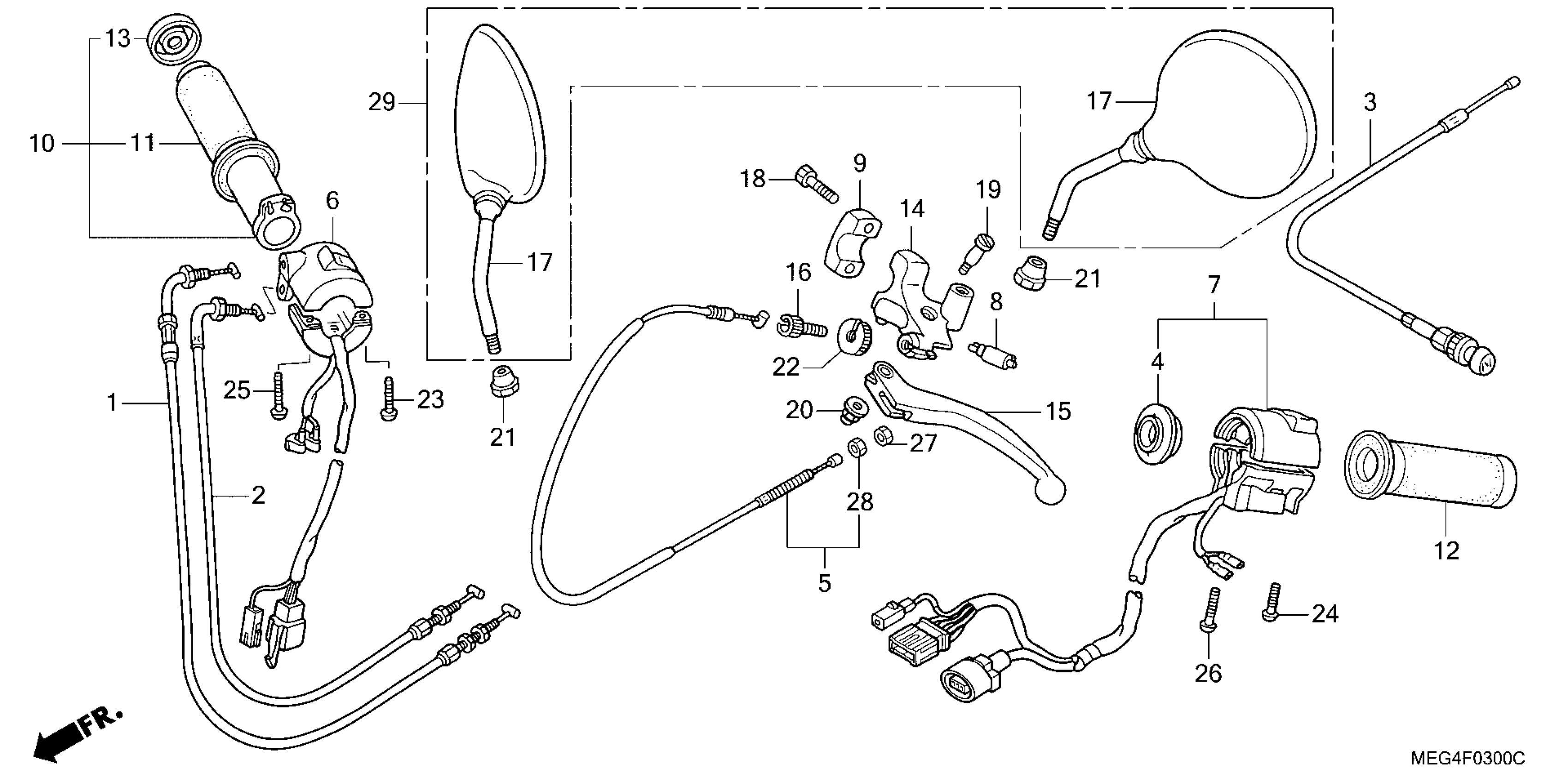

Honda VT750CA/A (04) SHADOW AERO, JPN, VIN# JH2RC500-4K010001 TO JH2RC500-4K019999 HANDLE SWITCH Diagram

CABLE A, THROTTLE

17910-MEG-000

$36.52

CABLE B, THROTTLE

17920-MEG-000

$36.52

CABLE, CHOKE

17950-MEG-000

$21.36

ADAPTER

17962-MR1-000

$19.30

CABLE, CLUTCH

22870-MEG-000

$31.09

SWITCH ASSY., STARTER STOP This part replaces 35130-MEG-671.

35130-MEG-673

$112.05

SWITCH ASSY., STARTER STOP This part replaces 35130-MEG-672.

35130-MEG-673

$112.05

SWITCH ASSY., STARTER STOP

35130-MEG-673

$112.05

SWITCH ASSY., TURN SIGNAL

35200-MEG-670

$126.54

SWITCH, FR. LEVER (TOYO DENSO)

35330-413-003

$21.91

HOLDER, MASTER CYLINDER (NISSIN)

45517-MEG-006

$9.80

GRIP ASSY., R.

53145-MM8-000

$43.84

GRIP ASSY., R.

53145-MM8-000

$43.84

GRIP, R. This part replaces 53165-MM8-000.

53145-MM8-000

$43.84

GRIP, L. HANDLE

53166-KCR-000

$36.92

CAP, GRIP END

53167-MM8-000

$9.37

BRACKET, HANDLE LEVER

53172-MEG-000

$31.75

LEVER, L. HANDLE

53178-MAH-000

$19.50

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

MIRROR

88210-MEG-670

Unavailable

BOLT, SOCKET (6X22)

90101-MCL-000

$1.49

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.58

NUT, CAP (6MM)

90201-415-000

$2.05

NUT, LOCK

90314-MS9-000

$4.28

NUT, FIXING

90321-MA6-750

$10.45

SCREW, PAN (5X20)

93500-05020-0A

$1.49

SCREW, PAN (5X22)

93500-05022-0A

$1.49

SCREW, PAN (5X25) SCREW, PAN (5X32)

93500-05025-0A

$1.49

SCREW, PAN (5X32)

93500-05032-0A

$1.49

NUT, HEX. (8MM)

94002-08070-0S

$1.49

NUT, HEX. (8MM)

94030-08070

$1.49

MIRROR SET

88100-MJA-305

$81.49
