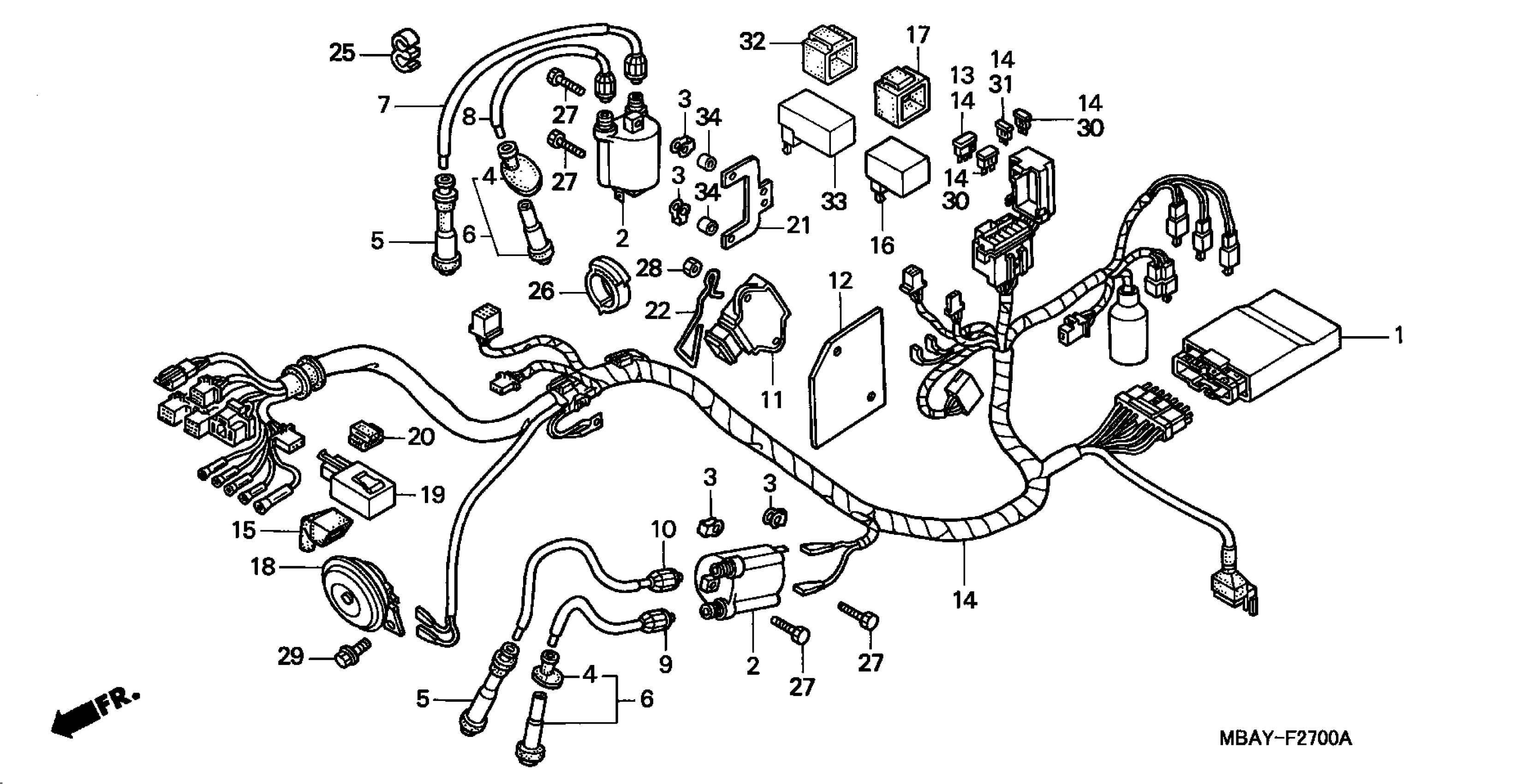

Honda VT750CA/A (00) SHADOW, JPN, VIN# JH2RC440-YM200001 WIRE HARNESS Diagram

#

Description
Price

1

MODULE, IGNITION CONTROL (CDI)

30410-MBA-611

Unavailable

2

COIL, IGNITION (TEC)

30510-MM8-003

$102.89

3

SPACER, IGNITION COIL

30520-ML7-000

$3.61

4

SEAL, PLUG CAP

30605-MF5-000

$18.62

5

CAP ASSY. This part replaces 30700-MW3-000.

30700-MW3-003

$14.49

6

CAP ASSY., NOISE SUPPRESSOR

30701-MF5-000

$31.64

7

WIRE, IGNITION (500MM) (L/RR) (TEC)

30753-MBA-611

$22.53

8

WIRE, R. FR. IGNITION This part replaces 30754-MBA-611.

30751-MEG-000

$13.22

9

WIRE, L. FR. IGNITION (L=430MM) This part replaces 30752-MBA-611.

30752-MCL-003

$15.15

10

WIRE, R. FR. IGNITION (L=670MM) This part replaces 30751-MBA-611.

30751-MCR-A61

$18.54

11

RECTIFIER ASSY., REGULATE This part replaces 31600-MV4-000.

31600-MV4-010

$257.34

11

RECTIFIER ASSY., REGULATE

31600-MV4-010

$257.34

12

SPACER, REGULATOR RECTIFIER

31605-MBA-000

Unavailable

13

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.92

14

WIRE HARNESS

32100-MBA-670

Unavailable

15

COVER, MAGNETIC SWITCH

35857-MK5-000

Unavailable

16

RELAY, FUEL CUT (SHINDENGEN)

36100-MN4-008

$87.61

17

SUSPENSION, FUEL CUT RELAY

36101-MB1-000

$6.23

18

HORN (HIGH)

38110-KV0-008

Unavailable

19

RELAY, TURN SIGNAL (TATEISHI)

38301-MF8-771

$95.21

20

SUSPENSION, TURN SIGNAL RELAY

38306-MF5-770

$5.34

21

STAY, IGNITION COIL

50172-MBA-000

Unavailable

22

GUIDE, REGULATE RECTIFIER

50323-MBA-000

$6.82

25

CLIP, HIGH TENSION CORD

90658-ZA0-930

$2.29

26

CLIP, WIRE HARNESS

90683-KJ2-003

$3.40

27

BOLT, HEX. (6X20)

92101-06020-4J

$1.28

28

NUT, HEX. (6MM)

94002-06080-0S

$1.21

29

BOLT, FLANGE (8X12)

95701-08012-07

$1.66

30

FUSE, MINI (10A)

98200-41000

$1.22

31

FUSE, MINI (15A)

98200-41500

$1.12
