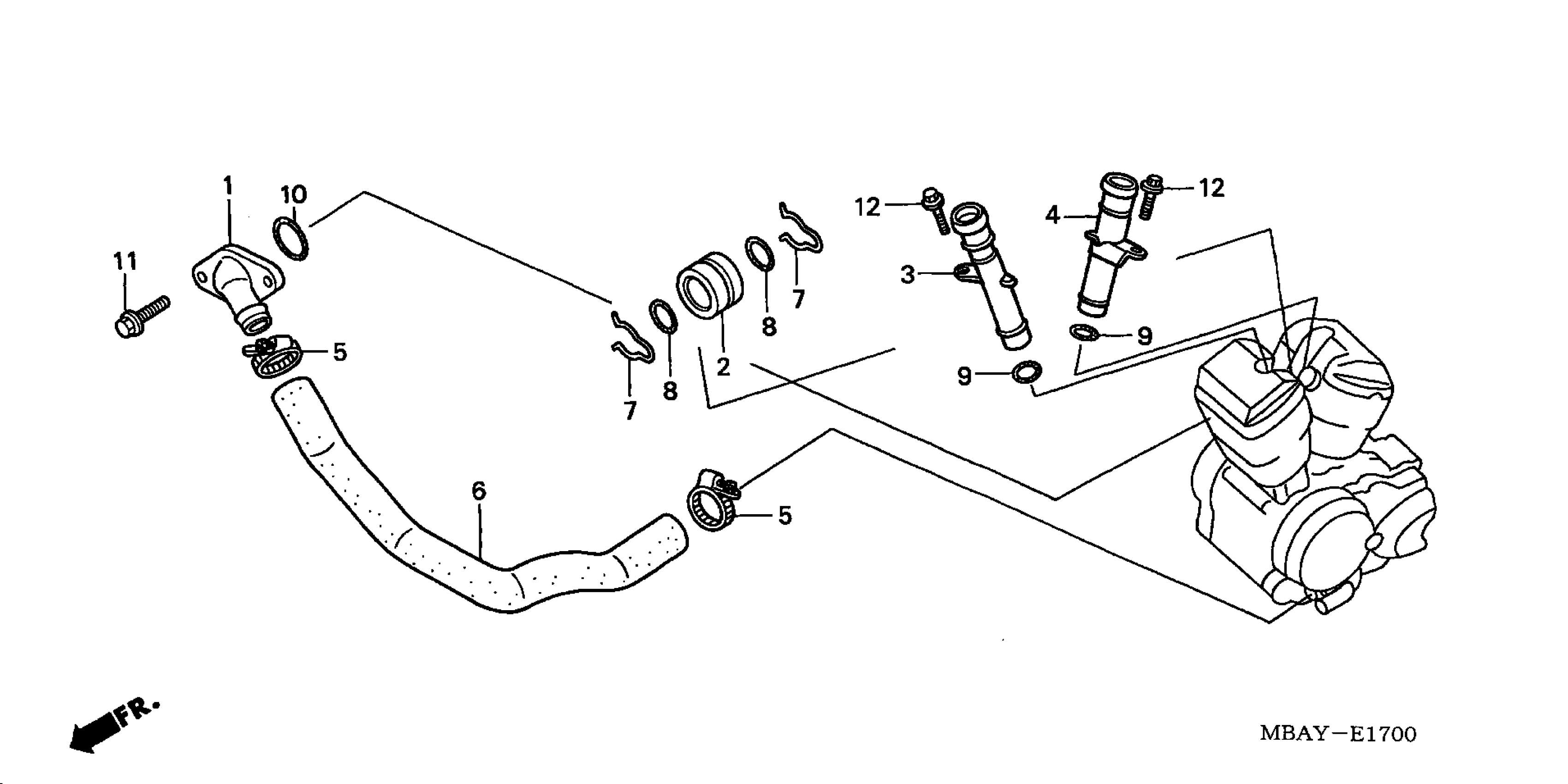

Honda VT750CA/A (00) SHADOW, JPN, VIN# JH2RC440-YM200001 WATER PIPE Diagram

#

Description
Price

1

JOINT, WATER HOSE

19503-MR1-000

$40.81

2

JOINT, WATER

19505-MAA-A00

$27.54

3

PIPE, FR. OUTLET WATER

19511-MN8-740

$18.26

4

PIPE, RR. OUTLET WATER

19512-MBA-000

$22.76

5

CLAMP, HOSE (24-32MM)

19516-ML7-691

$13.22

6

HOSE, MAIN WATER

19520-MBA-000

$20.15

7

CLIP, RING (22MM)

90601-MAA-A00

$3.86

8

O-RING (21.5X2)

91310-MB0-003

$2.71

9

SEAL, WATER PIPE (16MM)

91315-MN8-000

$4.12

10

O-RING

91356-169-003

$2.80

11

BOLT, FLANGE (6X20)

95701-06020-00

$1.63

12

BOLT, FLANGE (6X12)

96001-06012-00

$1.66
