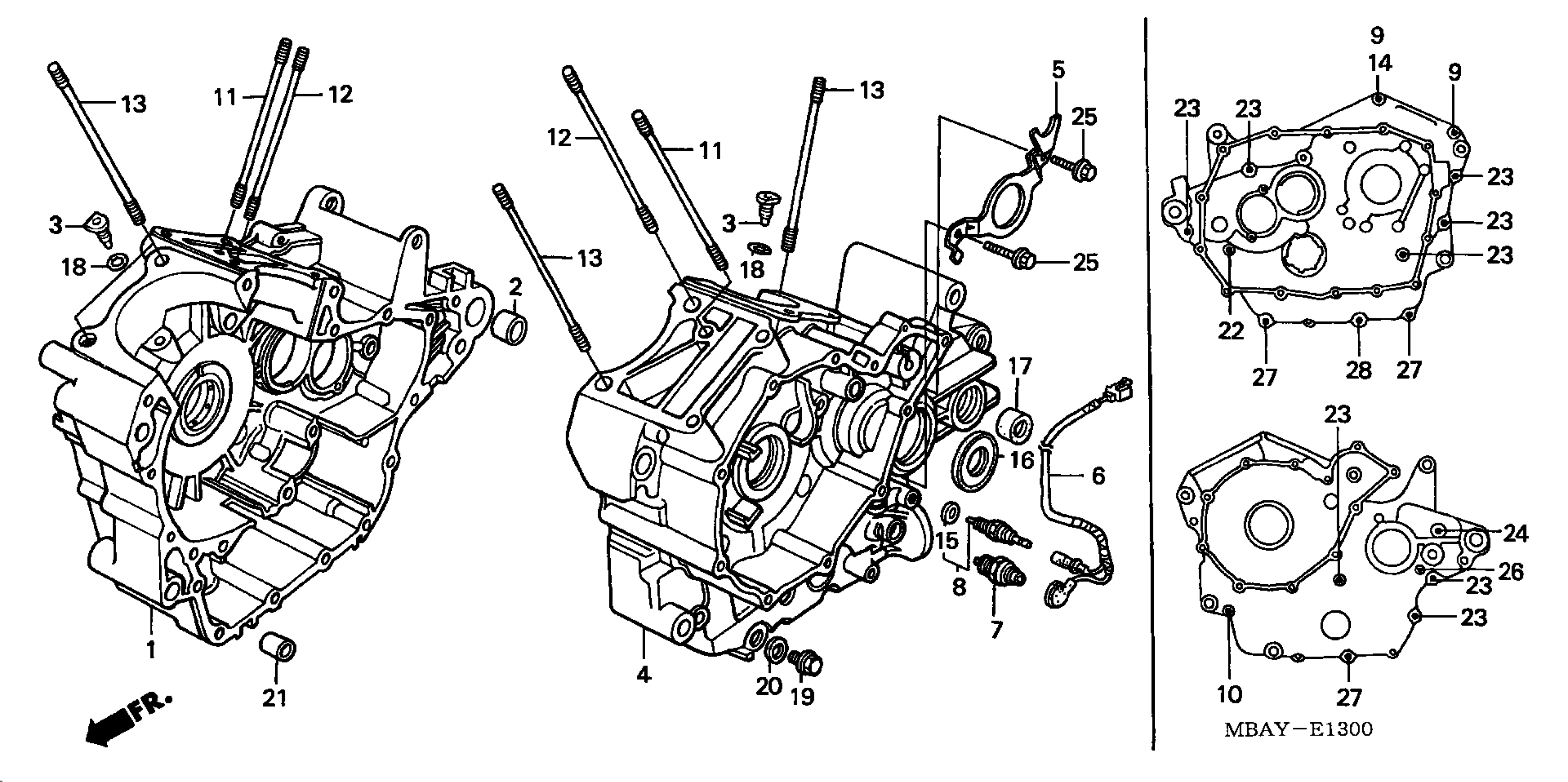

Honda VT750CA/A (00) SHADOW, JPN, VIN# JH2RC440-YM200001 CRANKCASE Diagram

CRANKCASE, R.

11100-MBA-600

Unavailable

COLLAR (23X20)

11105-MM9-000

$9.11

JET, OIL

11140-MBA-000

$13.40

CRANKCASE, L.

11200-MBA-600

Unavailable

PLATE, OIL SEAL SETTING

23531-MV1-000

$10.10

SUB-HARNESS A

32101-MBA-610

Unavailable

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

SWITCH ASSY., NEUTRAL (TEC)

35600-MAW-601

$23.73

BOLT, FLANGE (8X140)

90002-MR1-000

$5.95

BOLT, FLANGE (8X70) This part replaces 90008-KE9-000.

95801-08070-00

$1.89

BOLT, STUD (8X189)

90011-MZ8-B40

$11.39

BOLT, STUD (12X177)

90012-MZ8-B40

$22.46

BOLT, STUD (10X177)

90013-MZ8-B40

$17.15

WASHER, SEALING (8MM)

90442-MR1-770

$2.28

WASHER, NEUTRAL SWITCH

90443-KR0-000

$1.49

OIL SEAL (28X45X7)

91201-MV1-003

$7.32

OIL SEAL (12.5X25X8) (ARAI)

91204-425-003

$6.61

O-RING (5X1.7) (ARAI)

91305-MG7-003

$2.92

BOLT, DRAIN PLUG (14MM)

92800-14000

$3.67

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

PIN, DOWEL (14X20)

94301-14200

$2.28

BOLT, FLANGE (8X65)

95701-08065-00

$1.72

BOLT, FLANGE (8X80)

95701-08080-00

$1.64

BOLT, FLANGE (8X125) This part replaces 95701-08125-00.

95701-08125-07

$4.87

BOLT, FLANGE (8X125)

95701-08125-07

$4.87

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

BOLT, FLANGE (6X80)

96001-06080-00

$2.21
