Description

Price

1

HOUSING, AIR CLEANER

17210-MBA-710

$65.25

2

ELEMENT, AIR CLEANER This part replaces 17213-MBA-000.

17213-MBA-010

$23.88

2

ELEMENT, AIR CLEANER

17213-MBA-010

$23.88

3

SEAL, AIR CLEANER

17219-MBA-300

$9.07

4

COVER, AIR CLEANER This part replaces 17231-MBA-000.

17231-MBA-010

$114.75

4

COVER, AIR CLEANER

17231-MBA-010

$114.75

5

CHAMBER, AIR CLEANER This part replaces 17251-MBA-300.

17251-MBA-310

Unavailable

6

DUCT, AIR CLEANER This part replaces 17253-MBA-300.

17253-MBA-310

$35.27

6

DUCT, AIR CLEANER

17253-MBA-310

$35.27

7

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 17255-KC1-730.

95018-56200

$9.55

8

TUBE, SUB-CHAMBER CONNECTING

17255-MBA-300

$50.59

9

BAND, CHAMBER CONNECTING TUBE

17256-MBA-000

$12.74

10

COLLAR (4X12.5)

17257-MBA-000

$2.61

11

TUBE, R. AIR CLEANER CONNECTING

17258-MBA-300

$41.95

12

TUBE, L. AIR CLEANER CONNECTING

17259-MBA-300

$49.35

13

TUBE ASSY., DRAIN

17358-KR8-750

$7.96

14

TUBE, BREATHER

17552-MBA-000

$5.62

15

BOLT, SOCKET (5X12)

90089-KR0-000

$2.92

16

BOLT, FLANGE (6MM)

90104-KAB-000

$2.92

17

NUT, CLIP (5MM)

90312-MT3-000

$4.57

18

CLIP, TUBE (B16)

90643-MK3-781

$2.25

19

CLAMP B, TUBE (12.5MM)

90661-GHB-610

$1.62

20

SCREW, PAN (4X20)

93500-04020-0G

$1.49

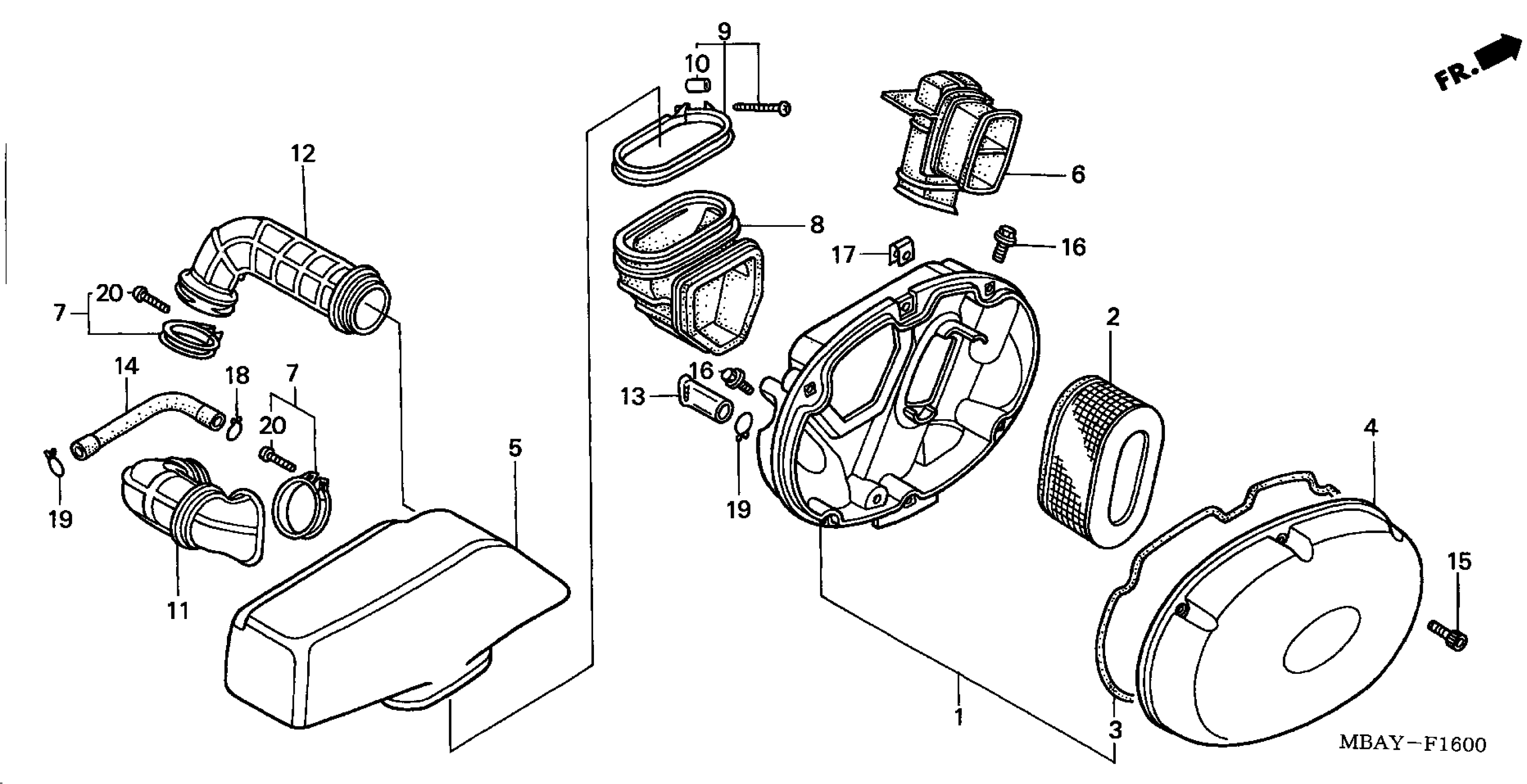

Honda VT750CA/A (00) SHADOW, JPN, VIN# JH2RC440-YM200001 AIR CLEANER Diagram
