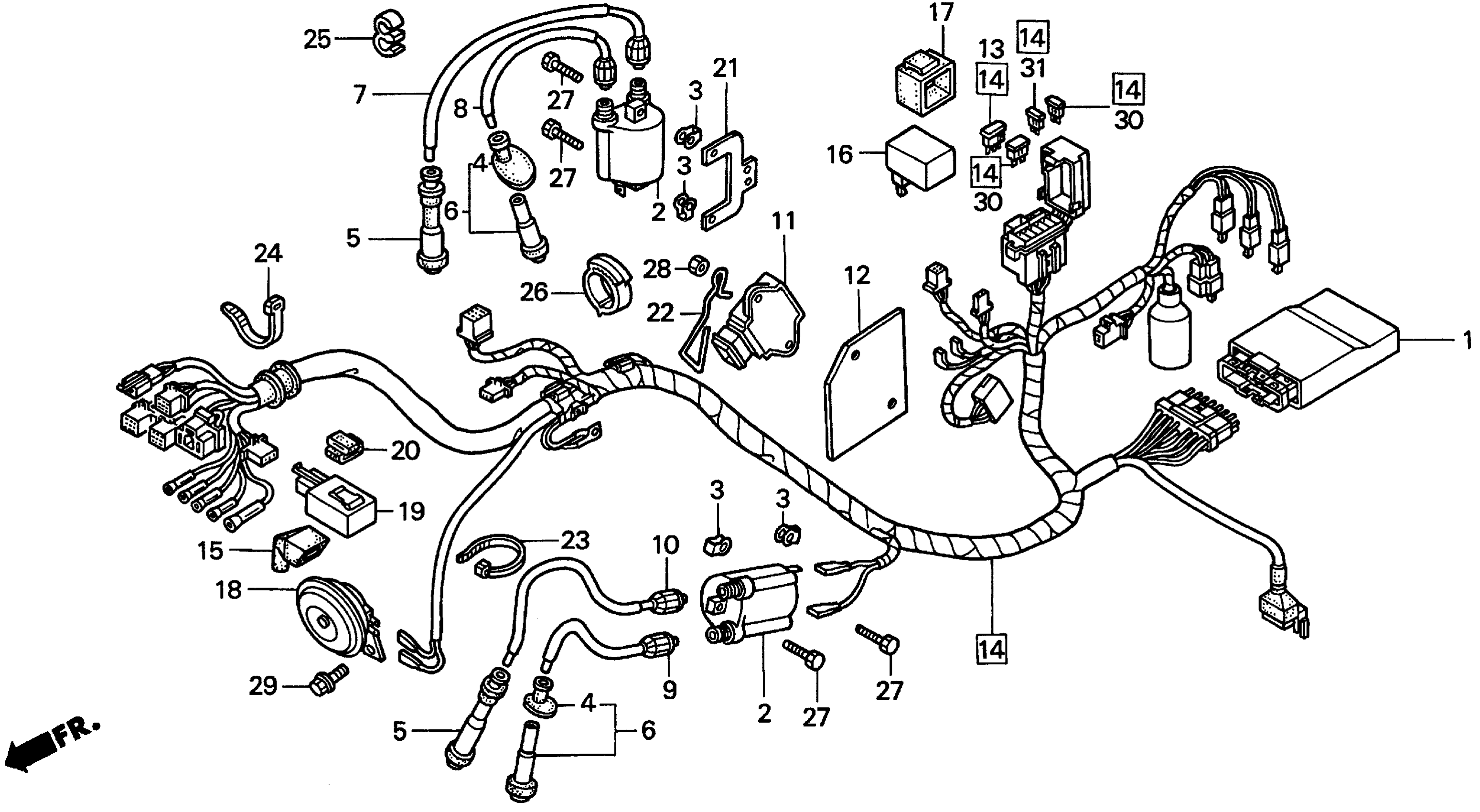

Honda VT750CA (99) SHADOWAMERICAN CLASSIC EDITION 750, JPN, VIN# JH2RC440-XM100001 WIRE HARNESS Diagram

MODULE, IGNITION CONTROL (CDI)

30410-MBA-611

Unavailable

COIL, IGNITION (TEC)

30510-MM8-003

$112.08

SPACER, IGNITION COIL

30520-ML7-000

$3.77

SEAL, PLUG CAP

30605-MF5-000

$20.15

CAP ASSY. This part replaces 30700-MW3-000.

30700-MW3-003

$14.34

CAP ASSY., NOISE SUPPRESSOR

30701-MF5-000

$36.46

WIRE, IGNITION (500MM) (L/RR) (TEC)

30753-MBA-611

$22.98

WIRE, R. FR. IGNITION This part replaces 30754-MBA-611.

30751-MEG-000

$14.31

WIRE, L. FR. IGNITION (L=430MM) This part replaces 30752-MBA-611.

30752-MCL-003

$16.50

WIRE, R. FR. IGNITION (L=670MM) This part replaces 30751-MBA-611.

30751-MCR-A61

$20.20

RECTIFIER ASSY., REGULATE This part replaces 31600-MV4-000.

31600-MV4-010

$278.54

RECTIFIER ASSY., REGULATE

31600-MV4-010

$278.54

SPACER, REGULATOR RECTIFIER

31605-MBA-000

Unavailable

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS

32100-MBA-670

Unavailable

COVER, MAGNETIC SWITCH

35857-MK5-000

Unavailable

RELAY, FUEL CUT (SHINDENGEN)

36100-MN4-008

$95.46

SUSPENSION, FUEL CUT RELAY

36101-MB1-000

$6.54

HORN (HIGH)

38110-KV0-008

Unavailable

RELAY, TURN SIGNAL (TATEISHI)

38301-MF8-771

$103.03

SUSPENSION, TURN SIGNAL RELAY

38306-MF5-770

$5.77

STAY, IGNITION COIL

50172-MBA-000

Unavailable

GUIDE, REGULATE RECTIFIER

50323-MBA-000

$7.38

BAND, WIRE

90651-KV6-003

$2.92

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

CLIP, HIGH TENSION CORD

90658-ZA0-930

$2.48

CLIP, WIRE HARNESS

90683-KJ2-003

$3.56

BOLT, HEX. (6X20)

92101-06020-4J

$1.49

NUT, HEX. (6MM)

94002-06080-0S

$1.49

BOLT, FLANGE (8X12)

95701-08012-07

$1.72

FUSE, MINI (10A)

98200-41000

$1.49

FUSE, MINI (15A)

98200-41500

$1.49
