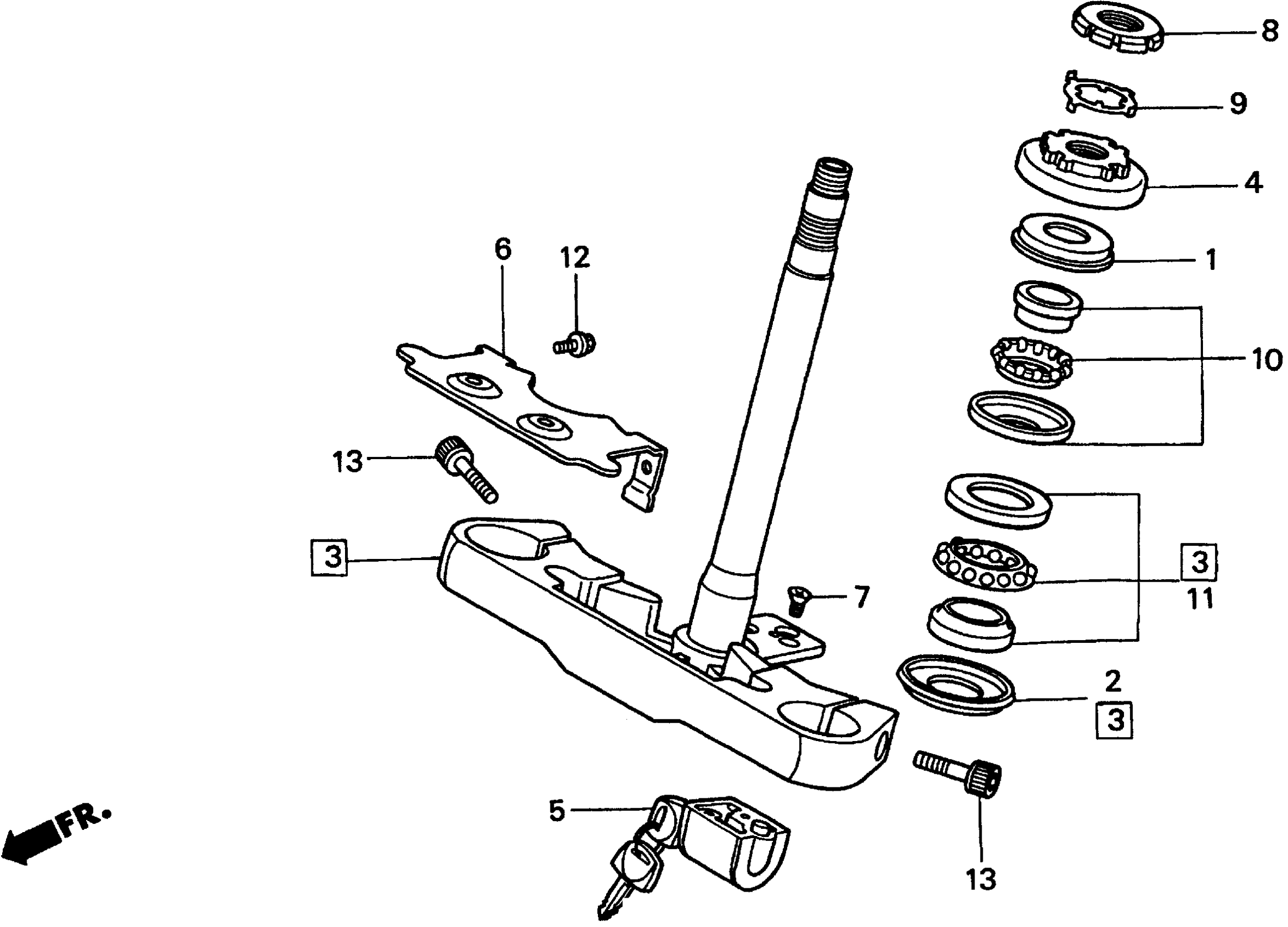

Honda VT750CA (99) SHADOWAMERICAN CLASSIC EDITION 750, JPN, VIN# JH2RC440-XM100001 STEERING STEM Diagram

DUST SEAL, STEERING HEAD (ARAI)

53213-MB4-771

$12.13

DUST SEAL, STEERING HEAD

53214-371-010

$13.33

STEM SUB-ASSY., STEERING

53219-MBA-670

Unavailable

THREAD, STEERING HEAD TOP

53220-422-000

$32.73

LOCK, HANDLEBAR

53600-086-007

$47.89

LOCK, HANDLEBAR This part replaces 53600-126-921.

53600-086-007

$47.89

COVER, HEADLIGHT

61305-MBA-000

$15.66

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

THREAD B, STEERING HEAD TOP

90302-425-830

$21.73

WASHER, LOCK

90506-425-830

$7.05

BEARING, HEAD PIPE (UPPER) (KOYO)

91015-KT8-005

$36.57

BEARING, HEAD PIPE (LOWER) (KOYO)

91016-KT8-005

$36.57

BOLT, FLANGE (6X12)

96001-06012-07

$1.72

BOLT, SOCKET (10X25)

96700-10025-10

$2.51
