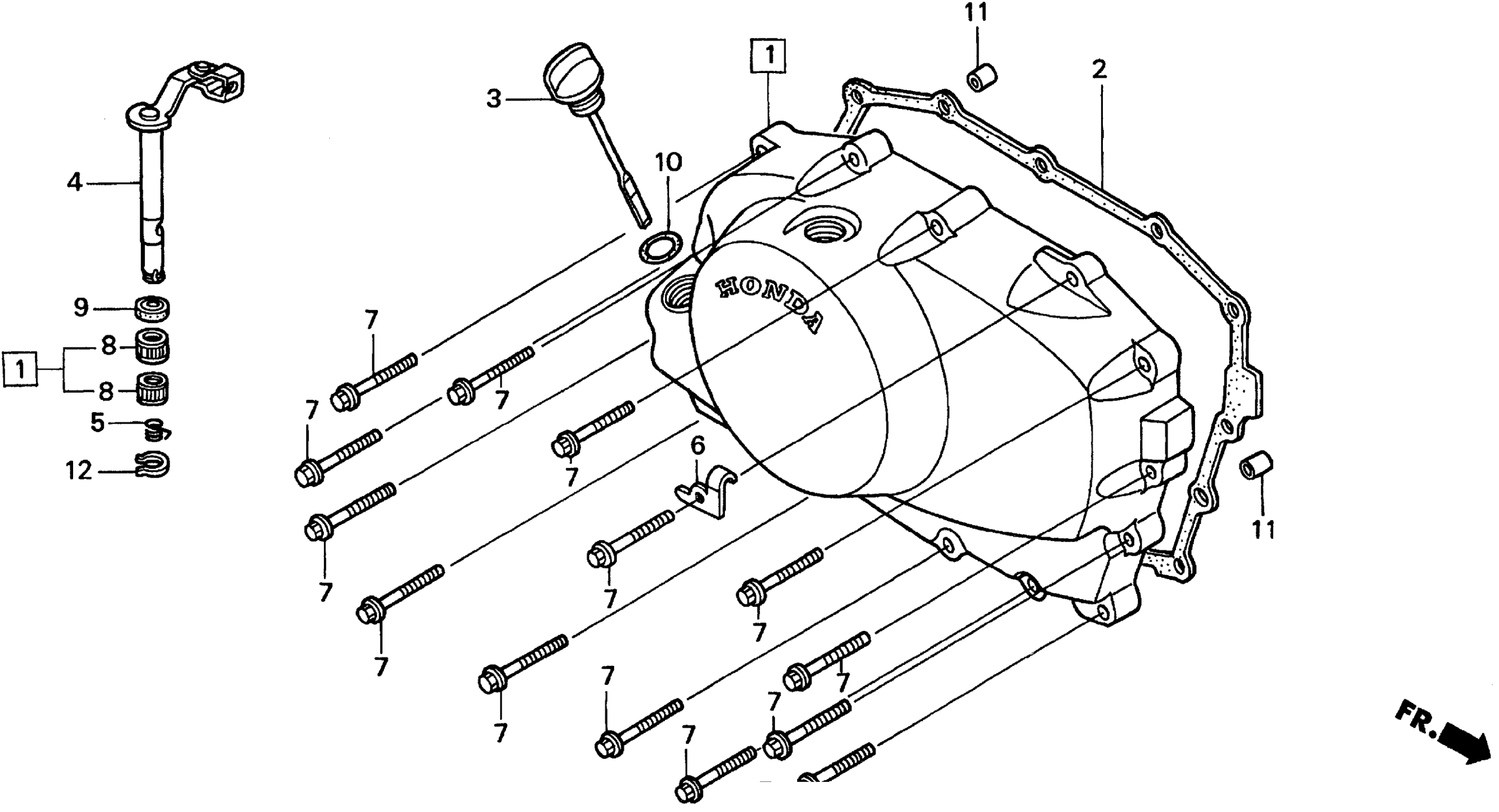

Honda VT750CA (99) SHADOWAMERICAN CLASSIC EDITION 750, JPN, VIN# JH2RC440-XM100001 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE This part replaces 11330-MBA-600.

11330-MBA-601

Unavailable

COVER, R. CRANKCASE

11330-MBA-601

Unavailable

GASKET, R. CRANKCASE COVER

11394-MV1-850

$21.05

DIPSTICK, OIL

15650-MBA-000

$19.54

LEVER, CLUTCH

22810-MR1-760

$55.56

SPRING, CLUTCH LEVER

22815-413-000

$3.08

RECEIVER, CLUTCH WIRE

22825-MEW-920

$7.70

RECEIVER, CLUTCH WIRE This part replaces 22825-MZ8-B40.

22825-MEW-920

$7.70

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$4.07

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$8.68

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$8.68

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$5.05

O-RING (21.5X3.2) This part replaces 91301-250-000.

91307-425-003

$2.59

O-RING (22X3.0)

91307-425-003

$2.59

PIN, DOWEL (8X14)

94301-08140

$2.25

CIRCLIP (OUTER) (10MM)

94510-10000

$1.49
