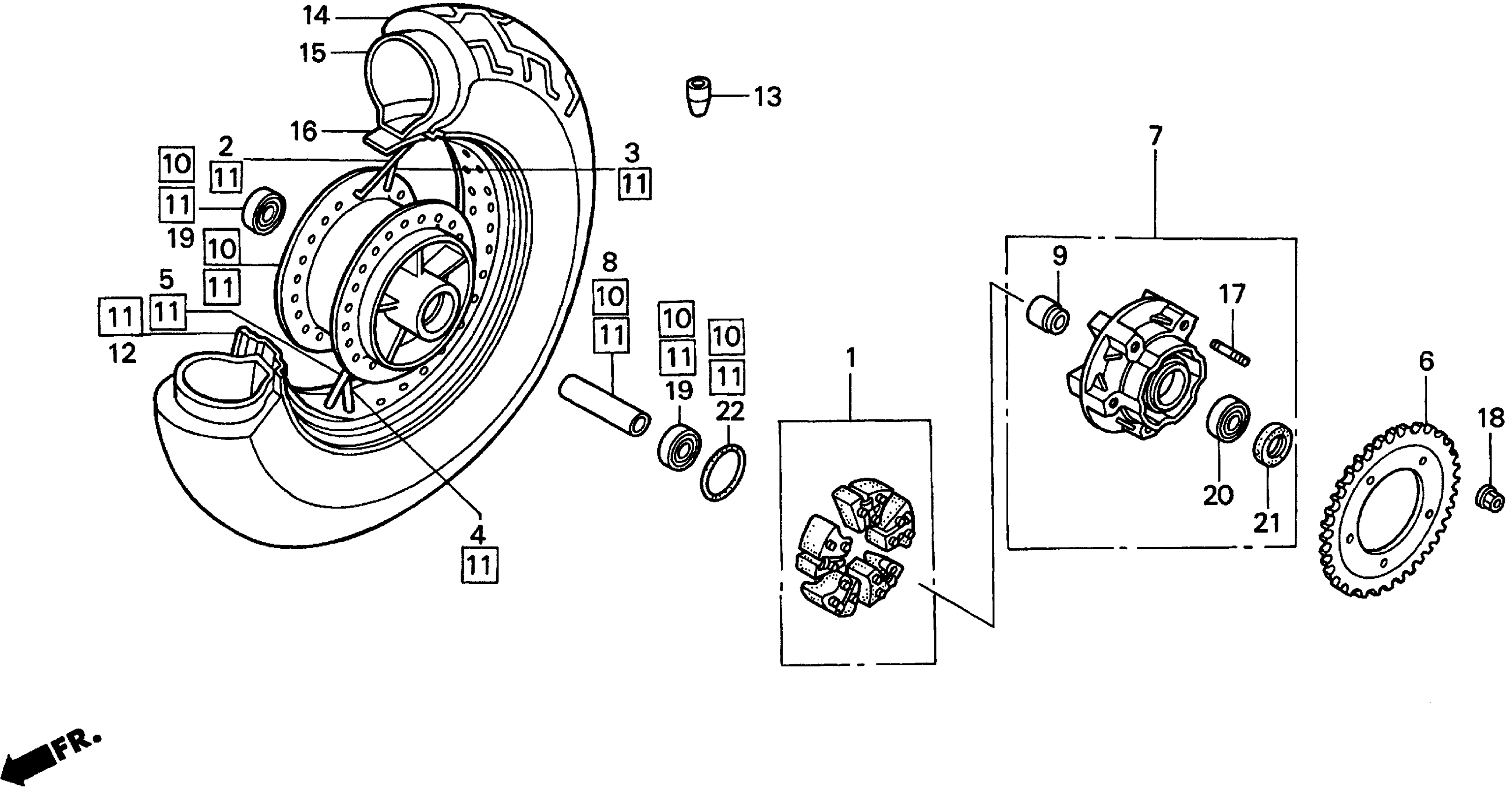

Honda VT750CA (99) SHADOWAMERICAN CLASSIC EDITION 750, JPN, VIN# JH2RC440-XM100001 REAR WHEEL Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-MBA-000

$27.48

2

SPOKE SET, RR. (A)

06420-MBA-000

$4.93

3

SPOKE SET, RR. (B)

06421-MBA-000

Unavailable

4

SPOKE SET, RR. (C)

06422-MBA-000

Unavailable

5

SPOKE SET, RR. (D)

06423-MBA-000

Unavailable

6

SPROCKET, FINAL DRIVEN (41T)

41201-MBA-000

$87.62

7

FLANGE SUB-ASSY., RR. DRIVEN

42615-MBA-000

$225.14

8

COLLAR, RR. AXLE DISTANCE

42620-MW0-010

$30.97

9

COLLAR B, RR. WHEEL DISTANCE

42625-MV4-000

$24.29

10

HUB SUB-ASSY., RR.

42635-MBA-000

$429.62

11

WHEEL SUB-ASSY., RR.

42650-MBA-000

Unavailable

12

RIM, RR. WHEEL This part replaces 42701-MBA-003.

42701-MBA-013

Unavailable

13

WEIGHT, BALANCE (15G)

42704-MEG-003

$7.52

13

WEIGHT, BALANCE (20G) This part replaces 42707-MR6-670.

42705-MEG-003

$7.52

13

WEIGHT, BALANCE (15G) This part replaces 42708-MR1-670.

42704-MEG-003

$7.52

14

TIRE, RR. (170/80-15) (M/C 77S) (BS) This part replaces 42711-MBA-003.

42711-MBA-013

$302.79

14

TIRE, RR. (170/80-15) (M/C 77S) (DUNLOP) This part replaces 42711-MBA-004.

42711-MBA-024

Unavailable

14

TIRE, RR. (170/80-15) (M/C 77S) (BS)

42711-MBA-013

$302.79

14

TIRE, RR. (170/80-15) (M/C 77S) (DUNLOP) This part replaces 42711-MBA-014.

42711-MBA-024

Unavailable

15

TUBE, TIRE (DUNLOP) This part replaces 42712-MR1-671.

42712-MR1-672

$37.21

15

TUBE, TIRE (DUNLOP)

42712-MR1-672

$37.21

16

FLAP, TIRE (BS)

42713-MR1-671

$6.82

16

FLAP, TIRE (DUNLOP)

42713-MR1-672

$6.82

17

BOLT 2, STUD (12X25)

90102-MAS-000

$3.73

18

NUT, FLANGE (12MM)

90306-KF0-003

Unavailable

19

BEARING, RADIAL BALL (6204UU) This part replaces 91052-MZ2-A21.

91052-MAE-004

$24.70

20

BEARING, RADIAL BALL (62/22)

91073-MV4-782

$11.88

21

DUST SEAL (30X50X7.5)

91252-MAE-003

$15.24

22

O-RING (61X2)

91302-MA6-003

$4.81
