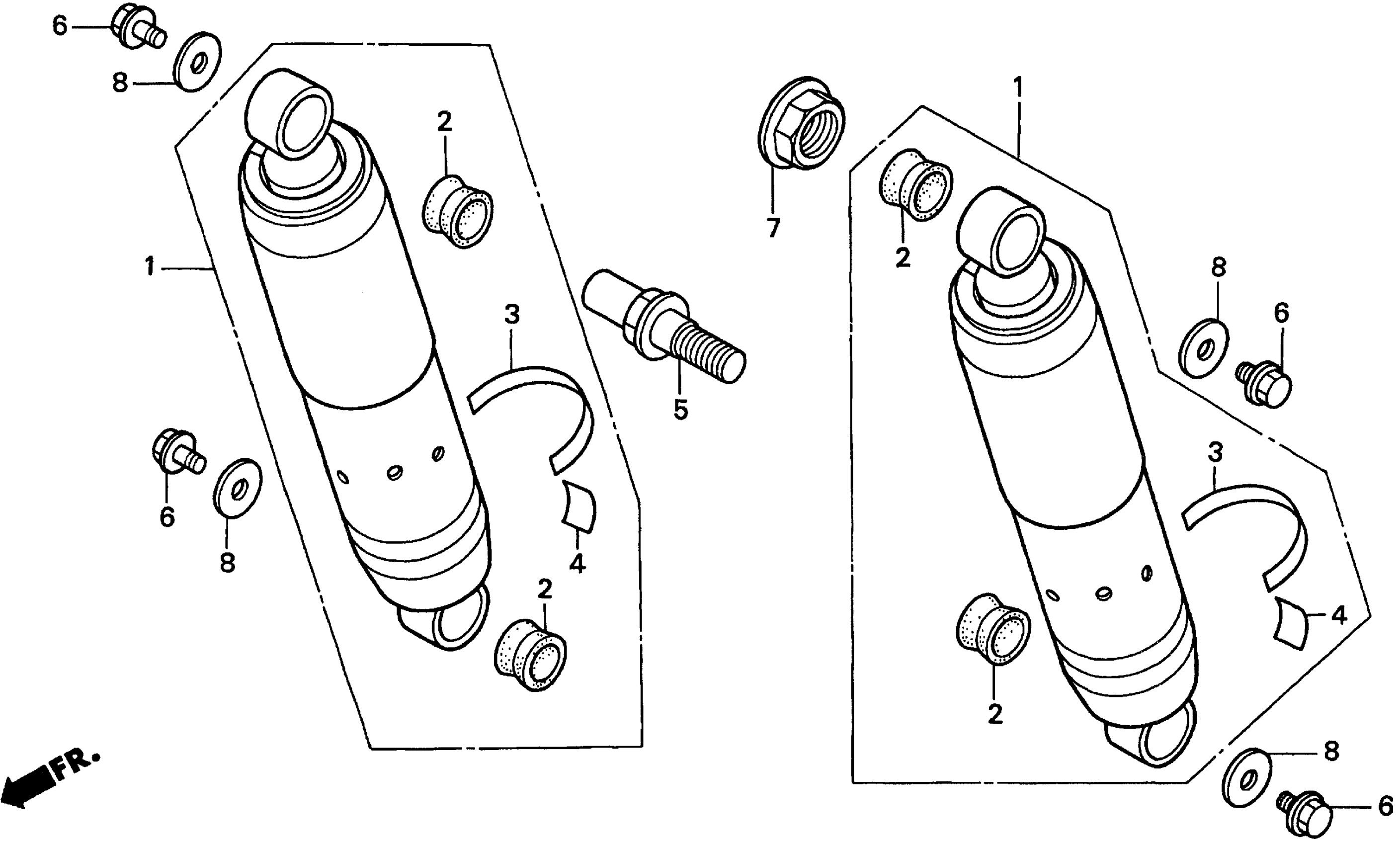

Honda VT750CA (99) SHADOWAMERICAN CLASSIC EDITION 750, JPN, VIN# JH2RC440-XM100001 REAR SHOCK ABSORBER Diagram

#

Description

Price

1

SHOCK ABSORBER ASSY., RR.

52400-MBA-611

Unavailable

2

BUSH, RR. SHOCK ABSORBER

52489-MJ1-004

$5.80

3

LABEL, RR. DAMPER

52496-MJ1-004

$6.74

4

LABEL, POSITION

52497-MBA-611

$3.01

5

BOLT, RR. SHOCK

90107-MBA-003

$20.62

6

BOLT, SPECIAL FLANGE (8X12)

90125-KR3-000

$3.62

7

NUT, STEERING STEM

90304-MK3-000

$14.88

8

WASHER (8.5X26)

90504-ME4-000

$3.03
