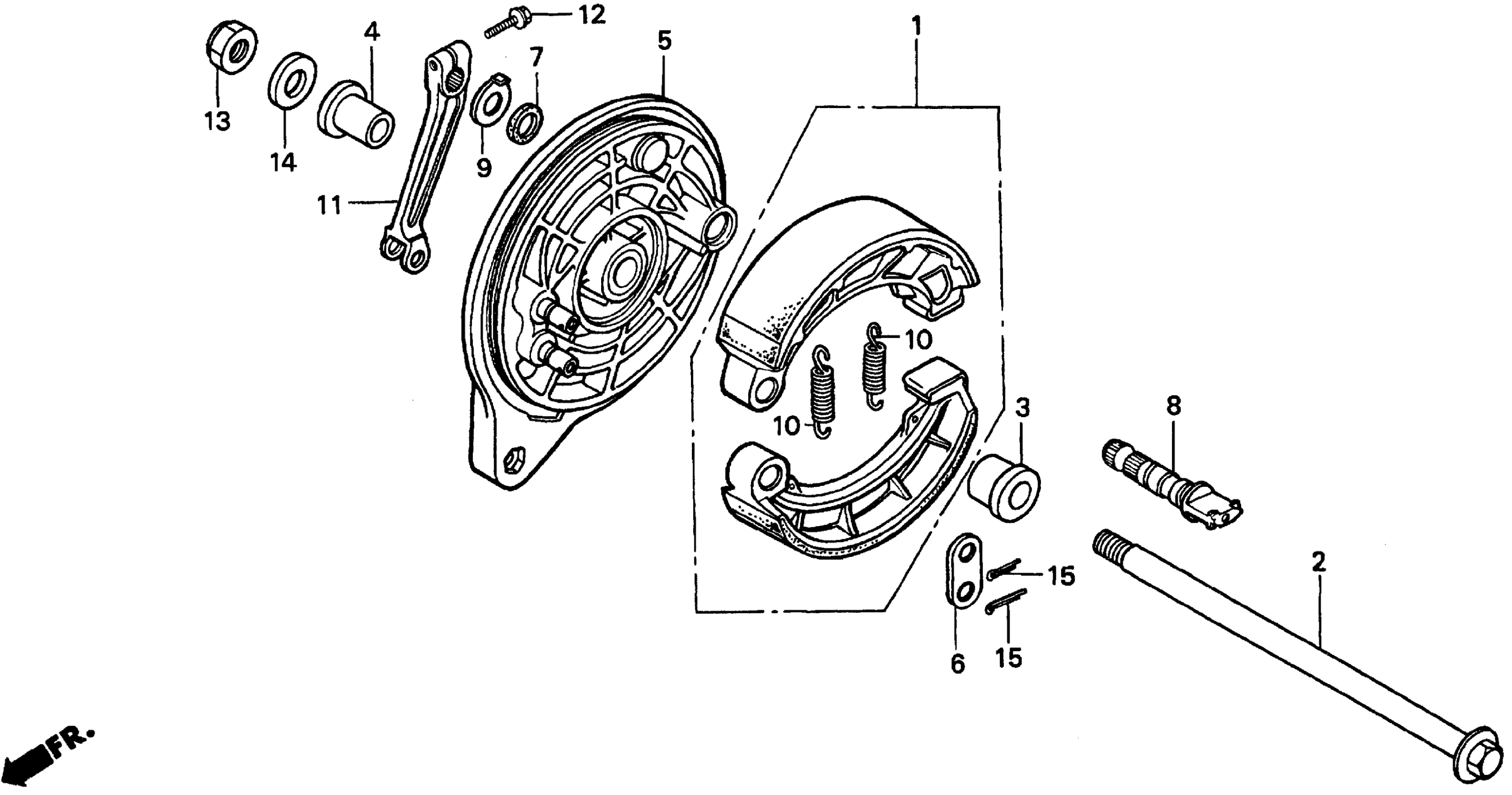

Honda VT750CA (99) SHADOWAMERICAN CLASSIC EDITION 750, JPN, VIN# JH2RC440-XM100001 REAR BRAKE PANEL Diagram

SHOE KIT, BRAKE

06430-MM8-881

$55.16

AXLE, RR. WHEEL

42301-ML7-000

$100.43

COLLAR, L. RR. WHEEL SIDE

42311-MBA-000

Unavailable

COLLAR, RR. WHEEL SIDE

42311-MG5-670

$16.43

PANEL, RR.

43100-MJ1-832

Unavailable

WASHER, ANCHOR PIN

43102-319-000

$6.21

DUST SEAL, BRAKE CAM

43134-300-000

$2.09

CAM, RR. BRAKE

43141-MB0-010

$41.60

INDICATOR, RR. BRAKE

43145-ME5-000

$5.84

SPRING, RR. BRAKE SHOE

43151-346-000

$5.90

ARM, RR. BRAKE

43410-MJ1-000

$57.50

BOLT, FLANGE (8X25)

90107-MZ5-000

$4.65

NUT, U (18MM)

90305-KZ4-891

$15.83

WASHER (18X32X2)

90401-MBA-000

$4.65

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

PIN, SPLIT (2.5X30)

94201-25300

$1.49
