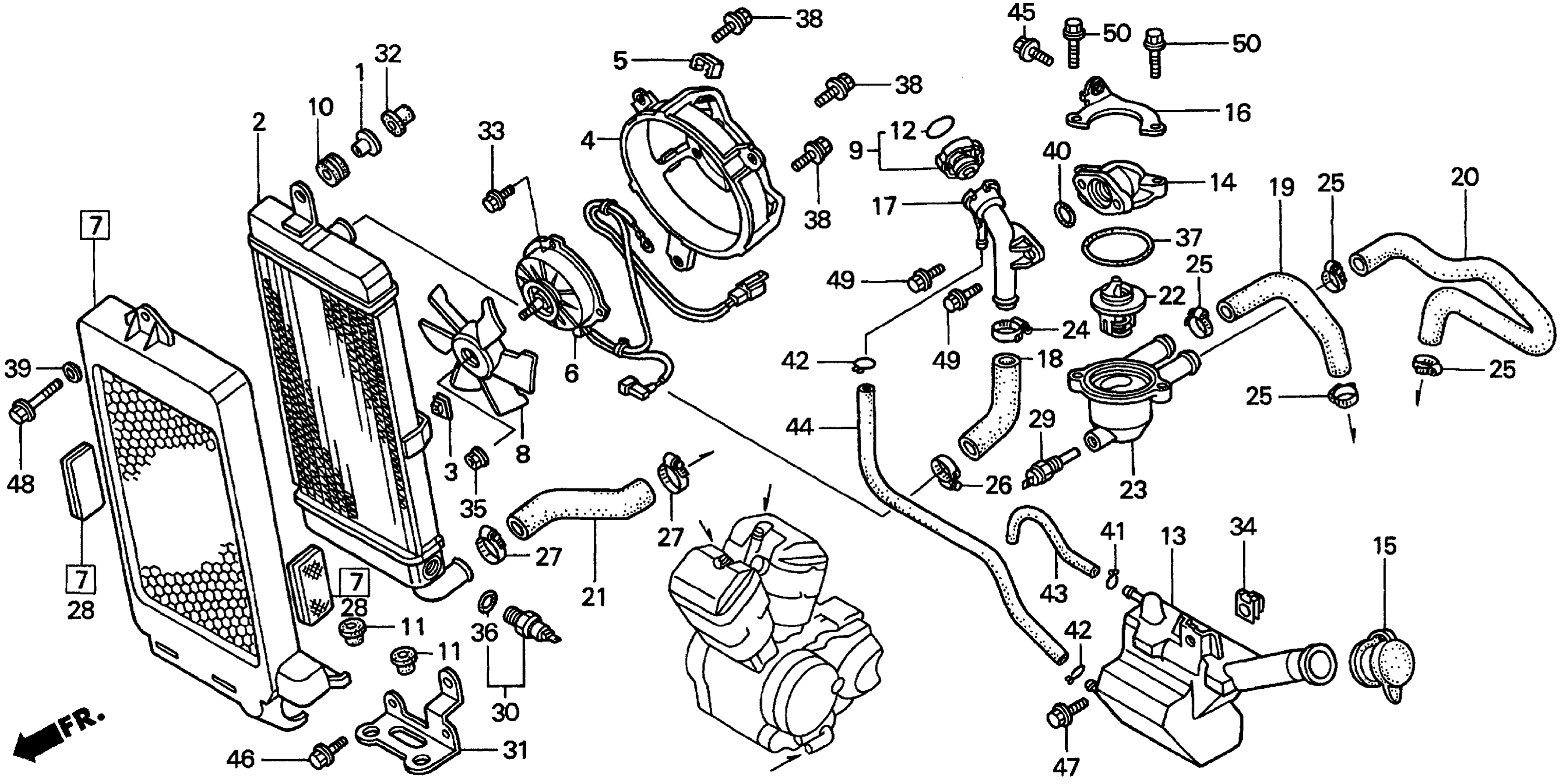

Honda VT750CA (99) SHADOWAMERICAN CLASSIC EDITION 750, JPN, VIN# JH2RC440-XM100001 RADIATOR Diagram

COLLAR, AIR CLEANER SETTING

17216-HA7-670

$6.16

RADIATOR (TOYO) This part replaces 19010-MBA-003.

19010-MBA-013

$600.21

RADIATOR (TOYO)

19010-MBA-013

$600.21

NUT, SETTING

19014-KEA-003

$3.10

SHROUD (COO) This part replaces 19015-MBA-003.

19015-MBA-305

$53.77

CLIP, HARNESS (TOYO)

19017-PK1-004

$9.64

MOTOR ASSY., FAN

19030-MBA-610

Unavailable

GRILLE, RADIATOR

19035-MBA-670

Unavailable

FAN, COOLING (TOYO)

19040-MF5-751

$63.21

CAP, RADIATOR This part replaces 19045-GBF-770.

19045-MZ1-621

$50.26

CAP, RADIATOR

19045-MZ1-621

$50.26

RUBBER, RADIATOR MOUNTING

19051-KA3-710

$5.05

RUBBER, RADIATOR MOUNTING

19051-MB2-000

$4.53

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE) This part replaces 19055-MV9-921.

19055-MV9-881

$9.22

TANK ASSY., RESERVE This part replaces 19101-MBA-000.

19101-MBA-010

$29.98

CAP, THERMOSTAT

19103-MBA-000

$49.21

CAP, RESERVE TANK

19104-MB0-700

$12.16

STAY, THERMOSTAT CASE

19105-MBA-000

$8.25

NECK, FILLER

19106-MM8-000

$58.79

HOSE, RADIATOR (UPPER)

19107-MBA-000

$12.71

HOSE, FR. OUTLET WATER

19108-MBA-000

$13.48

HOSE, RR. OUTLET WATER

19109-MBA-000

$30.34

HOSE, RADIATOR (LOWER)

19115-MBA-000

$24.36

THERMOSTAT ASSY.

19300-KE8-000

$61.93

CASE, THERMOSTAT

19311-MBA-000

$65.11

CLAMP, WATER HOSE

19505-ML3-770

$7.08

CLAMP B, WATER HOSE

19506-KS6-700

$7.50

CLAMP, RADIATOR HOSE

19509-MM5-003

$13.58

CLAMP, HOSE (24-32MM)

19516-ML7-691

$14.40

REFLECTOR SET, FR. REFLEX

33745-MBA-670

$28.16

SWITCH ASSY., THERMO

37760-MAV-003

$65.07

SWITCH ASSY., THERMO This part replaces 37760-MT2-003.

37760-MR1-003

$71.91

STAY, RADIATOR

50175-MBA-000

$17.11

NUT, COWL SETTING (6MM)

90114-KAS-900

$5.04

BOLT, FLANGE (5X10)

90196-MN5-000

$2.23

NUT, CLIP (6MM)

90305-GK8-000

$2.39

NUT, SERRATE (5MM)

90315-MK3-003

$2.33

O-RING (13.5X1.4)

91307-PH7-660

$2.83

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.83

O-RING (47.5X2)

91311-KE8-000

$2.39

BOLT-WASHER (6X16)

90120-KCR-003

$4.39

WASHER, PLAIN (6MM)

94101-06700

$1.49

O-RING (23X2.4)

94608-30000

$1.49

CLIP, TUBE (C9)

95002-50000

$1.49

CLIP, TUBE (C11)

95002-70000

$1.56

BULK HOSE, VACUUM (5X3000) (5X170)

95005-50003-30M

$20.85

BULK HOSE, VACUUM (7X3000) (7X680)

95005-70003-30M

$23.45

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X14)

95701-06014-07

$1.49

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

BOLT, FLANGE (6X40)

95701-06040-07

$1.80

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
