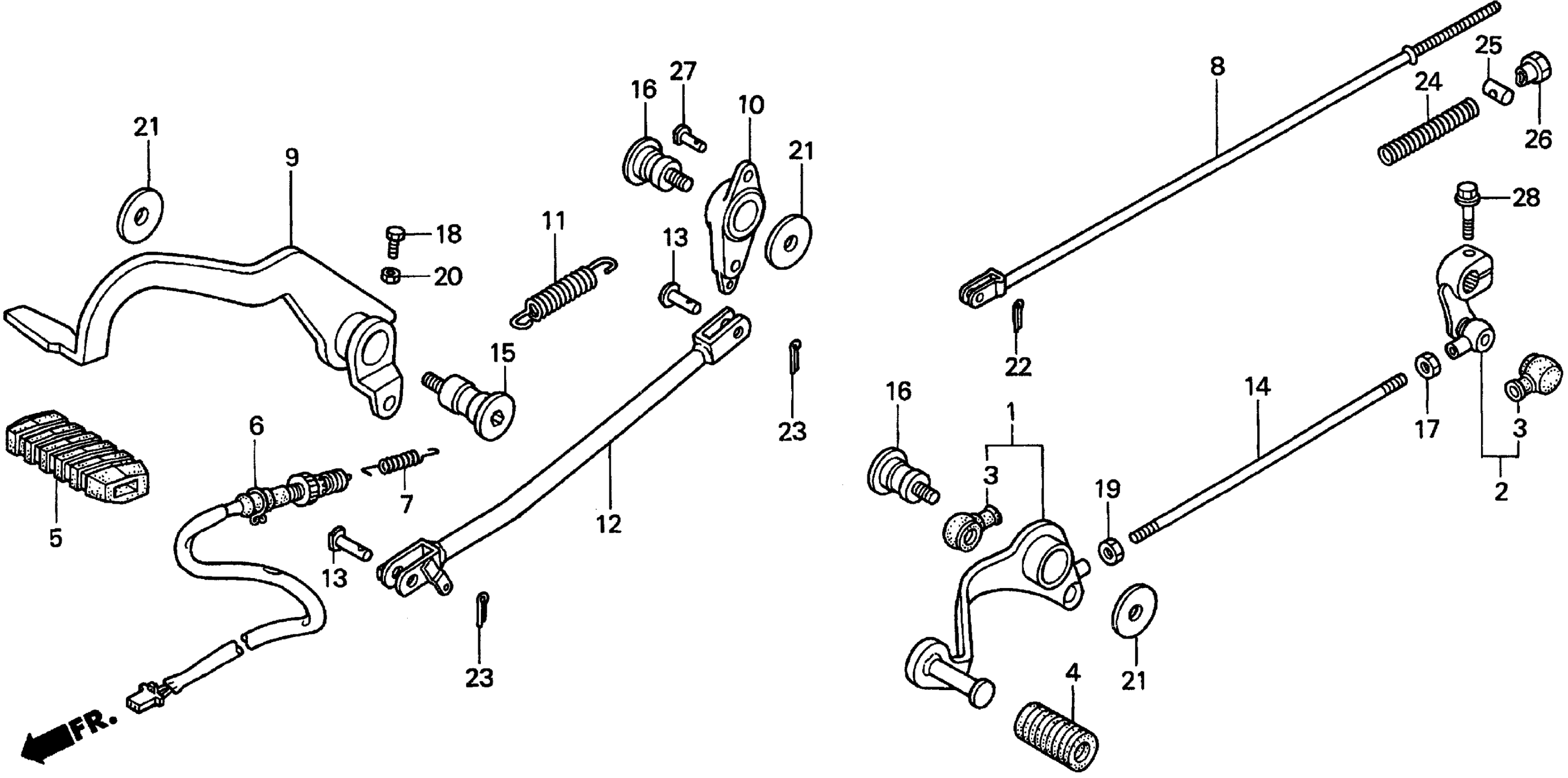

Honda VT750CA (99) SHADOWAMERICAN CLASSIC EDITION 750, JPN, VIN# JH2RC440-XM100001 PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24705-MBA-670

Unavailable

2

ARM, CHANGE

24710-MBA-670

Unavailable

3

COVER, DUST

24724-422-000

$6.68

4

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.39

5

RUBBER, PEDAL

24781-MBA-000

$7.70

6

SWITCH ASSY., RR. STOP

35350-MBA-610

$19.51

7

SPRING, STOP SWITCH

35357-GS3-000

Unavailable

8

ROD, RR. BRAKE

43451-MBA-000

$19.09

9

PEDAL, RR. BRAKE

46501-MBA-670

Unavailable

10

ARM, RR. BRAKE MIDDLE

46510-MBA-300

Unavailable

11

SPRING, BRAKE PEDAL

46511-KR6-000

$5.40

12

ROD, RR. BRAKE MIDDLE

46540-MBA-000

Unavailable

13

PIN, MIDDLE ROD JOINT

46545-MBA-000

$6.14

14

BOLT, TIE ROD

90065-MBA-000

$11.53

15

BOLT A, PEDAL PIVOT

90115-MBA-000

Unavailable

16

BOLT B, PEDAL PIVOT

90116-MBA-000

$20.97

17

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

90201-700-000

$1.49

18

BOLT, HEX. (6X16)

92101-06016-0G

$1.49

19

NUT, HEX. (6MM)

94001-06020-0S

$1.49

20

NUT, HEX. (6MM)

94002-06070-0S

$1.49

21

WASHER, PLAIN (10MM)

94103-10700

$1.49

22

PIN C, JOINT

95015-53000

$3.06

23

PIN, SPLIT (2.0X15)

94201-20150

$1.49

24

SPRING A, BRAKE ROD

95014-73100

$1.49

25

JOINT B, BRAKE ARM

95015-32001

$1.49

26

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

27

PIN, SPLIT (2.0X12)

94201-20120

$1.49

28

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
