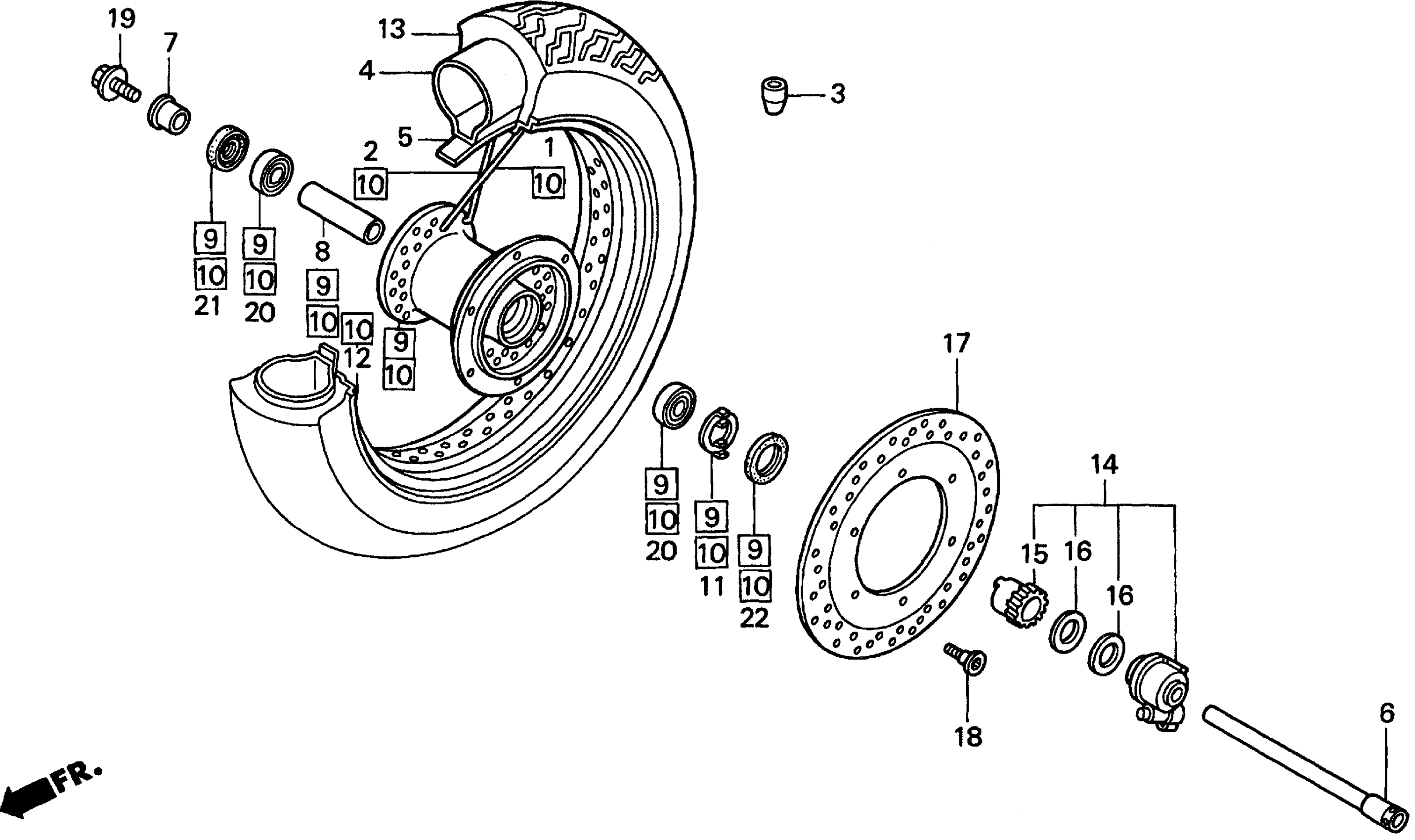

Honda VT750CA (99) SHADOWAMERICAN CLASSIC EDITION 750, JPN, VIN# JH2RC440-XM100001 FRONT WHEEL Diagram

#

Description
Price

1

SPOKE SET (A)

06440-MBA-000

$4.93

2

SPOKE SET (B)

06441-MBA-000

$4.93

3

WEIGHT, BALANCE (15G)

42704-MEG-003

$7.52

3

WEIGHT, BALANCE (20G) This part replaces 42707-MR6-670.

42705-MEG-003

$7.52

3

WEIGHT, BALANCE (15G) This part replaces 42708-MR1-670.

42704-MEG-003

$7.52

4

TUBE, TIRE (BS)

44712-MBA-003

$22.86

4

TUBE, TIRE (BS) This part replaces 44712-MBA-004.

44712-MBA-003

$22.86

5

FLAP, TIRE (BS)

42713-MY1-003

$6.70

5

FLAP, TIRE (DUNLOP)

44713-MAV-004

$6.15

6

AXLE, FR. WHEEL

44301-MAH-671

$59.77

7

COLLAR, FR. WHEEL SIDE

44311-MM8-000

$17.20

8

COLLAR, FR. AXLE DISTANCE

44620-MBC-000

$15.41

9

HUB SUB-ASSY., FR. This part replaces 44635-MBA-000.

44635-MBA-010

$224.61

10

WHEEL SUB-ASSY., FR. This part replaces 44650-MBA-000.

44650-MBA-020

Unavailable

10

WHEEL SUB-ASSY., FR. This part replaces 44650-MBA-010.

44650-MBA-020

Unavailable

10

WHEEL SUB-ASSY., FR.

44650-MBA-020

Unavailable

11

RETAINER, GEAR BOX

44680-ML7-000

$4.73

12

RIM, FR. WHEEL (DAIDO) This part replaces 44701-MBA-003.

44701-MBA-023

$103.36

12

RIM, FR. WHEEL (DAIDO) This part replaces 44701-MBA-013.

44701-MBA-023

$103.36

12

RIM, FR. WHEEL (DAIDO)

44701-MBA-023

$103.36

13

TIRE, FR. (120/90-17) (M/C 64S) (BS) This part replaces 44711-MBA-003.

44711-MBA-013

$166.16

13

TIRE, FR. (120/90-17) (M/C 65S) (DUNLOP) This part replaces 44711-MBA-004.

44711-MBA-014

Unavailable

13

TIRE, FR. (120/90-17) (M/C 64S) (BS)

44711-MBA-013

$166.16

14

BOX ASSY., SPEEDOMETER GEAR

44800-MR1-003

$100.08

15

GEAR, SPEEDOMETER

44806-MR1-003

$27.93

16

WASHER, SPEEDOMETER GEAR

44809-ML7-003

$2.80

17

DISK, FR. BRAKE This part replaces 45351-MBA-000.

45351-MGR-670

$390.49

18

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$5.78

18

BOLT, DISK (8X24)

90105-MV9-003

$5.78

19

BOLT, FR. AXLE

90305-ML7-000

$9.03

20

BEARING, RADIAL BALL (6204UU) This part replaces 91052-MBC-004.

91052-MAE-004

$24.70

21

OIL SEAL (28X47.2X7) (ARAI) This part replaces 91252-MC4-003.

91252-MC4-013

$6.49

21

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.49

22

DUST SEAL (45X55X5) (ARAI)

91258-ML7-003

$7.77
