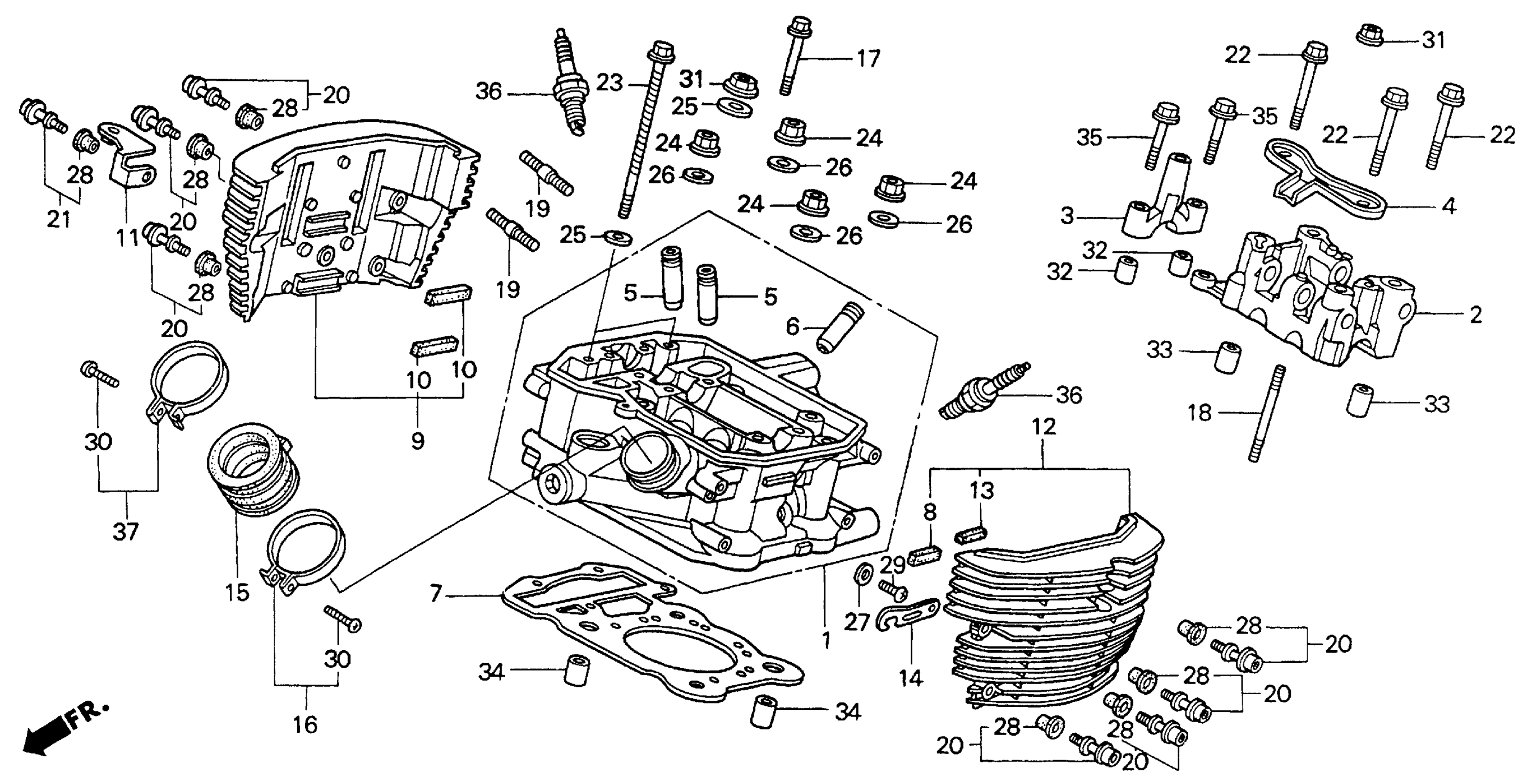

Honda VT750CA (99) SHADOWAMERICAN CLASSIC EDITION 750, JPN, VIN# JH2RC440-XM100001 CYLINDER HEAD (RR.) Diagram

#

Description
Price

1

CYLINDER HEAD, RR.

12220-MBA-670

Unavailable

2

HOLDER, CAMSHAFT

12223-MV1-000

Unavailable

3

HOLDER, SIDE CAMSHAFT

12225-MF5-000

$47.69

4

PLATE, VALVE OIL GUIDE

12226-MF5-000

$18.26

5

GUIDE, IN. VALVE (OS)

12231-MF5-305

$20.36

6

GUIDE, EX. VALVE (OS)

12241-MF5-315

$18.72

7

GASKET, CYLINDER HEAD

12251-MN8-911

$32.76

8

RUBBER A, SEAT

12262-MBA-300

Unavailable

9

FIN, FR. CYLINDER HEAD (L/R)(RR)

12270-MBA-600

Unavailable

10

RUBBER B, SEAT

12272-MBA-300

Unavailable

11

STAY, RR. AIR CLEANER MOUNT

12285-MBA-000

$7.94

12

FIN, L. RR. CYLINDER HEAD

12290-MBA-600

Unavailable

13

RUBBER C, SEAT

12292-MBA-300

$1.93

14

STAY, CHOKE CABLE

12295-MBA-000

$5.64

15

INSULATOR, CARBURETOR

16211-MAW-600

$23.86

16

BAND A, INSULATOR

16218-MN8-750

$8.69

17

BOLT, FLANGE (6X70) (NSHF)

90004-GHB-770

$5.07

18

BOLT, STUD (8X50)

90013-MF5-000

$4.52

19

BOLT, STUD (8X25)

90016-MBA-000

$4.09

20

BOLT ASSY., SPECIAL (6X22)

90020-MBA-600

Unavailable

21

BOLT ASSY., SPECIAL (6X25)

90030-MBA-000

$8.26

22

BOLT, FLANGE (8X68)

90066-MC7-000

$3.68

23

BOLT, CYLINDER (8X187)

90081-MZ8-H01

$9.39

24

NUT, FLANGE (10MM) This part replaces 90204-634-000.

94050-10000

$1.41

24

NUT, FLANGE (10MM) This part replaces 94030-10000-07.

94050-10000

$1.41

24

NUT, FLANGE (10MM)

94050-10000

$1.41

25

WASHER (8MM)

90401-MZ8-H00

$2.29

26

WASHER (10MM)

90410-HC4-000

$3.55

27

WASHER, SEALING (5MM)

90452-323-000

$1.52

28

RUBBER, MOUNTING

90543-MBA-000

$2.80

29

SCREW, PAN (5X8)

93500-05008-0A

$0.80

30

SCREW, PAN (5X25)

93500-05025-0G

$0.68

31

NUT, FLANGE (8MM)

94050-08080

$0.86

32

PIN, DOWEL (8X14)

94301-08140

$2.04

33

PIN, DOWEL (10X16)

94301-10160

$2.24

34

PIN, DOWEL (14X20)

94301-14200

$2.25

35

BOLT, FLANGE (6X40)

96001-06040-00

$1.97

36

SPARK PLUG (DPR7EA-9) (NGK) | (Optional).

98069-57916

$2.00

36

SPARK PLUG (X22EPR-U9) (DENSO) | (Optional).

98069-57926

$2.25

36

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.00

36

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.25

36

SPARK PLUG (DPR9EA-9) (NGK) | (Optional).

98069-59916

$2.00

36

SPARK PLUG (X27EPR-U9) (DENSO) | (Optional).

98069-59926

$2.25

37

BAND A, INSULATOR

16218-MN8-750
