Description

Price

1

SPROCKET, OIL PUMP DRIVE (31T)

15131-MBA-003

$51.62

2

CLUTCH (OUTER)

22100-MBA-000

$412.44

3

COLLAR, PRIMARY DRIVEN

22116-MBA-000

$41.56

4

CENTER, CLUTCH (24T)

22120-MBA-000

$87.83

5

SEAT, JUDDER SPRING

22125-435-000

$9.15

6

DISK, CLUTCH FRICTION

22201-MAV-000

$13.04

7

DISK B, CLUTCH FRICTION

22202-MAE-000

$16.01

8

PLATE, CLUTCH

22321-MN8-000

$9.38

9

PLATE, CLUTCH PRESSURE This part replaces 22350-MS6-921.

22350-MS6-922

$60.04

10

PLATE, CLUTCH LIFTER

22361-MR1-000

$21.17

11

SPRING, CLUTCH

22401-MS8-000

$4.51

12

SPRING, JUDDER

22402-435-000

$34.37

13

ROD, CLUTCH LIFTER

22847-415-000

$7.18

14

GEAR, PRIMARY DRIVE (39T)

23113-MBA-300

Unavailable

15

GEAR, PRIMARY SUB (39T)

23114-MBA-300

$67.95

16

SPRING, PRIMARY DRIVE GEAR

23115-MV1-300

$2.18

17

SPRING, PRIMARY DRIVE FRICTION

23117-MV1-003

$7.70

18

ROTOR, PULSER

30211-MBA-000

Unavailable

19

BOLT, FLANGE (12X30)

90005-MN5-000

$8.41

20

BOLT, SPECIAL FLANGE (6X30)

90007-MR1-000

$2.92

21

NUT, LOCK (18MM)

90236-HA0-000

$10.45

22

WASHER (18MM)

90401-MZ8-B40

$2.52

23

WASHER (12.2X40X5)

90402-MV1-000

$16.74

24

WASHER, LOCK

90432-428-000

$7.57

25

WASHER, THRUST (22MM)

90452-471-000

$4.76

26

BEARING, RADIAL BALL (6001)

96100-60010-00

$17.13

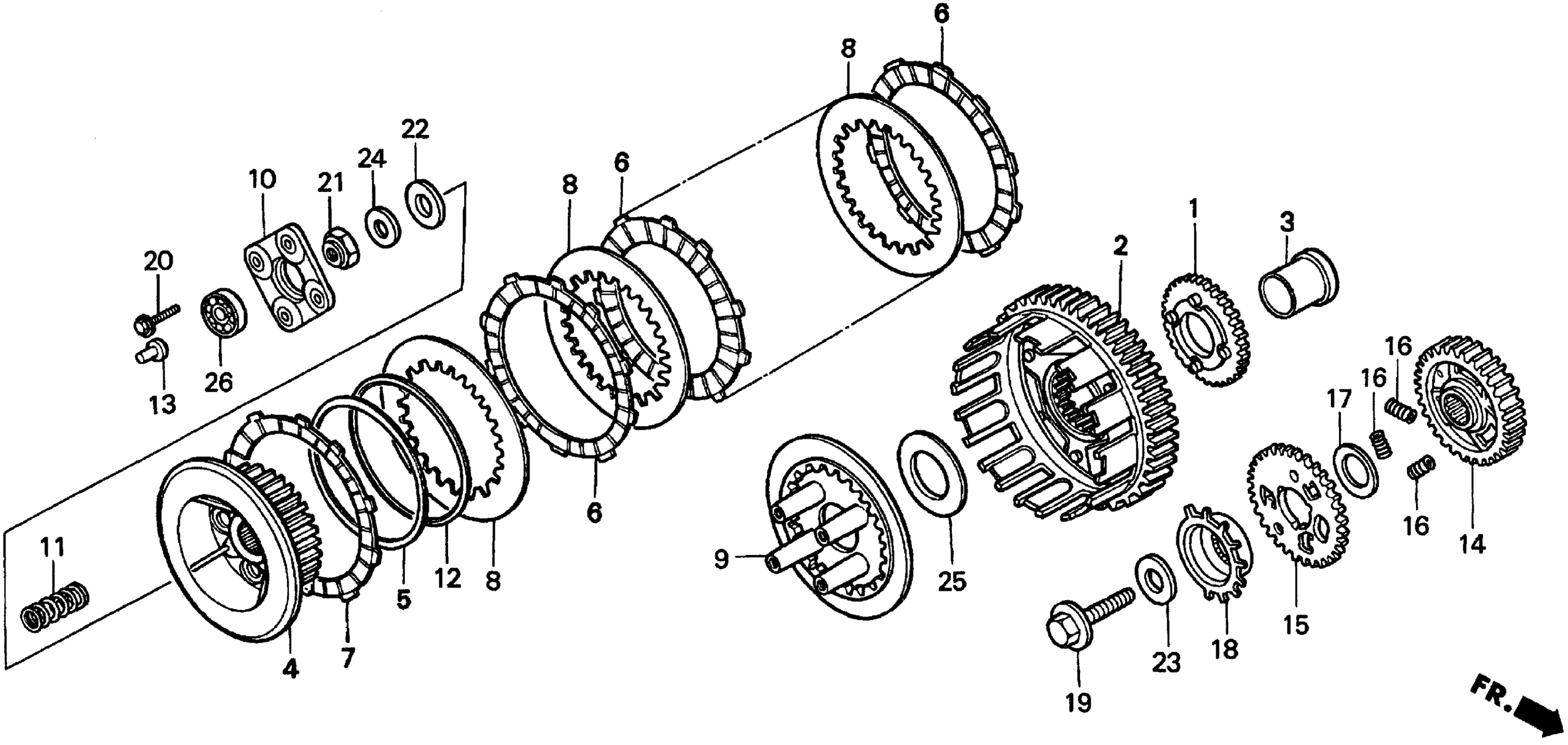

Honda VT750CA (99) SHADOWAMERICAN CLASSIC EDITION 750, JPN, VIN# JH2RC440-XM100001 CLUTCH Diagram
