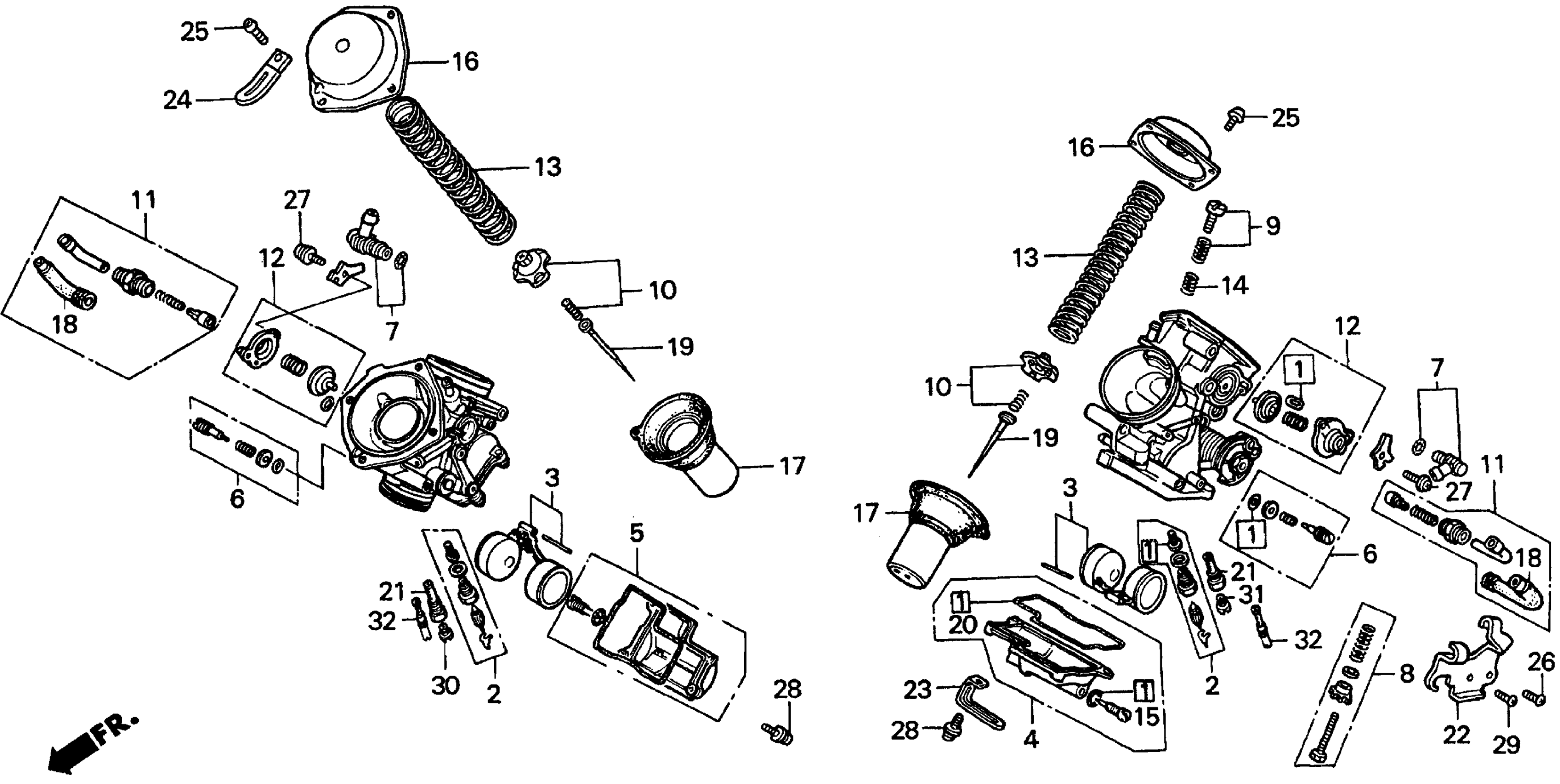

Honda VT750CA (99) SHADOWAMERICAN CLASSIC EDITION 750, JPN, VIN# JH2RC440-XM100001 CARBURETOR COMP. Diagram

GASKET SET

16010-MZ8-B40

$41.04

VALVE SET, FLOAT

16011-MZ8-B40

$48.83

FLOAT SET

16013-MAH-000

$49.54

CHAMBER SET, FLOAT

16015-MAH-750

$131.75

CHAMBER SET, FLOAT This part replaces 16015-MZ8-B40.

16015-MBL-731

Unavailable

SCREW SET

16016-MBA-980

$19.20

JOINT SET

16026-MR1-004

$41.04

SCREW SET

16028-MAH-000

$55.95

SCREW SET This part replaces 16029-MN4-003.

16029-KEJ-900

Unavailable

PLATE SET, VALVE

16037-ME5-671

$29.52

VALVE SET, STARTER

16046-MAV-000

$54.49

VALVE SET, AIR CUT

16048-MBA-600

Unavailable

SPRING, COMPRESSION COIL

16051-MBA-670

Unavailable

SPRING

16052-ME9-672

$5.67

O-RING (1.3X4.3)

16075-GHB-640

$2.92

TOP

16107-MBA-600

Unavailable

PISTON, VACUUM

16111-MBA-600

$150.92

CAP, CABLE SEALING

16118-GB4-003

$13.07

NEEDLE, JET

16131-MBA-670

Unavailable

GASKET, FLOAT CHAMBER

16163-MAH-750

$35.12

HOLDER, NEEDLE JET

16165-MBA-600

$34.51

HOLDER, NEEDLE JET This part replaces 16165-MBA-670.

16165-MBA-600

$34.51

STAY, WIRE

16169-MR1-004

Unavailable

CLIP, PLATE

16179-ME9-751

$10.15

CLIP, PLATE

17191-MN5-740

Unavailable

SCREW, PAN (4X10)

93500-04010-0A

$1.49

SCREW, PAN (4X10) This part replaces 93500-04010-1A.

93500-04010-0A

$1.49

SCREW-WASHER (4X8)

93892-04008-00

$1.49

SCREW-WASHER (4X8) This part replaces 93892-04008-10.

93892-04008-00

$1.49

SCREW-WASHER (4X12)

93892-04012-00

$1.49

SCREW-WASHER (4X12) This part replaces 93892-04012-10.

93892-04012-00

$1.49

SCREW-WASHER (4X16)

93892-04016-00

$1.49

SCREW-WASHER (4X16) This part replaces 93892-04016-10.

93892-04016-00

$1.49

SCREW-WASHER (5X12)

93892-05012-00

$1.49

SCREW-WASHER (5X12) This part replaces 93892-05012-10.

93892-05012-00

$1.49

JET, MAIN (#105)

99101-GHB-1050

$6.40

JET (#110) This part replaces 99101-GHB-1100.

99101-MBA-1100

$9.11

JET, SLOW (#40)

99103-MT2-0400

$12.25
