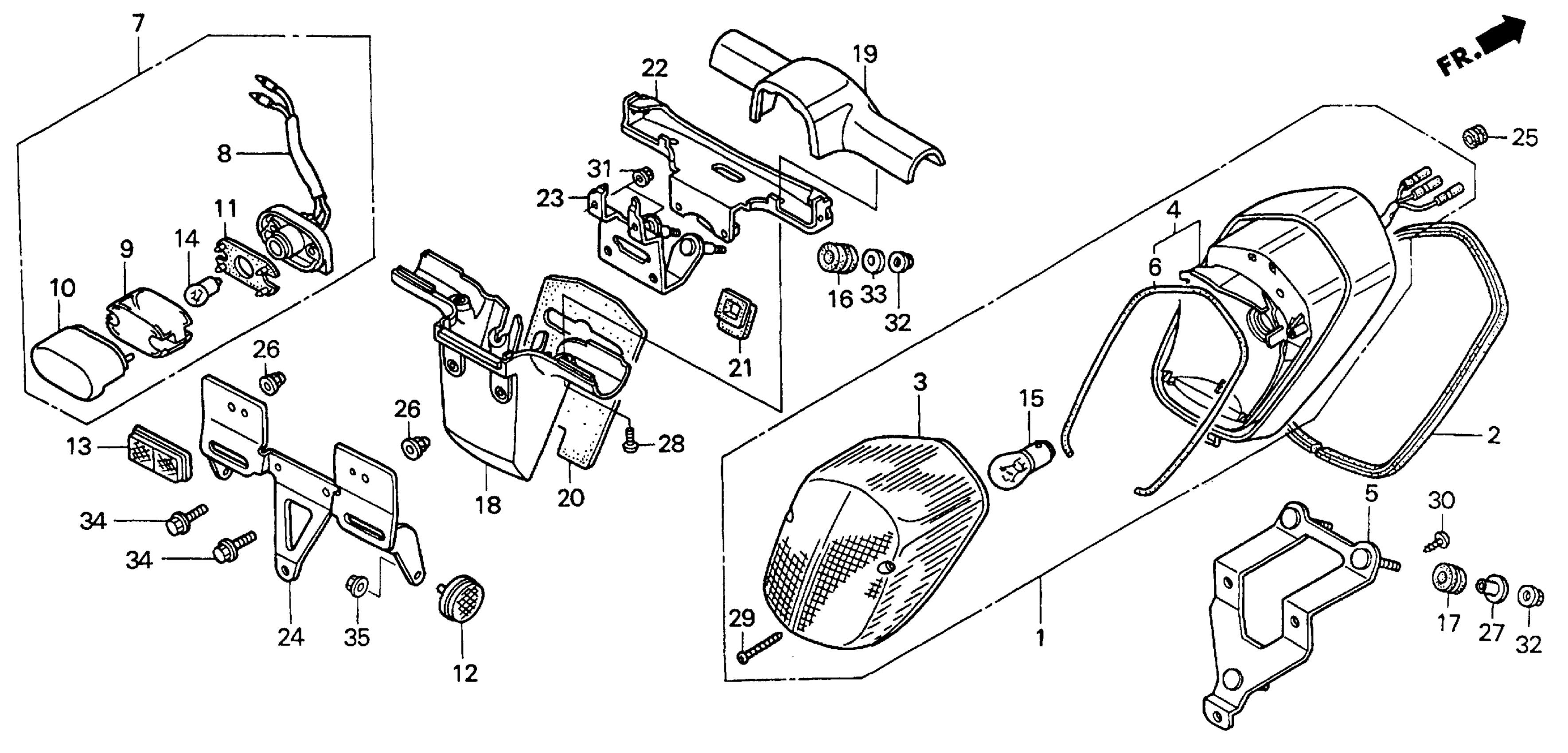

Honda VT750CA (98) SHADOWAMERICAN CLASSIC EDITION 750, JPN, VIN# JH2RC440-WM000001 TAILLIGHT Diagram

TAILLIGHT ASSY.

33701-MBA-671

Unavailable

MOLDING, RR. FENDER

33702-MBA-000

$11.03

LENS, TAILLIGHT

33702-MZ0-003

$35.87

BASE, TAILLIGHT

33704-MBA-671

Unavailable

BRACKET, TAILLIGHT

33705-MBA-000

$17.43

GASKET, TAILLIGHT

33709-MZ0-000

$7.08

LIGHT ASSY., LICENSE

33720-MZ0-671

Unavailable

BASE, LICENSE LIGHT This part replaces 33721-MBA-000.

33721-MZ0-003

Unavailable

BASE, LICENSE

33721-MZ0-003

Unavailable

LENS, LICENSE LIGHT

33722-MB1-013

$17.67

COVER, LICENSE LIGHT

33727-KR3-000

$27.01

GASKET, LENS

33729-MB1-003

$5.86

REFLECTOR, RR. REFLEX

33741-HB9-641

$11.90

REFLECTOR, RR. REFLEX

33741-MR1-671

$17.08

BULB (12V8W) This part replaces 34616-568-671.

34909-505-003

$2.80

BULB (12V8W) This part replaces 34902-500-003.

34909-505-003

$2.80

BULB (12V8W) This part replaces 34908-272-000.

34909-505-003

$2.80

BULB (12V8W4CP) (67) (STANLEY)

34909-505-003

$2.80

BULB (12V8W) This part replaces 34909-505-610.

34909-505-003

$2.80

BULB, TURN SIGNAL (12V23/8W) (1034HD) (STANLEY)

34905-425-671

$6.48

RUBBER, FR. FENDER MOUNTING

61103-357-000

Unavailable

RUBBER, RR. FENDER CUSHION

80101-310-000

$1.86

BRACKET, LICENSE LIGHT

80120-MZ0-000

$55.57

COVER, LICENSE LIGHT

80121-MZ0-700

$53.75

RUBBER, LICENSE LIGHT CUSHION

80125-MBA-000

$9.32

GROMMET, LICENSE LIGHT

80126-MBA-000

$4.54

STAY, LICENSE LIGHT

80126-MZ0-700

$28.87

STAY B, LICENSE LIGHT

80127-MZ0-700

$16.30

BRACKET, NUMBER PLATE

84701-MBA-670

$39.04

GROMMET, FENDER

88911-MJ3-000

$1.62

NUT, FLANGE CAP (5MM)

90167-SA0-980

$5.21

COLLAR, HEADLIGHT BRACKET

90501-MJ6-000

$4.16

SCREW, PAN (5X14)

93500-05014-0A

$0.75

SCREW, TAPPING (4X35)

93901-348G0

$2.33

SCREW, TAPPING (5X12)

93911-25220

$0.70

NUT, FLANGE (4MM)

94050-04000

$1.12

NUT, FLANGE (6MM)

94050-06000

$0.59

WASHER, PLAIN (6MM)

94103-06000

$0.90

BOLT, FLANGE (6X18)

95701-06018-00

$1.48
