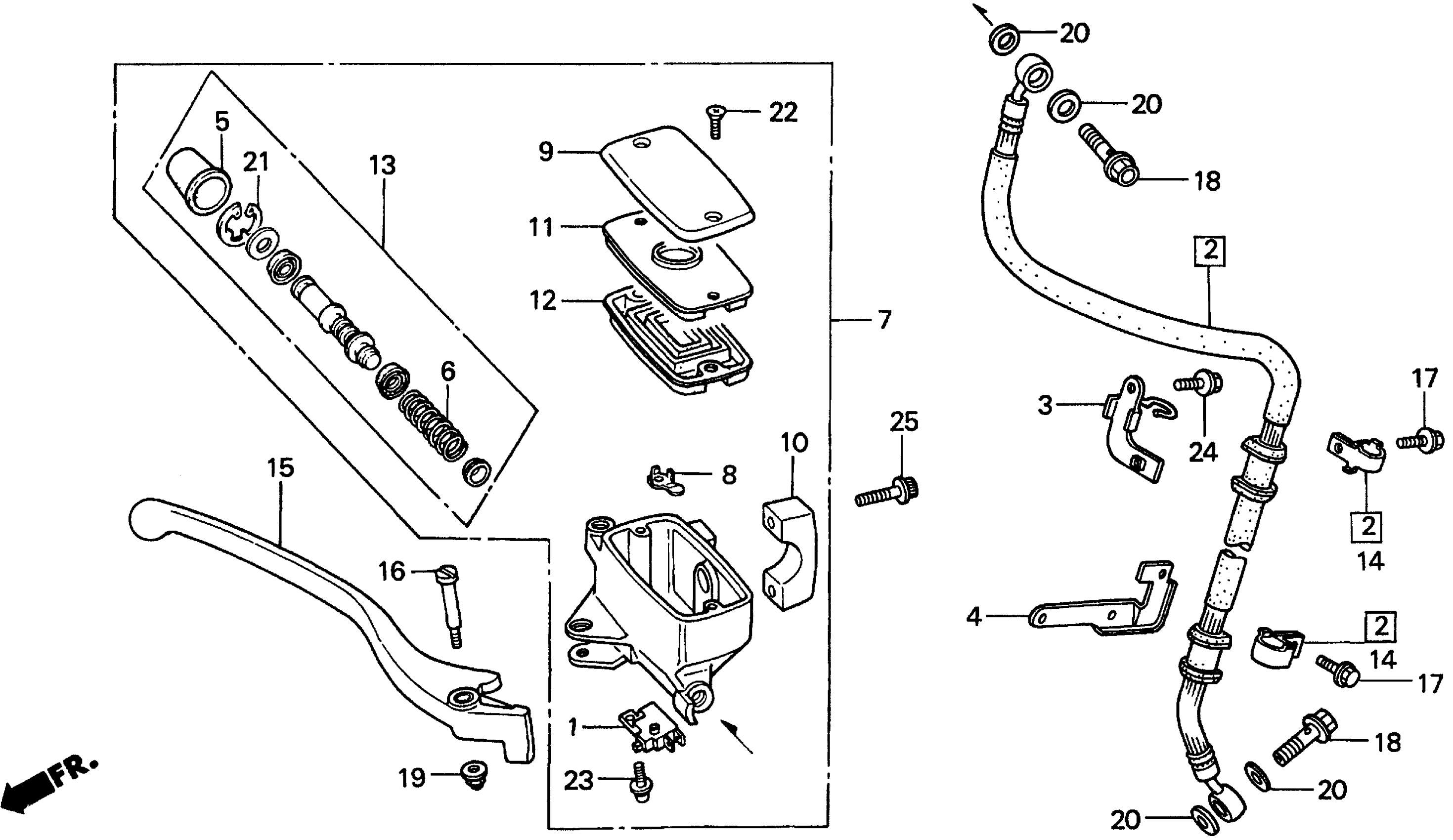

Honda VT750CA (98) SHADOWAMERICAN CLASSIC EDITION 750, JPN, VIN# JH2RC440-WM000001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MM5-600

$22.13

2

HOSE, FR. BRAKE

45126-MBA-003

Unavailable

3

CLAMP, FR. BRAKE HOSE

45130-MBA-670

Unavailable

4

BRACKET, L. FR. HOSE CLIP

45138-MBA-000

Unavailable

5

BOOT

45504-410-003

$12.16

6

SPRING

45506-KA3-731

$5.21

7

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN) This part replaces 45510-MBA-006.

45510-MAV-751

$210.66

7

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)

45510-MAV-751

$210.66

8

PROTECTOR

45512-MA6-006

$4.28

9

CAP, MASTER CYLINDER (NISSIN) This part replaces 45513-MM5-006.

45513-MM5-016

$22.41

10

HOLDER, MASTER CYLINDER (NISSIN)

45517-MAV-751

$20.71

11

PLATE, DIAPHRAGM

45518-MM5-006

$10.65

12

DIAPHRAGM

45520-MM5-006

$15.12

13

MASTER CYLINDER SET

45530-MN9-305

$50.74

14

CLAMP, BRAKE HOSE

52115-ML8-670

$4.94

15

LEVER, R. HANDLE (COO) This part replaces 53175-MR1-671.

53175-MR1-305

$14.79

16

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

17

BOLT, FLANGE (6X12)

90130-ML0-730

$2.92

18

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.54

18

BOLT, OIL (10X22)

90145-MS9-612

$7.54

19

NUT, CAP (6MM)

90201-415-000

$2.05

20

WASHER, OIL BOLT

90545-300-000

$3.99

21

CIRCLIP

90651-MA5-671

$2.66

22

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

22

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

23

SCREW-WASHER (4X12)

93893-04012-07

$1.49

23

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

24

BOLT, FLANGE (6X14)

96001-06014-07

$1.49

25

BOLT, SOCKET (6X22)

96600-06022-17

$1.93
