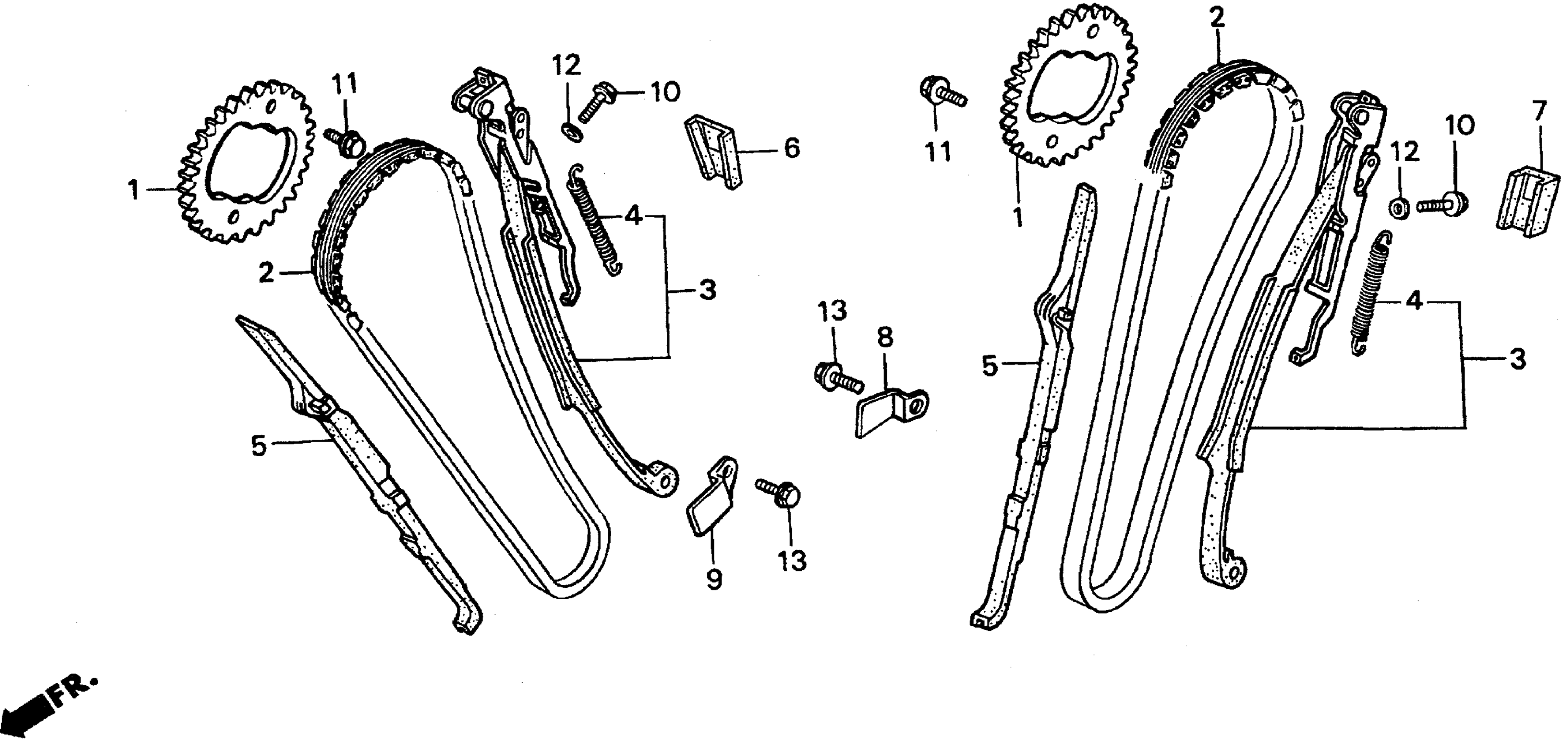

Honda VT750CA (98) SHADOWAMERICAN CLASSIC EDITION 750, JPN, VIN# JH2RC440-WM000001 CAM CHAIN Diagram

#

Description

Price

1

SPROCKET, CAM (40T)

14322-MZ8-B40

$56.08

2

CHAIN, CAM (118L) (BORG WARNER)

14401-MN1-671

$132.00

3

TENSIONER, CAM CHAIN

14510-MR1-000

$164.52

4

SPRING, CAM CHAIN TENSIONER (NIPPON HATSUJO)

14516-MG8-003

$4.78

5

GUIDE, CAM CHAIN

14522-MV1-000

$52.43

6

RUBBER, FR. CUSHION

14531-MN8-000

$9.67

7

RUBBER, RR. CUSHION

14532-MN8-000

$9.67

8

PLATE, TENSIONER SETTING

14623-MBA-000

$5.66

9

PLATE, TENSIONER SETTING

14623-MV1-000

$4.87

10

BOLT, FLANGE (6X18) This part replaces 90021-MR1-770.

90001-MZ8-U40

$1.90

11

BOLT, SPECIAL FLANGE (7X13) This part replaces 90086-MF5-000.

90086-MZ8-H00

$2.98

11

BOLT, SPECIAL FLANGE (7X13)

90086-MZ8-H00

$2.98

12

WASHER, SEALING

90441-MR1-770

$2.92

13

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
