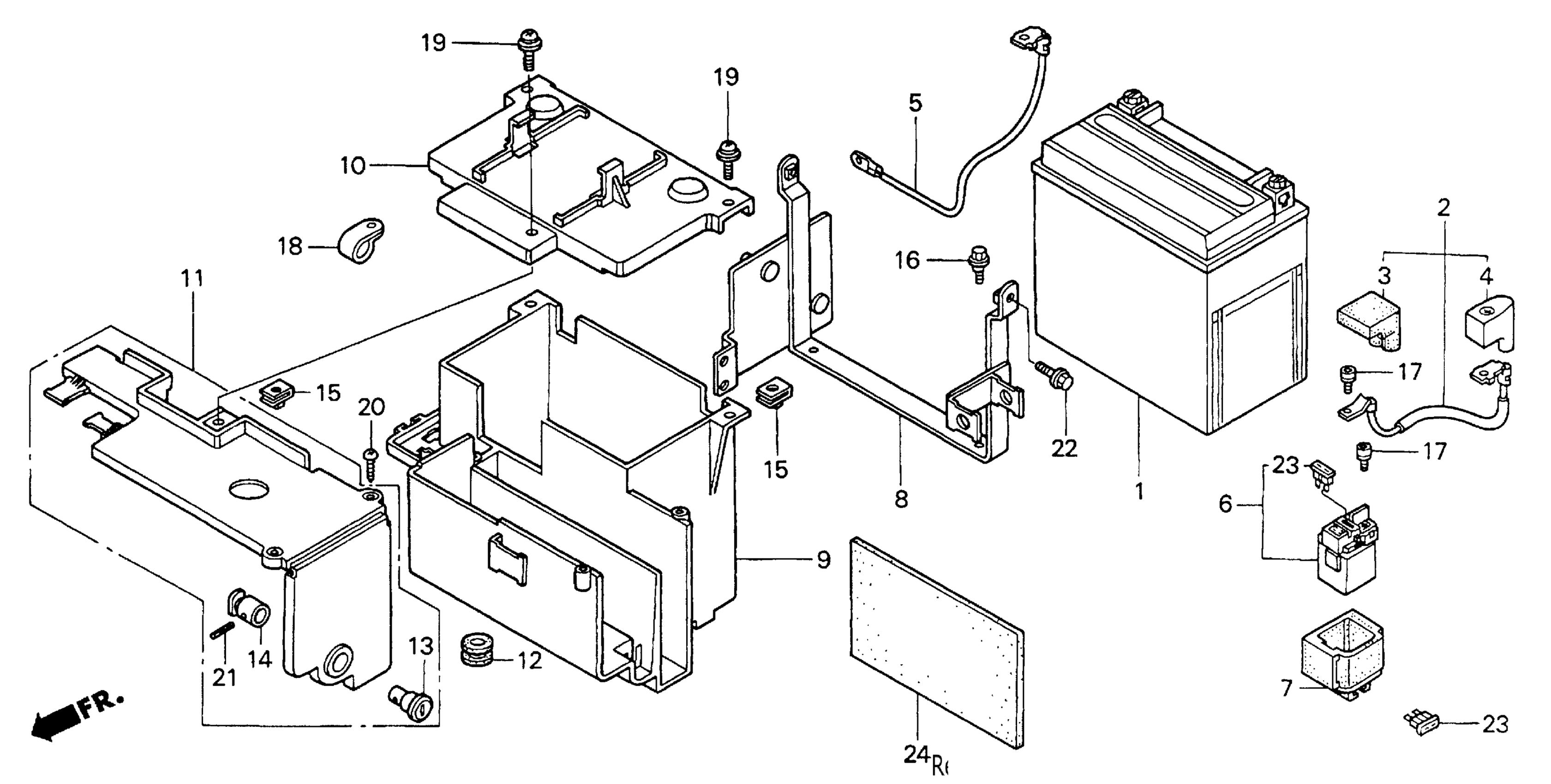

Honda VT750CA (98) SHADOWAMERICAN CLASSIC EDITION 750, JPN, VIN# JH2RC440-WM000001 BATTERY Diagram

BATTERY (YTX14-BS) (YUASA) (MSDS) This part replaces 31500-HA7-678.

31500-HC4-726AH

Unavailable

BATTERY (YTX14-BS) (YUASA) (MSDS) This part replaces 31500-HC4-726.

31500-HC4-726AH

Unavailable

CABLE, STARTER BATTERY

32401-MBA-610

Unavailable

COVER, STARTER MAGNETIC TERMINAL This part replaces 32406-MT4-000.

32406-MT4-010

$6.39

COVER, BATTERY TERMINAL

32414-MW0-000

$3.59

CABLE, BATTERY GROUND

32601-MBA-610

Unavailable

SWITCH ASSY., STARTER MAGNETIC This part replaces 35850-MT4-000.

35850-MT4-003

$78.00

RUBBER, SHOCK ABSORBER

35856-KBH-000

$12.21

HOLDER, BATTERY BOX

50322-MBA-000

Unavailable

BOX, BATTERY

50325-MBA-000

Unavailable

COVER, BATTERY

50326-MBA-000

Unavailable

COVER ASSY., TOOL

50330-MBA-000

Unavailable

RUBBER, FR. FENDER MOUNTING

61103-430-000

$3.67

BODY, KEY

83507-422-000

$3.53

STOPPER, KEY BODY

83508-KBG-000

$2.90

STOPPER, KEY BODY This part replaces 83508-438-000.

83508-KBG-000

$2.90

NUT, FENDER SETTING

84601-HA7-670

$5.54

BOLT, FLANGE (6MM)

90003-GAZ-000

$3.31

BOLT, SOCKET (5X9)

90111-MR5-000

$2.61

CLIP, PROTECTOR (NOT AVAILABLE)

90602-SB2-003

Unavailable

SCREW-WASHER (6X20)

93893-06020-07

$1.49

SCREW, TAPPING (4X12)

93903-24380

$1.49

PIN, SPRING (2X14)

94305-20141

$1.49

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

FUSE, BLADE (30A)

98200-33000

$1.49

CUSHION, BATTERY

50325-KM1-000

$4.57
