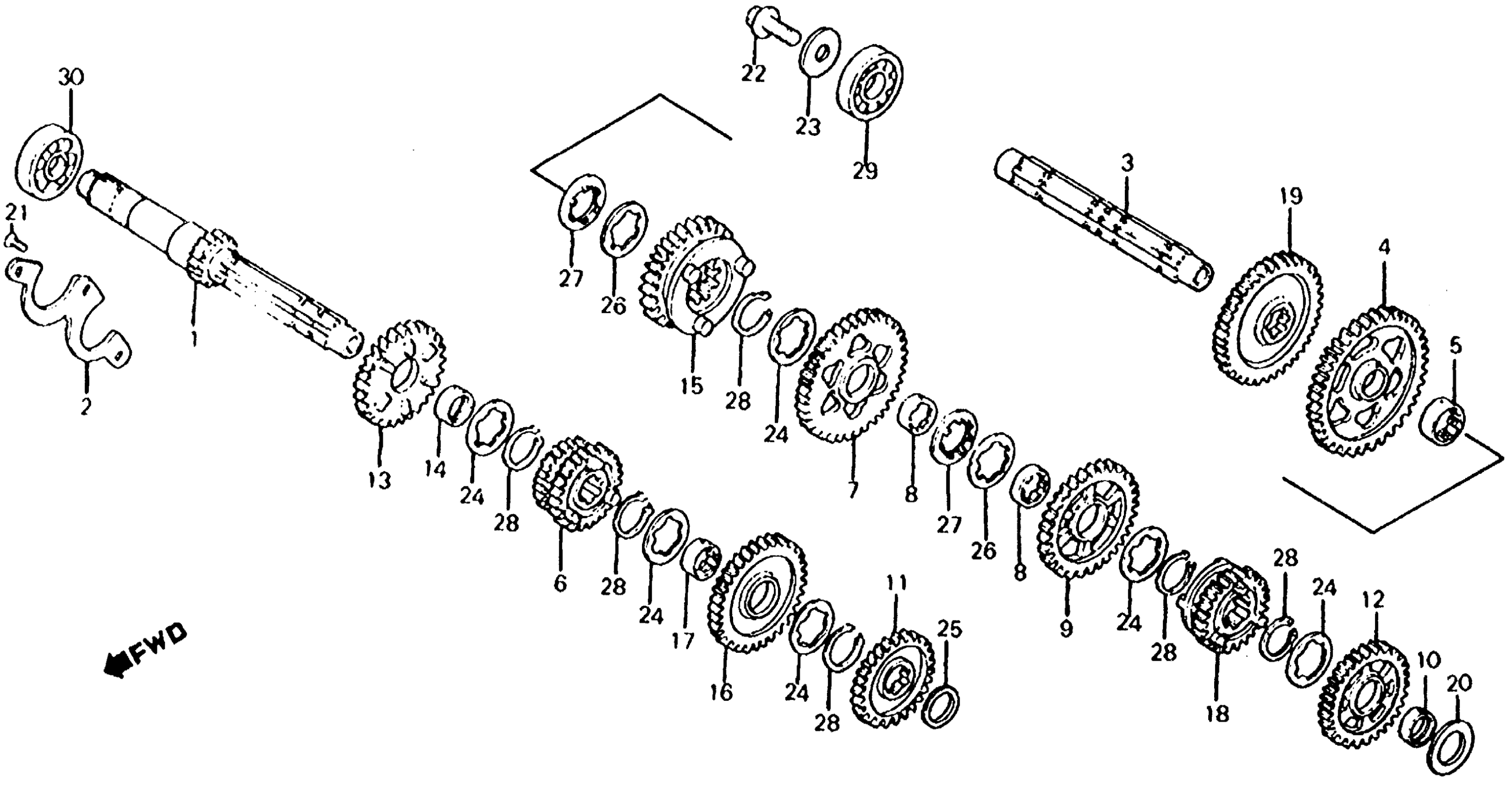

Honda VT750CA (83) SHADOW 750, JPN, VIN# JH2RC140-DM000035 TO JH2RC140-DM022807 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION

23211-ME9-000

Unavailable

2

PLATE, BEARING SETTING

23212-ME9-000

Unavailable

3

COUNTERSHAFT, TRANSMISSION

23221-ME9-000

Unavailable

4

GEAR, COUNTERSHAFT FIRST (39T)

23421-ME9-000

Unavailable

5

COLLAR, SPLINE (25X28X10.8)

23422-ME9-000

Unavailable

6

GEAR, MAINSHAFT SECOND & THIRD (21T,24T) | Use up to Engine SN 2019423 This part replaces 23431-MB0-000.

23431-MN0-000

Unavailable

6

GEAR, MAINSHAFT SECOND & THIRD (21T,24T) This part replaces 23431-MB0-010.

23431-MN0-000

Unavailable

6

GEAR, MAINSHAFT SECOND & THIRD (21T,24T)

23431-MN0-000

Unavailable

7

GEAR, COUNTERSHAFT SECOND (34T)

23441-MB0-000

Unavailable

8

COLLAR, SPLINE (25X9.5)

23442-MB0-000

Unavailable

9

GEAR, COUNTERSHAFT THIRD (31T) (NOT AVAILABLE)

23461-MB0-000

Unavailable

10

COLLAR (25X10) (NOT AVAILABLE)

23462-MB0-000

$17.25

11

GEAR, MAINSHAFT FOURTH (27T)

23471-MB0-000

Unavailable

12

GEAR, COUNTERSHAFT FOURTH (29T) (NOT AVAILABLE)

23481-MB0-000

Unavailable

13

GEAR, MAINSHAFT FIFTH (29T) (NOT AVAILABLE) This part replaces 23491-MB0-000.

23491-MK3-000

Unavailable

14

COLLAR (25X12)

23495-MB0-000

$26.23

15

GEAR, COUNTERSHAFT FIFTH (26T) | Use up to Engine SN 2019423 This part replaces 23501-MB0-000.

23501-MN0-000

$140.74

15

GEAR, COUNTERSHAFT FIFTH (26T) | Use up to Engine SN 2019423 This part replaces 23501-MB0-010.

23501-MN0-000

$140.74

15

GEAR, COUNTERSHAFT FIFTH (26T) This part replaces 23501-MB0-010.

23501-MN0-000

$140.74

15

GEAR, COUNTERSHAFT FIFTH (26T) | Use up to Engine SN 2019423

23501-MN0-000

$140.74

15

GEAR, COUNTERSHAFT FIFTH (26T)

23501-MN0-000

$140.74

16

GEAR, MAINSHAFT SIXTH (32T)

23511-MB0-000

Unavailable

17

COLLAR, SPLINE (25X12.5)

23512-MB0-000

Unavailable

18

GEAR, COUNTERSHAFT SIXTH (24T) (NOT AVAILABLE) | Use up to Engine SN 2019423 This part replaces 23521-MB0-000.

23521-MB0-010

Unavailable

18

GEAR, COUNTERSHAFT SIXTH (24T) (NOT AVAILABLE) | Use from Engine SN 2019424

23521-MB0-010

Unavailable

19

GEAR, FINAL DRIVE (36T) (NOT AVAILABLE)

23725-ME9-000

Unavailable

20

WASHER, THRUST (20MM) (NOT AVAILABLE) This part replaces 23901-567-010.

90454-HA0-000

Unavailable

21

SCREW, FLAT (6X16)

90022-ME9-000

$2.30

22

BOLT, SPECIAL (10MM)

90038-ME9-000

$4.72

23

WASHER (10MM)

90409-952-000

$2.39

24

WASHER, THRUST (25X34)

90452-371-000

$4.82

25

WASHER, THRUST (20X1.00)

90454-428-000

$2.53

26

WASHER B, THRUST (25MM)

90461-286-000

Unavailable

27

WASHER, LOCK (25MM)

90462-323-000

$3.77

28

CIRCLIP (OUTER) (25MM)

90601-300-000

$3.83

29

BEARING, RADIAL BALL (6304)

96100-63040-00

$14.40

30

BEARING, RADIAL BALL (6305)

96100-63050-00

$15.27
