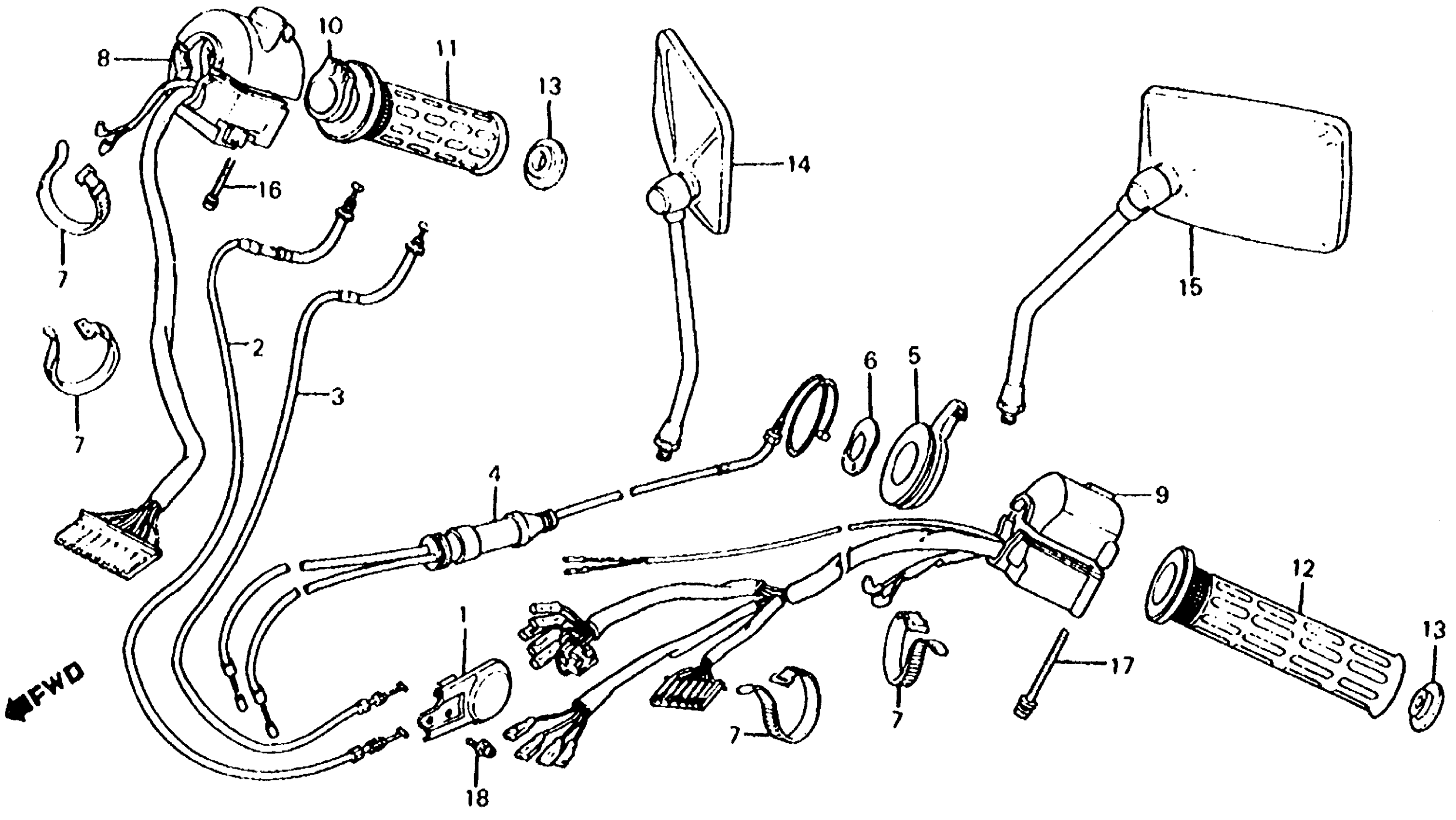

Honda VT750CA (83) SHADOW 750, JPN, VIN# JH2RC140-DM000035 TO JH2RC140-DM022807 SWITCH + CABLE Diagram

COVER, CARBURETOR

16111-ME9-000

Unavailable

CABLE A, THROTTLE (NOT AVAILABLE) This part replaces 17910-ME9-670.

17910-ME5-000

Unavailable

CABLE B, THROTTLE

17920-MB0-405

Unavailable

CABLE B, THROTTLE This part replaces 17920-ME9-670.

17920-MB0-405

Unavailable

CABLE, CHOKE (FOR A 6MM SYSTEM) (NOT AVAILABLE)

17950-ME9-305

Unavailable

CABLE, CHOKE (FOR A 8MM SYSTEM)

17950-ME9-670

$58.87

LEVER, CHOKE This part replaces 17962-MB0-000.

17962-ME8-000

Unavailable

LEVER, CHOKE (FOR A 8MM SYSTEM) (NOT AVAILABLE)

17962-MB0-010

Unavailable

LEVER, CHOKE

17962-ME8-000

Unavailable

WASHER, WAVE (22MM) (FOR A 6MM SYSTEM) (NOT AVAILABLE)

17964-ME9-000

Unavailable

BAND B1, CABLE

32161-404-000

$2.23

SWITCH ASSY., STARTER STOP (NOT AVAILABLE)

35130-ME9-305

Unavailable

SWITCH ASSY., STARTER STOP (NOT AVAILABLE) This part replaces 35130-ME9-670.

35130-ME9-305

Unavailable

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE)

35200-ME9-670

Unavailable

PIPE, THROTTLE GRIP

53141-300-010

$20.93

GRIP, R. HANDLE

53165-MB1-000

Unavailable

GRIP, L. HANDLEBAR

53166-MB1-000

Unavailable

CAP, GRIP RUBBER

53171-MB1-000

$3.81

MIRROR, R.

88110-ME9-671

Unavailable

MIRROR, L.

88120-ME9-671

Unavailable

SCREW-WASHER (5X30)

93891-05030-07

$1.49

SCREW-WASHER (5X35)

93891-05035-07

$1.49

SCREW-WASHER (5X35) This part replaces 93891-05035-17.

93891-05035-07

$1.49

SCREW-WASHER (4X6)

93892-04006-00

$1.49
