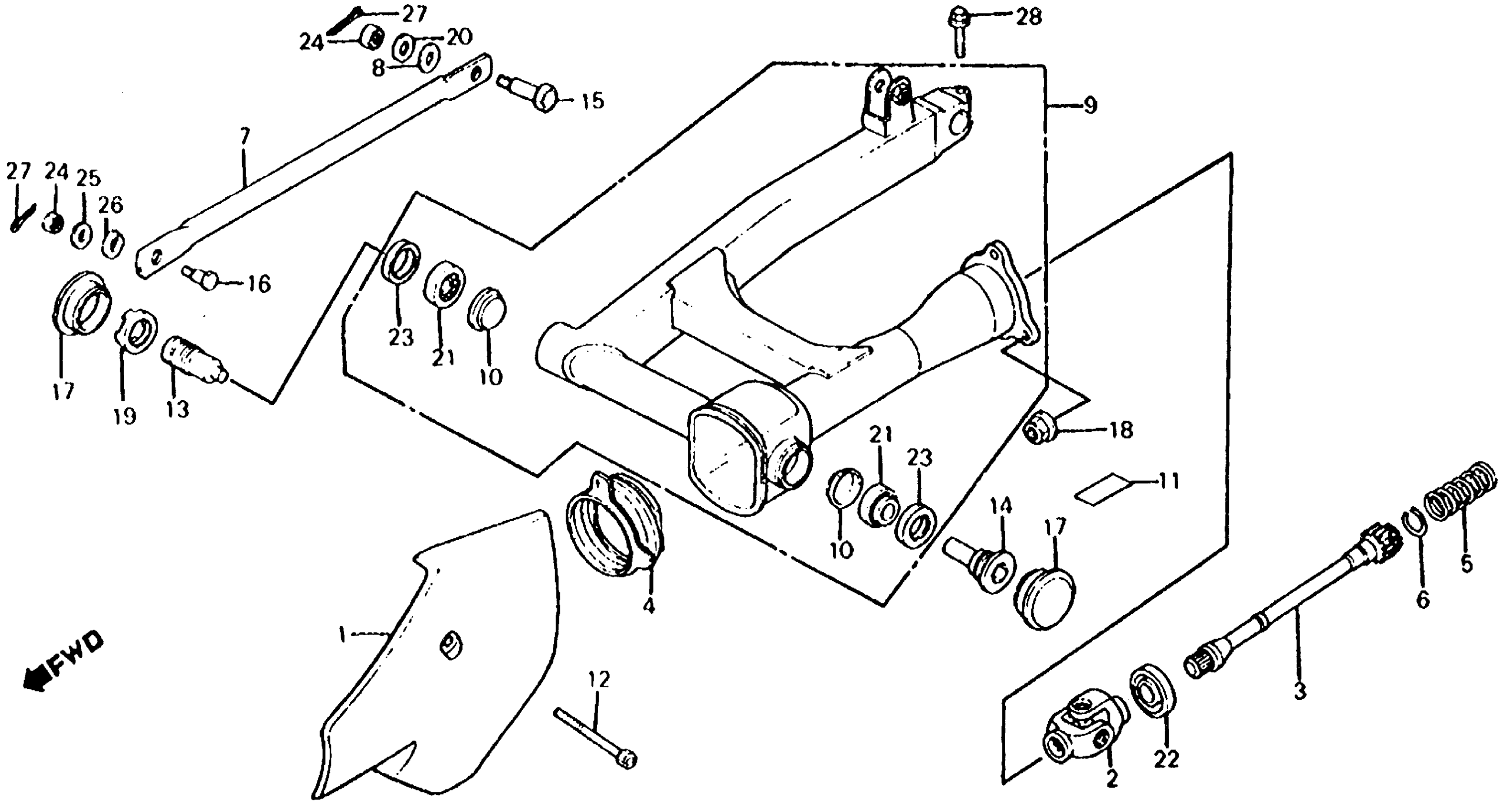

Honda VT750CA (83) SHADOW 750, JPN, VIN# JH2RC140-DM000035 TO JH2RC140-DM022807 SWINGARM Diagram

#

Description
Price

1

COVER, L. RR.

11341-ME9-000

Unavailable

2

JOINT, YOKE

40200-ME9-003

Unavailable

3

SHAFT, PROPELLER

40201-ME9-003

Unavailable

4

BOOT, JOINT

40207-ME9-000

Unavailable

5

SPRING, PROPELLER SHAFT

40215-ME9-003

$5.90

6

RING, STOPPER

40221-MB0-000

$4.53

7

ARM, RR. BRAKE STOPPER This part replaces 43431-ME9-000.

43431-ME9-010

Unavailable

7

ARM, RR. BRAKE STOPPER

43431-ME9-010

Unavailable

8

RUBBER, STOPPER ARM

43434-ME1-670

$3.47

9

SWINGARM ASSY., RR.

52100-ME9-000

Unavailable

10

PLATE, DUST SEAL

52118-415-000

Unavailable

11

MARK, TIRE CAUTION (NOT AVAILABLE)

87505-ME9-670

Unavailable

12

BOLT, SOCKET (6MM) This part replaces 90074-ME9-000.

90081-KF9-900

Unavailable

12

BOLT, SOCKET (6MM)

90081-KF9-900

Unavailable

12

BOLT, SOCKET (6MM) This part replaces 90119-ME9-000.

90081-KF9-900

Unavailable

13

BOLT, R. RR. SWINGARM PIVOT

90121-ME5-000

Unavailable

14

BOLT, L. RR. SWINGARM PIVOT

90124-ME9-000

Unavailable

15

BOLT, RR. BRAKE STOPPER

90127-393-000

$4.85

16

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.48

17

CAP, R. LOCK NUT

90302-ME5-000

$19.37

18

NUT, HEX. (10MM)

90308-357-000

$4.85

19

NUT, LOCK (23MM)

90354-ME5-000

Unavailable

20

WASHER A, HANDLE HOLDER SETTING This part replaces 90505-425-000.

90524-030-000

$1.49

20

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

21

BEARING (30202) (NIPPON SEIKO) This part replaces 91066-415-003.

91066-415-006

Unavailable

21

BEARING (30202) (NIPPON SEIKO) This part replaces 91066-415-004.

91066-415-006

Unavailable

21

BEARING (30202) (NIPPON SEIKO) This part replaces 91066-415-005.

91066-415-006

Unavailable

21

BEARING (30202) (NIPPON SEIKO)

91066-415-006

Unavailable

22

OIL SEAL (27X43X7)

91261-ME9-005

$12.13

23

OIL SEAL (20X35X5)

91266-ME5-003

Unavailable

24

NUT, HEX. (8MM)

94001-08000-0S

$1.49

25

WASHER, PLAIN (8MM)

94101-08000

$1.49

26

WASHER, SPRING (8MM)

94111-10000

$1.49

27

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

27

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

27

PIN, COTTER (2.0X22)

94201-20220

$1.49

27

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

27

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

27

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

27

PIN, COTTER (2.0X35)

94201-20350

$1.49

27

PIN, COTTER (2.0X22)

94201-29220

$1.49

28

BOLT, FLANGE (8X32) This part replaces 95700-08032-00.

95701-08032-00

$1.49

28

BOLT, FLANGE (8X32)

95701-08032-00

$1.49
