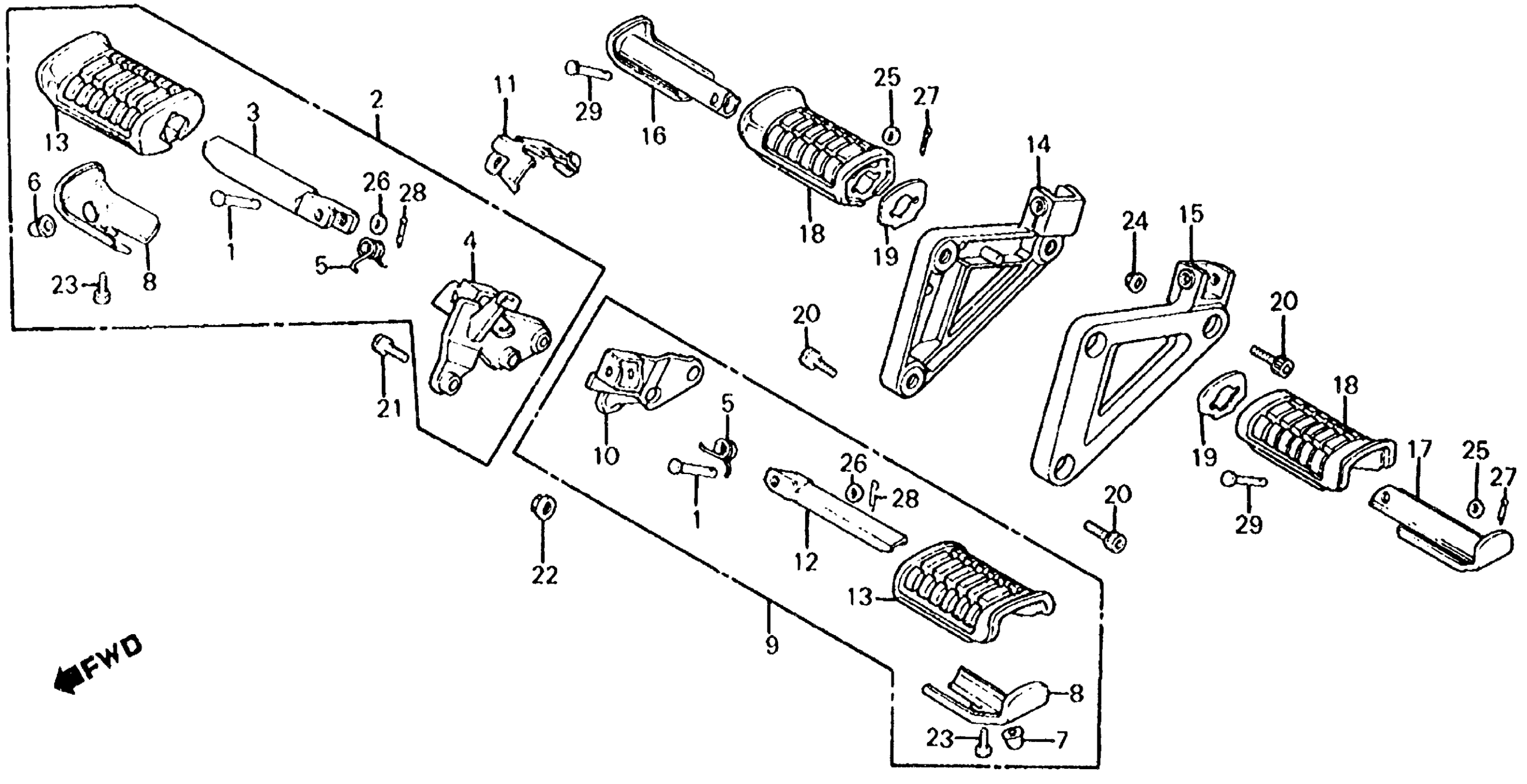

Honda VT750CA (83) SHADOW 750, JPN, VIN# JH2RC140-DM000035 TO JH2RC140-DM022807 STEP Diagram

#

Description
Price

1

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

1

PIN, STEP BAR JOINT

50603-033-010

$3.30

2

STEP ASSY., R. MAIN (NOT AVAILABLE)

50610-ME9-670

Unavailable

3

BAR, R. FOOTPEG

50612-MB1-000

Unavailable

3

BAR, R. FOOTPEG (NOT AVAILABLE) This part replaces 50612-ME9-000.

50612-MB1-000

Unavailable

4

BRACKET, R. STEP

50615-ME9-670

Unavailable

5

SPRING, STEP RETURN

50617-195-000

Unavailable

6

SLIDER, STEP

50618-MB1-000

$4.13

7

SLIDER, STEP

50618-MF5-000

Unavailable

8

STOPPER, STEP RUBBER

50619-MB1-000

Unavailable

9

STEP ASSY., L. MAIN (NOT AVAILABLE)

50620-ME9-670

Unavailable

10

BRACKET, L. STEP (NOT AVAILABLE)

50625-ME9-670

Unavailable

11

COVER, STEP

50626-ME9-670

Unavailable

12

BAR, L. FOOTPEG

50642-MB1-000

Unavailable

12

BAR, L. FOOTPEG (NOT AVAILABLE) This part replaces 50642-ME9-000.

50642-MB1-000

Unavailable

13

RUBBER, MAIN FOOTPEG

50661-ME9-000

Unavailable

14

HOLDER, R. PILLION STEP (NOT AVAILABLE)

50680-ME9-000

Unavailable

15

HOLDER, L. PILLION STEP (NOT AVAILABLE)

50690-ME9-000

Unavailable

16

BAR, R. PILLION STEP (NOT AVAILABLE)

50711-ME9-000

Unavailable

17

BAR, L. PILLION STEP

50712-ME9-000

Unavailable

18

RUBBER, PILLION STEP

50713-MB1-000

$15.82

19

WASHER, PILLION STEP

50714-MB1-000

Unavailable

20

BOLT, SOCKET (8X22)

90119-KV0-000

Unavailable

20

BOLT, SOCKET (8X22) This part replaces 90119-MB4-000.

90119-KV0-000

Unavailable

21

BOLT, SOCKET (8X22) | Use from Frame SN DM019978

90142-ME5-000

Unavailable

21

BOLT, SOCKET (8X20) | Use up to Frame SN DM019977

90157-MF5-000

$6.31

22

NUT, FLANGE (10MM)

90303-428-900

$3.35

23

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

23

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

23

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

24

NUT, FLANGE (8MM)

94050-08080

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM)

94101-06800

$1.49

26

WASHER, PLAIN (8MM)

94101-08000

$1.49

27

PIN, COTTER (1.6X10)

94201-16100

$1.49

28

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

28

PIN, COTTER (1.6X25)

94201-16250

$1.49

29

PIN C, PILLION FOOTPEG

95015-83000

$2.41
