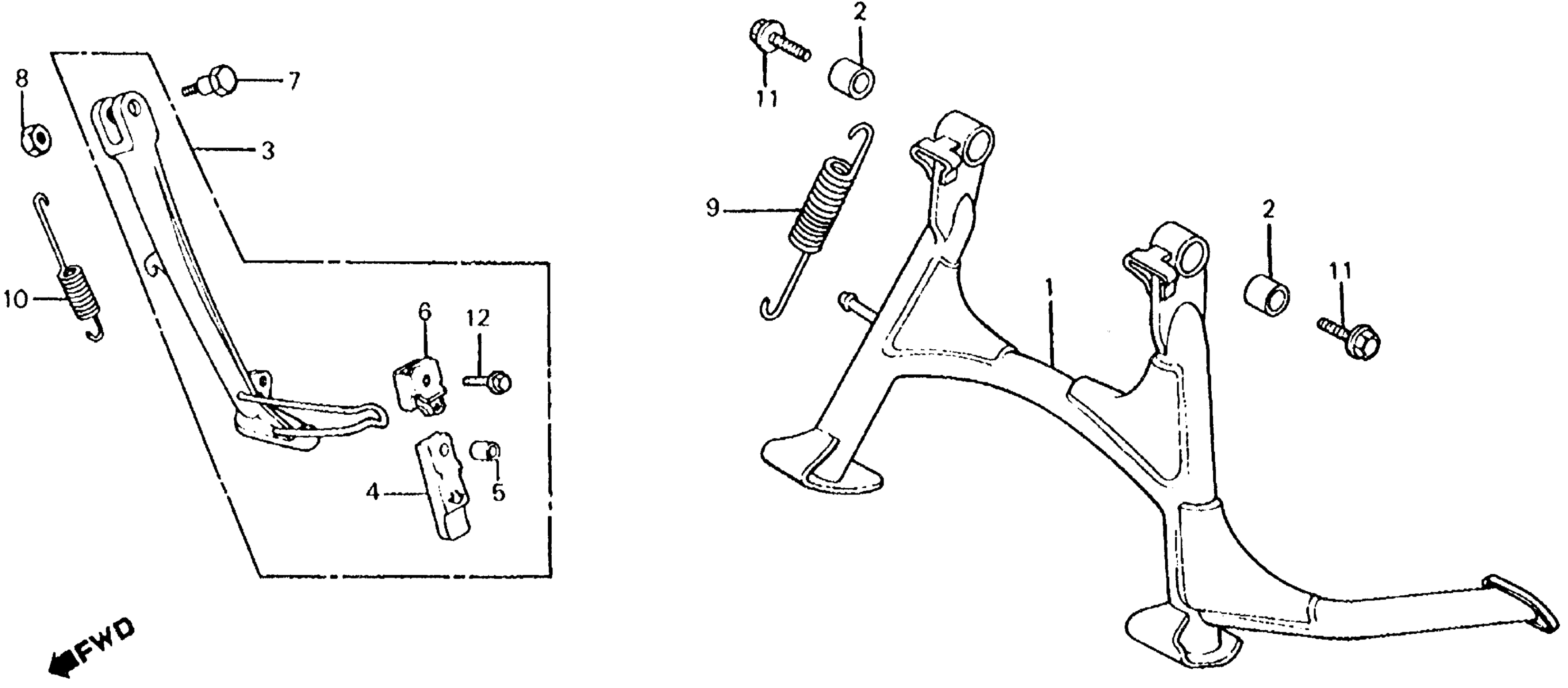

Honda VT750CA (83) SHADOW 750, JPN, VIN# JH2RC140-DM000035 TO JH2RC140-DM022807 STAND Diagram

STAND, MAIN

50500-ME9-000

Unavailable

COLLAR, MAIN STAND

50526-ME9-000

Unavailable

BAR ASSY., SIDE STAND (NOT AVAILABLE)

50540-ME9-000

Unavailable

RUBBER, STAND

50548-356-700

$10.50

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

BRACKET, SIDE STAND RUBBER

50574-MB0-000

Unavailable

BOLT, SIDE STAND PIVOT

90108-MB0-000

Unavailable

NUT, HEX. (10MM)

94031-10070

Unavailable

SPRING G, MAIN STAND

95014-71702

$4.08

SPRING D, SIDE STAND

95014-72402

$2.92

BOLT, FLANGE (10X35) This part replaces 95800-10035-08.

95801-10035-08

$2.58

BOLT, FLANGE (10X40) This part replaces 95800-10040-08.

95801-10040-08

$2.30

BOLT, FLANGE (10X40)

95801-10040-08

$2.30

BOLT, FLANGE (10X35)

96400-10040-08

Unavailable

BOLT, FLANGE (6X25) This part replaces 96000-06025-07.

96001-06025-07

$1.49

BOLT, FLANGE (6X25)

96001-06025-07

$1.49
