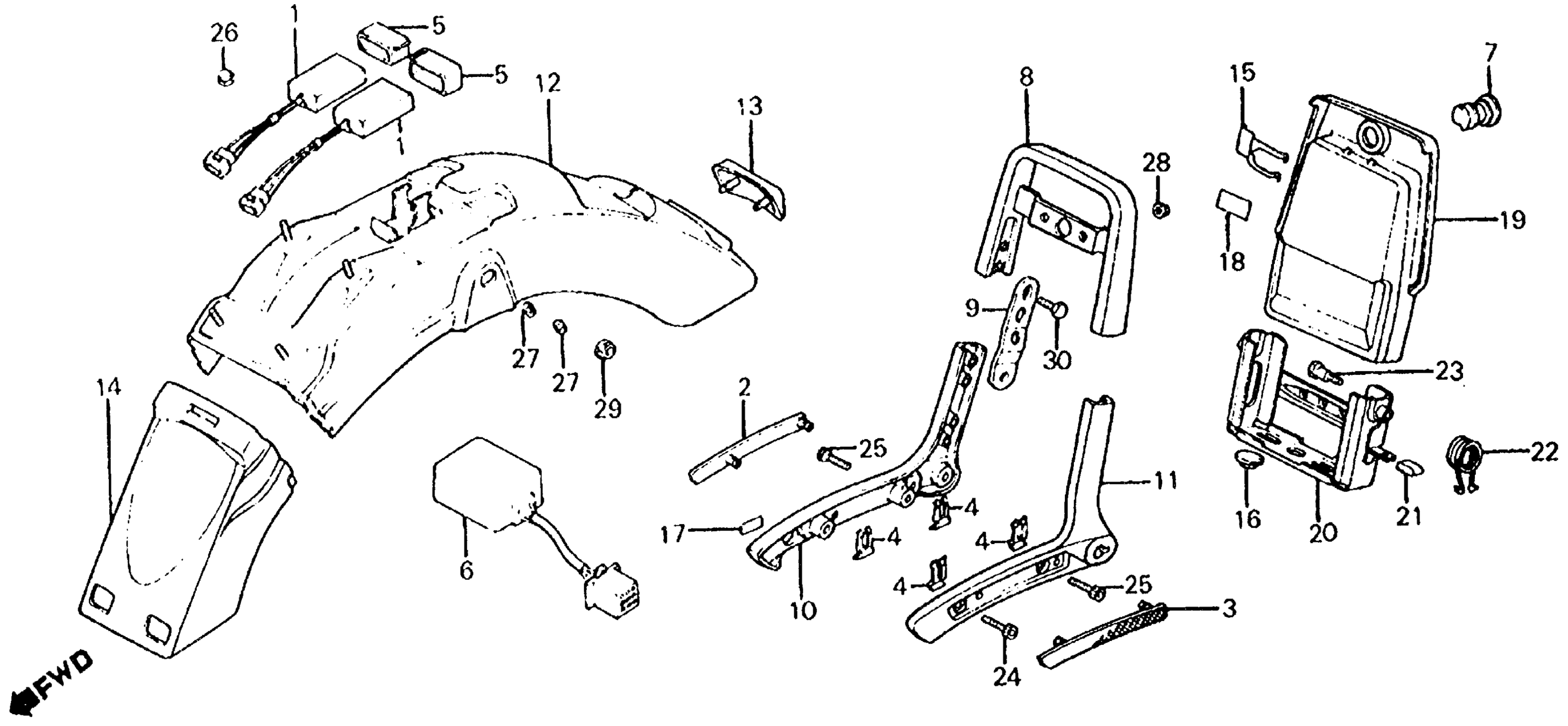

Honda VT750CA (83) SHADOW 750, JPN, VIN# JH2RC140-DM000035 TO JH2RC140-DM022807 REAR FENDER + SPARK UNIT Diagram

#

Description
Price

1

UNIT ASSY., SPARK (NOT AVAILABLE)

30400-ME9-005

Unavailable

2

REFLECTOR, R. RR. REFLEX (NOT AVAILABLE) This part replaces 33742-ME9-671.

33742-ME9-672

Unavailable

2

REFLECTOR, R. RR. REFLEX (NOT AVAILABLE)

33742-ME9-672

Unavailable

3

REFLECTOR, L. RR. REFLEX (NOT AVAILABLE) This part replaces 33743-ME9-671.

33743-ME9-672

Unavailable

3

REFLECTOR, L. RR. REFLEX

33743-ME9-672

Unavailable

4

SPRING, REFLEX REFLECTOR SETTING (NOT AVAILABLE)

33745-ME9-000

Unavailable

5

RUBBER (NOT AVAILABLE)

35229-ME9-000

Unavailable

6

SENSOR, STOP & TAIL

35550-ME9-670

Unavailable

7

LOCK, FILLER LID

37220-439-007

$54.29

8

GRAB RAIL (UPPER) This part replaces 77320-ME9-670.

77320-ME9-671

Unavailable

8

GRAB RAIL (UPPER)

77320-ME9-671

Unavailable

9

STAY, GRAB RAIL SET This part replaces 77324-ME9-000.

77324-MG8-770

Unavailable

9

STAY, GRAB RAIL SET

77324-MG8-770

Unavailable

10

GRAB RAIL, R. This part replaces 77330-ME9-000.

77330-ME9-010

Unavailable

10

GRAB RAIL, R.

77330-ME9-010

Unavailable

11

GRAB RAIL, L. (NOT AVAILABLE) This part replaces 77340-ME9-000.

77340-ME9-010

Unavailable

11

GRAB RAIL, L. (NOT AVAILABLE)

77340-ME9-010

Unavailable

12

FENDER A, RR. *R114CU* (CANDY WINE BERRY RED-U) (NOT AVAILABLE)

80100-ME9-000ZA

Unavailable

12

FENDER A, RR. *NH1Z* (BLACK-Z)

80100-ME9-000ZB

Unavailable

13

EMBLEM, RR. FENDER

80102-MB1-770

Unavailable

14

FENDER B, RR. *NH1Z* (BLACK-Z) This part replaces 80105-ME9-000ZA.

80105-ME9-000ZB

Unavailable

14

FENDER B, RR. *NH1Z* (BLACK-Z)

80105-ME9-000ZB

Unavailable

15

SPRING, LOCK KEY SETTING (NOT AVAILABLE)

81192-MA1-740

Unavailable

16

RUBBER, BATTERY BOX

83618-323-000

$2.47

17

LABEL, HELMET HOLDER

87511-323-670

$2.72

18

MARK, ACCESSORIES & LOADING CAUTION

87512-461-770

Unavailable

19

CASE, TOOL (NOT AVAILABLE)

89001-ME9-670

Unavailable

20

HOLDER, TOOL CASE This part replaces 89002-ME9-670.

89002-ME9-770

$39.84

20

HOLDER, TOOL CASE

89002-ME9-770

$39.84

21

RUBBER, TOOL CASE STOPPER

89006-ME9-670

Unavailable

22

SPRING, LICENSE PLATE RETURN (NOT AVAILABLE)

89007-ME9-670

Unavailable

23

BOLT, TOOL CASE HOLDER SETTING

90107-ME9-670

Unavailable

24

BOLT, SOCKET (8MM)

90116-125-782

Unavailable

25

BOLT, SOCKET (8X28)

90152-ME5-000

$3.46

26

NUT, CAP (6MM)

90201-415-000

$2.05

26

NUT, FLANGE (6MM)

94050-06000

$1.49

27

NUT, SPEED (3MM)

90313-567-000

$3.97

28

NUT, FLANGE (6MM)

94050-06080

$1.49

29

NUT, FLANGE (8MM)

94050-08080

$1.49

30

BOLT, FLANGE (6X12) This part replaces 95700-06012-07.

95701-06012-07

$1.62

30

BOLT, FLANGE (6X12)

95701-06012-07

$1.62
