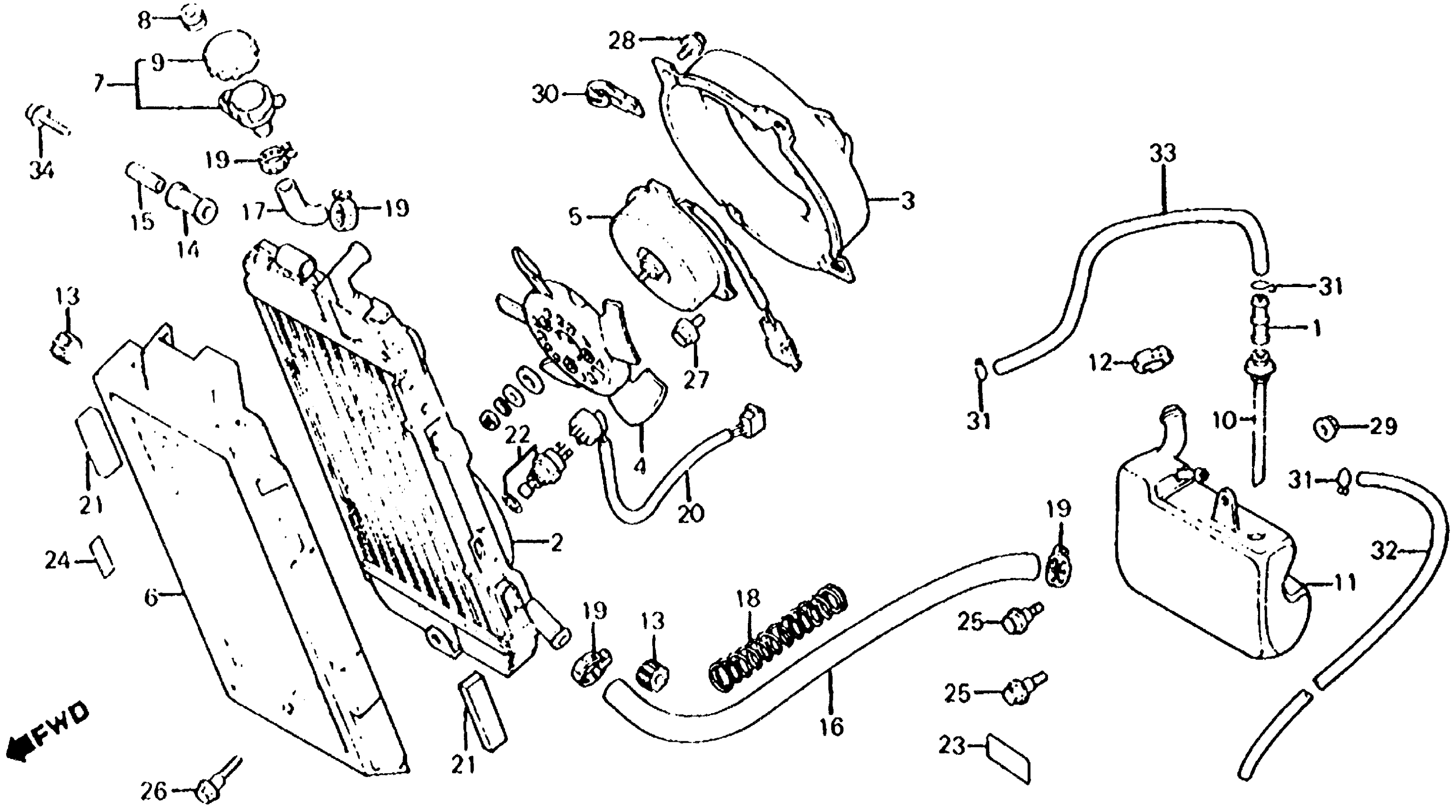

Honda VT750CA (83) SHADOW 750, JPN, VIN# JH2RC140-DM000035 TO JH2RC140-DM022807 RADIATOR Diagram

#

Description
Price

1

JOINT, BREATHER TUBE

17359-419-670

$1.95

2

RADIATOR (NOT AVAILABLE)

19010-ME9-003

Unavailable

3

SHROUD

19015-ME9-003

Unavailable

4

FAN, COOLING (NOT AVAILABLE)

19020-ME9-003

$46.38

5

MOTOR, FAN This part replaces 19030-ME9-004.

19030-ME9-405

Unavailable

5

MOTOR, FAN

19030-ME9-405

Unavailable

6

COVER, RADIATOR (NOT AVAILABLE) This part replaces 19032-ME9-000.

19032-ME9-770

Unavailable

6

COVER, RADIATOR (NOT AVAILABLE)

19032-ME9-770

Unavailable

7

FILLER NECK ASSY. (NOT AVAILABLE)

19035-ME9-003

Unavailable

8

RUBBER, FILLER NECK STOPPER

19038-ME9-000

$4.08

9

CAP, RADIATOR This part replaces 19045-MB0-702.

19045-MZ3-405

$32.49

10

TUBE, LEVEL This part replaces 19102-463-000.

19205-MF5-010

Unavailable

10

TUBE, LEVEL This part replaces 19205-MF5-000.

19205-MF5-010

Unavailable

10

TUBE, LEVEL

19205-MF5-010

Unavailable

11

TANK, RESERVE (NOT AVAILABLE)

19103-ME9-000

Unavailable

12

CAP, RESERVE TANK

19104-ME9-000

$16.36

13

RUBBER, RADIATOR

19112-ME9-000

Unavailable

14

RUBBER, RADIATOR SETTING

19113-MB0-000

Unavailable

15

COLLAR, RADIATOR SETTING

19114-MB0-000

Unavailable

16

HOSE, RADIATOR (LOWER) (NOT AVAILABLE)

19117-ME9-000

Unavailable

17

HOSE, FILLER NECK

19118-ME9-000

Unavailable

18

GUARD, RADIATOR HOSE (LOWER) This part replaces 19120-ME9-000.

19120-ME9-010

Unavailable

18

GUARD, RADIATOR HOSE (LOWER)

19120-ME9-010

Unavailable

19

CLAMP, WATER HOSE

19506-KA4-000

$9.18

20

SUB-WIRE HARNESS E (NOT AVAILABLE)

32105-ME9-000

Unavailable

21

REFLECTOR, FR. REFLEX This part replaces 33741-ME9-671.

33741-ME9-673

$17.74

21

REFLECTOR, FR. REFLEX This part replaces 33741-ME9-672.

33741-ME9-673

$17.74

21

REFLECTOR, FR. REFLEX

33741-ME9-673

$17.74

22

SWITCH ASSY., THERMO

37760-MC7-003

Unavailable

23

LABEL, RESERVE TANK

87507-ME9-670

Unavailable

24

MARK, RADIATOR CAUTION (NOT AVAILABLE)

87508-415-670

Unavailable

25

BOLT, FLANGE (6MM)

90111-162-000

$2.89

26

BOLT, FLANGE (6MM)

90116-ME9-000

$3.35

27

BOLT-WASHER (6X12)

93403-06012-07

$1.57

27

BOLT-WASHER (6X12) This part replaces 93483-06012-07.

93403-06012-07

$1.57

28

BOLT-WASHER (6X10)

93493-06010-07

Unavailable

29

NUT, FLANGE (6MM)

94050-06080

$1.49

30

CLIP, WIRE (2X78)

94591-27000

$2.92

31

CLIP, TUBE (C11)

95002-70000

$1.56

32

BULK HOSE, VACUUM (7X3000) (7X400)

95005-70003-30M

$23.45

33

BULK HOSE, VACUUM (7X3000) (7X800)

95005-70003-30M

$23.45

34

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

34

BOLT, FLANGE (6X40)

95701-06040-00

$1.80
