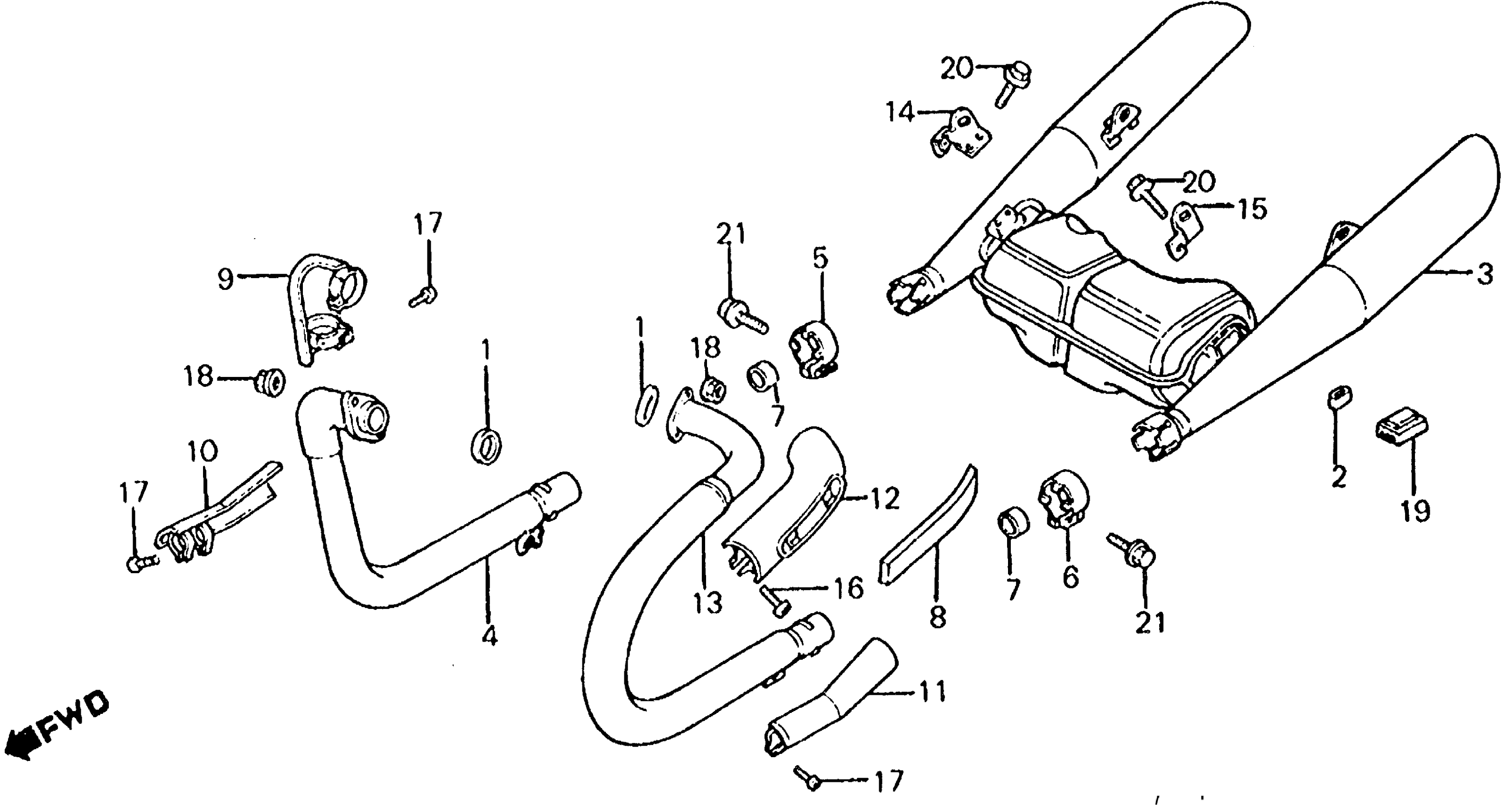

Honda VT750CA (83) SHADOW 750, JPN, VIN# JH2RC140-DM000035 TO JH2RC140-DM022807 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE This part replaces 18291-ME9-000.

18291-MM8-880

$7.16

1

GASKET, EX. PIPE This part replaces 18291-ME9-306.

18291-MM8-880

$7.16

1

GASKET, EX. PIPE

18291-MM8-880

$7.16

2

RUBBER, PROTECTOR GASKET

18293-ME9-000

$3.02

3

CHAMBER, EX. This part replaces 18300-ME9-671.

18300-ME9-771

Unavailable

3

CHAMBER, EX.

18300-ME9-771

Unavailable

4

PIPE, R. EX. (NOT AVAILABLE) This part replaces 18320-ME9-000.

18320-ME9-771

Unavailable

4

PIPE, R. EX. (NOT AVAILABLE)

18320-ME9-771

Unavailable

5

BAND, R. MUFFLER

18376-MB4-003

$41.21

5

BAND, R. MUFFLER This part replaces 18376-ME9-003.

18376-MB4-003

$41.21

6

BAND, L. MUFFLER

18377-MB4-003

$41.16

6

BAND, L. MUFFLER This part replaces 18377-ME9-003.

18377-MB4-003

$41.16

7

GASKET, RR. MUFFLER

18392-MJ4-670

$16.06

7

GASKET, RR. MUFFLER This part replaces 18392-449-000.

18392-MJ4-670

$16.06

8

PROTECTOR, EX. This part replaces 18413-ME9-670.

18413-MG8-000

Unavailable

8

PROTECTOR, EX.

18413-MG8-000

Unavailable

9

PROTECTOR, R. FR. EX. PIPE (NOT AVAILABLE) This part replaces 18415-ME9-000.

18415-ME9-771

Unavailable

9

PROTECTOR, R. FR. EX. PIPE (NOT AVAILABLE)

18415-ME9-771

Unavailable

10

PROTECTOR, R. RR. EX. PIPE (NOT AVAILABLE)

18416-ME9-000

Unavailable

11

PROTECTOR, L. RR. EX. PIPE

18417-ME9-000

Unavailable

12

PROTECTOR, L. FR. EX. PIPE This part replaces 18418-ME9-670.

18418-ME9-770

Unavailable

12

PROTECTOR, L. FR. EX. PIPE

18418-ME9-770

Unavailable

13

PIPE, L. EX. (NOT AVAILABLE) This part replaces 18420-ME9-000.

18420-ME9-771

Unavailable

13

PIPE, L. EX. (NOT AVAILABLE)

18420-ME9-771

Unavailable

14

BRACKET, R. EX. CHAMBER

18455-ME9-003

Unavailable

15

BRACKET, L. EX. CHAMBER

18456-ME9-003

Unavailable

16

SCREW, PAN (6X12)

93500-06012-0A

$1.49

17

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

17

SCREW, PAN (6X16)

93500-06016-0A

$1.49

18

NUT, FLANGE (6MM)

94050-06000

$1.49

19

RUBBER A, STAND STOPPER

95011-61000

$1.49

20

BOLT, FLANGE (6X10)

95700-06010-08

$1.61

20

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

21

BOLT, FLANGE (8X35) This part replaces 95700-08035-00.

95701-08035-00

$2.30

21

BOLT, FLANGE (8X35)

95701-08035-00

$2.30
