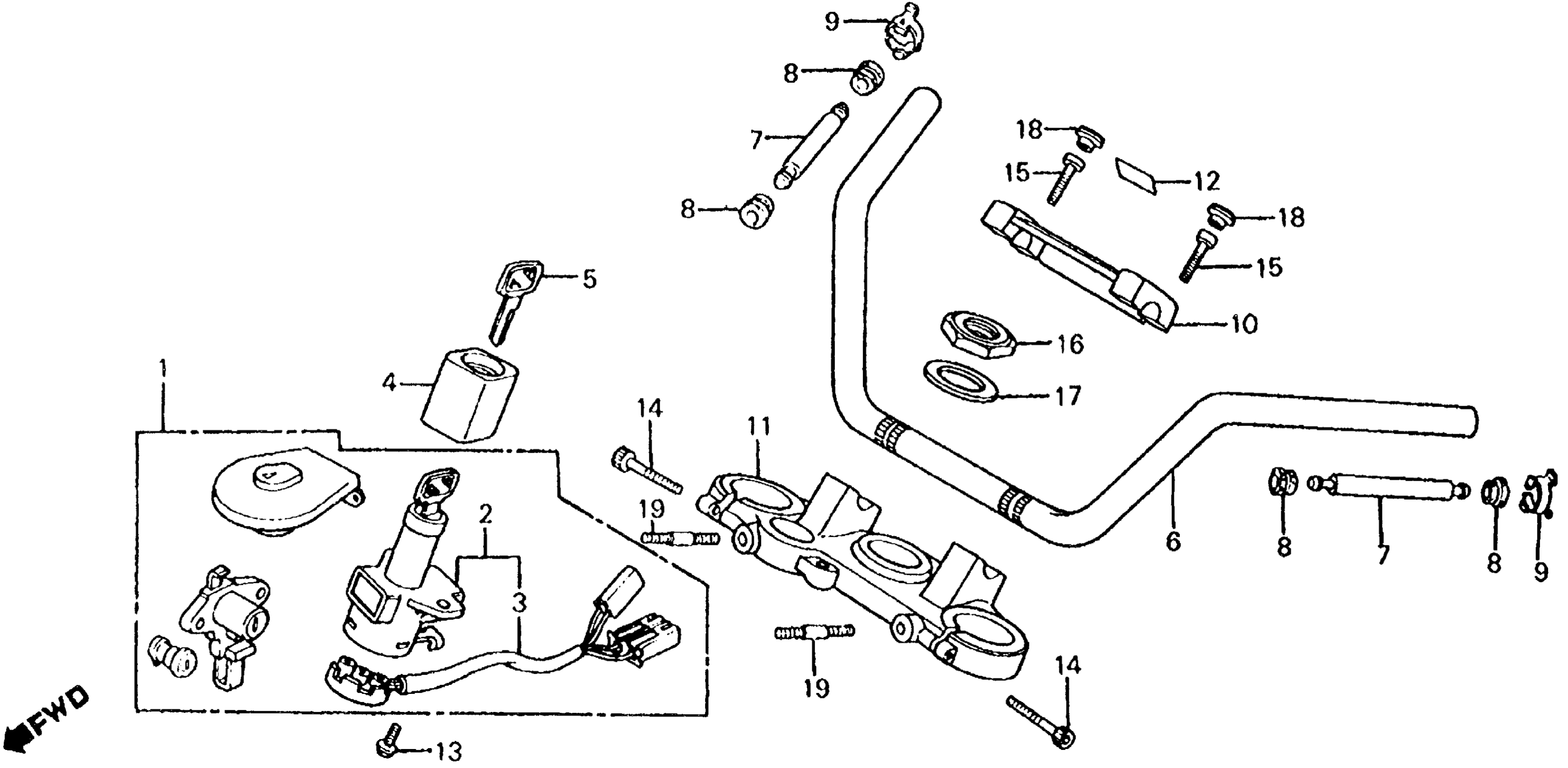

Honda VT750CA (83) SHADOW 750, JPN, VIN# JH2RC140-DM000035 TO JH2RC140-DM022807 HANDLEBAR + TOP BRIDGE Diagram

#

Description
Price

1

LOCK SET (NOT AVAILABLE) This part replaces 35010-ME9-000.

35010-ME9-030

Unavailable

1

LOCK SET (NOT AVAILABLE) This part replaces 35010-ME9-010.

35010-ME9-030

Unavailable

1

LOCK SET (NOT AVAILABLE) This part replaces 35010-ME9-020.

35010-ME9-030

Unavailable

1

LOCK SET (NOT AVAILABLE)

35010-ME9-030

Unavailable

2

SWITCH ASSY., COMBINATION & LOCK This part replaces 35100-ME9-000.

35100-MF8-000

Unavailable

2

SWITCH ASSY., COMBINATION & LOCK

35100-MF8-000

Unavailable

3

BASE, CONTACT

35101-ME9-007

Unavailable

4

COVER, COMBINATION SWITCH This part replaces 35105-ME9-003.

35105-MK7-000

Unavailable

4

COVER, COMBINATION SWITCH

35105-MK7-000

Unavailable

5

KEY, BLANK (TYPE1)

35121-KW3-771

$10.10

5

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) This part replaces 35121-MA6-811.

35121-KW3-771

$10.10

5

KEY, BLANK (TYPE2)

35122-KW3-771

$10.10

5

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) This part replaces 35122-MA6-811.

35122-KW3-771

$10.10

6

HANDLEBAR This part replaces 53100-ME9-670.

53100-ME9-671

Unavailable

6

HANDLEBAR

53100-ME9-671

Unavailable

7

WEIGHT, HANDLEBAR

53105-425-830

$13.85

8

RUBBER, HANDLEBAR WEIGHT (NOT AVAILABLE)

53107-425-000

Unavailable

9

RING, HANDLE WEIGHT SNAP

53108-MK4-000

Unavailable

9

RING, HANDLE WEIGHT SNAP This part replaces 53108-415-004.

53108-MK4-000

Unavailable

10

HOLDER, HANDLE (UPPER) (NOT AVAILABLE) This part replaces 53131-ME9-000.

53131-ME9-010

Unavailable

10

HOLDER, HANDLE (UPPER) (NOT AVAILABLE)

53131-ME9-010

Unavailable

11

BRIDGE, FORK TOP This part replaces 53230-ME9-000.

53230-ME9-610

Unavailable

11

BRIDGE, FORK TOP

53230-ME9-610

Unavailable

12

LABEL, FR. FORK CAUTION (NOT AVAILABLE)

87517-MB1-770

Unavailable

13

BOLT, FLANGE (8X19)

90104-MJ1-000

$6.31

13

BOLT, FLANGE (8X19) This part replaces 90105-MA6-000.

90104-MJ1-000

$6.31

14

BOLT, SOCKET (7X32)

90151-MB1-000

$6.52

15

BOLT, SOCKET (8X32)

90154-ME9-000

$5.73

16

NUT, STEERING STEM

90304-425-000

$9.69

17

WASHER, STEERING STEM

90503-425-000

$4.21

18

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.77

19

BOLT, STUD (6X60) This part replaces 92700-08040-1B.

92900-08028-1B

$2.26

19

BOLT, STUD (6X60)

92900-08028-1B

$2.26
