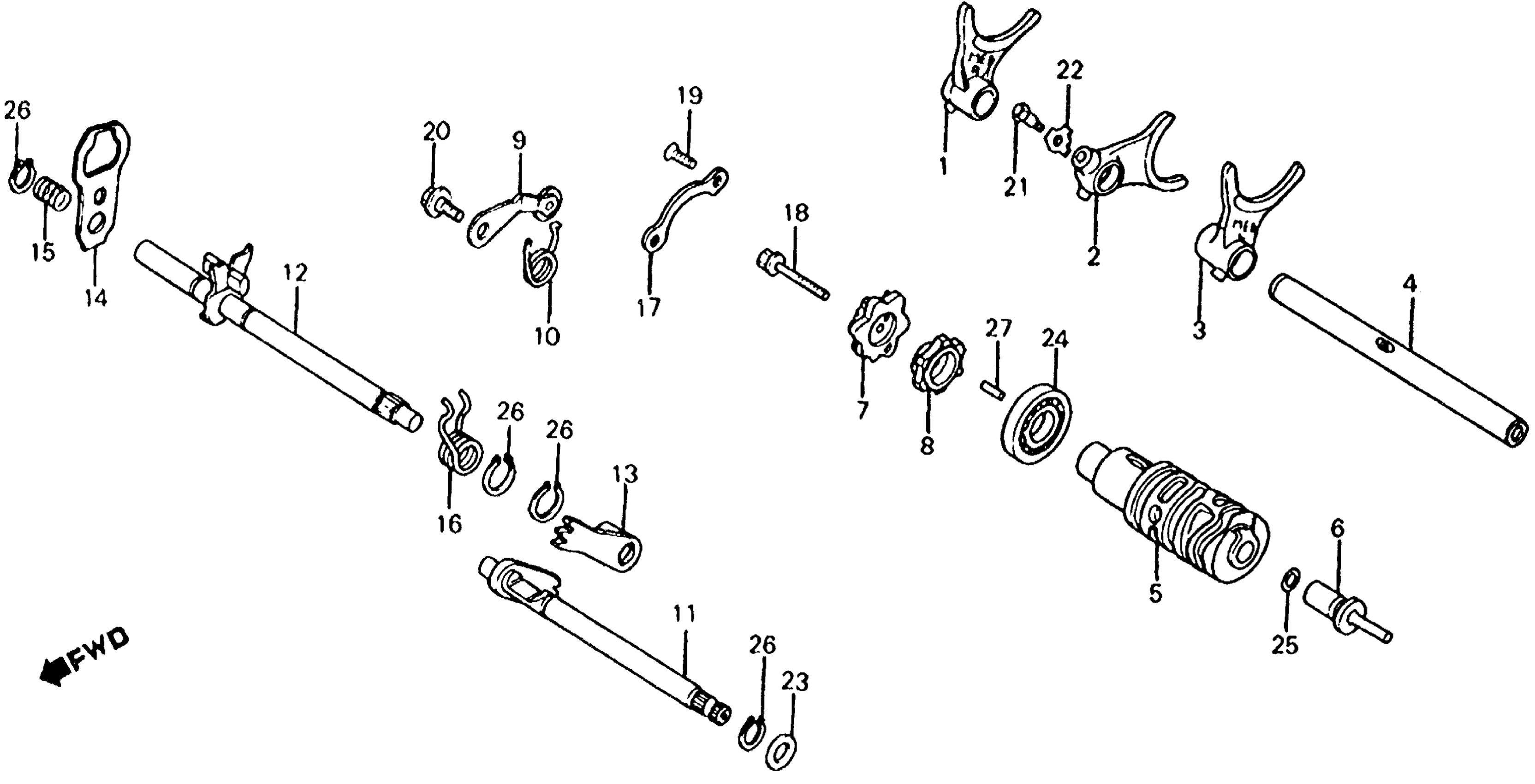

Honda VT750CA (83) SHADOW 750, JPN, VIN# JH2RC140-DM000035 TO JH2RC140-DM022807 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT This part replaces 24211-ME9-000.

24211-MG7-000

Unavailable

2

FORK, CENTER GEARSHIFT

24212-MB0-770

Unavailable

3

FORK, L. GEARSHIFT

24213-ME9-000

Unavailable

4

SHAFT, GEARSHIFT FORK

24261-ME9-000

Unavailable

5

DRUM, GEARSHIFT (NOT AVAILABLE)

24302-ME9-000

Unavailable

6

HOLDER, GEARSHIFT DRUM

24304-ME9-000

Unavailable

7

CAM, GEARSHIFT (NOT AVAILABLE)

24411-ME9-003

Unavailable

8

ROTOR, POSITIVE STOPPER

24413-KA6-003

Unavailable

9

STOPPER, GEARSHIFT DRUM (NOT AVAILABLE)

24430-ME9-000

Unavailable

10

SPRING, GEARSHIFT DRUM STOPPER

24435-ME9-000

Unavailable

11

SPINDLE, GEARSHIFT (A) (NOT AVAILABLE) This part replaces 24610-ME9-000.

24660-ME9-315

Unavailable

11

SPINDLE, GEARSHIFT (A) (NOT AVAILABLE) This part replaces 24610-ME9-010.

24660-ME9-315

Unavailable

11

SPINDLE, GEARSHIFT (A) (NOT AVAILABLE) This part replaces 24660-ME9-305.

24660-ME9-315

Unavailable

11

SPINDLE, GEARSHIFT (A) (NOT AVAILABLE)

24660-ME9-315

Unavailable

12

SPINDLE, GEARSHIFT (A) (NOT AVAILABLE) This part replaces 24610-ME9-000.

24660-ME9-315

Unavailable

12

SPINDLE, GEARSHIFT (A) (NOT AVAILABLE) This part replaces 24610-ME9-010.

24660-ME9-315

Unavailable

12

SPINDLE, GEARSHIFT (A) (NOT AVAILABLE) This part replaces 24615-ME9-000.

24660-ME9-315

Unavailable

12

SPINDLE, GEARSHIFT (A) (NOT AVAILABLE) This part replaces 24660-ME9-305.

24660-ME9-315

Unavailable

12

SPINDLE, GEARSHIFT (A) (NOT AVAILABLE)

24660-ME9-315

Unavailable

13

ARM B, GEARSHIFT (NOT AVAILABLE)

24618-ME9-000

Unavailable

14

PLATE, GEARSHIFT

24621-446-650

$13.10

15

SPRING, GEARSHIFT PLATE

24631-362-000

Unavailable

16

SPRING, GEARSHIFT RETURN (NOT AVAILABLE)

24651-ME9-000

Unavailable

17

PLATE, BEARING SETTING

24710-ME9-000

Unavailable

18

BOLT, FLANGE (6X32)

90021-ME9-000

$2.93

19

SCREW, FLAT (6X16)

90022-ME9-000

$2.30

20

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

20

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

21

BOLT, SPECIAL (7X18)

90041-MB0-000

$4.92

22

WASHER, LOCK

90407-MB0-000

$2.66

23

WASHER, THRUST (12.5MM) (NOT AVAILABLE)

90452-ME9-000

Unavailable

24

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$15.40

25

O-RING (10X1.6)

91301-200-000

$3.01

26

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

27

ROLLER (3X10)

96222-30100

$1.49
