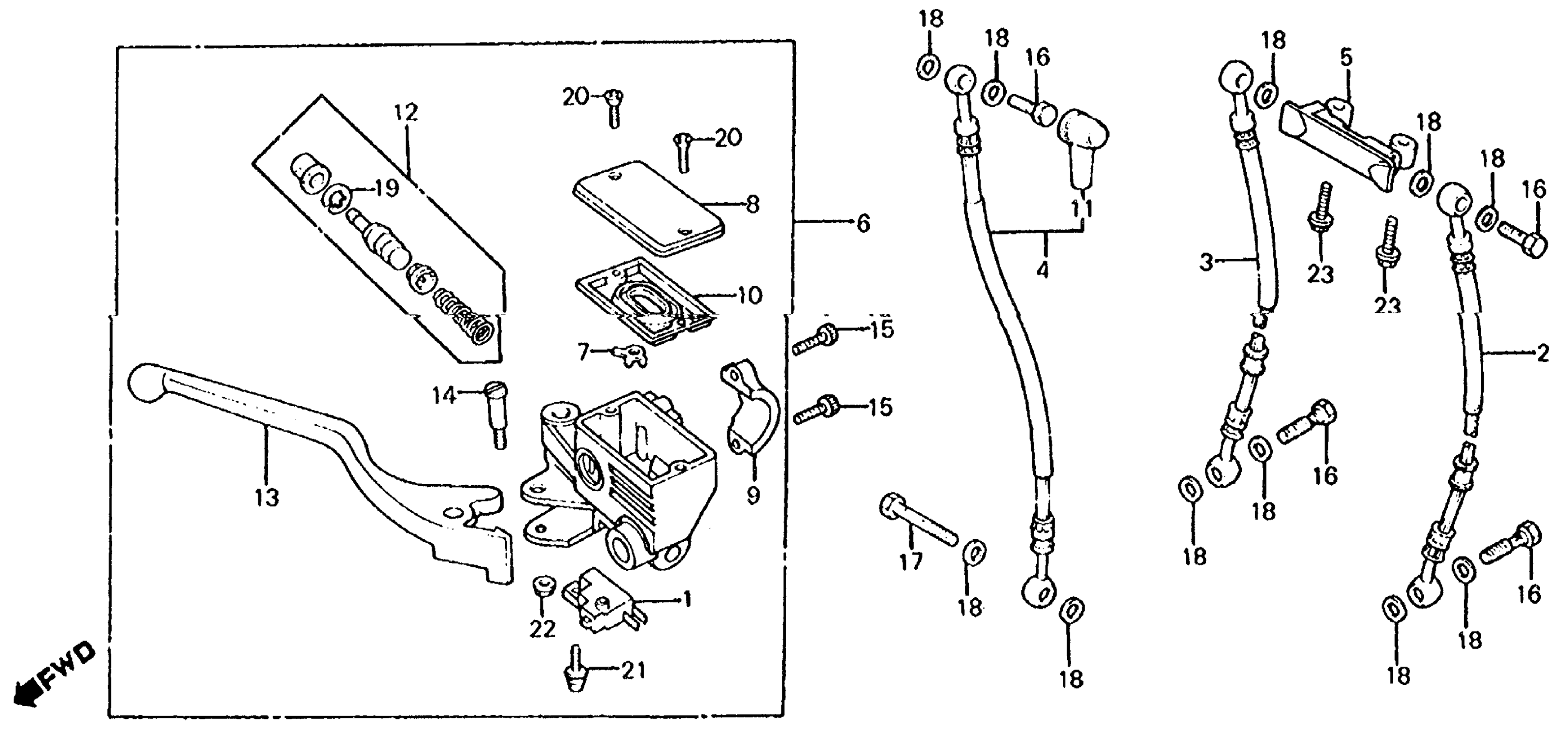

Honda VT750CA (83) SHADOW 750, JPN, VIN# JH2RC140-DM000035 TO JH2RC140-DM022807 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MA5-671

$24.51

2

HOSE, L. FR. BRAKE (NOT AVAILABLE) This part replaces 45124-ME9-003.

45124-ME9-013

Unavailable

2

HOSE, L. FR. BRAKE (NOT AVAILABLE)

45124-ME9-013

Unavailable

3

HOSE, R. FR. BRAKE (NOT AVAILABLE) This part replaces 45125-ME9-003.

45125-ME9-013

Unavailable

3

HOSE, R. FR. BRAKE (NOT AVAILABLE)

45125-ME9-013

Unavailable

4

HOSE, FR. BRAKE (NOT AVAILABLE) This part replaces 45126-ME9-003.

45126-ME9-013

Unavailable

4

HOSE, FR. BRAKE (NOT AVAILABLE)

45126-ME9-013

Unavailable

5

JOINT (TWO-WAY)

45127-ME9-000

Unavailable

6

MASTER CYLINDER ASSY., FR. BRAKE (NA USE ALT:45510-MB1-406)

45500-ME9-673

Unavailable

7

PROTECTOR

45512-MA6-006

$4.28

8

CAP

45540-MA6-621

Unavailable

9

HOLDER, MASTER CYLINDER

45517-MB0-006

Unavailable

10

DIAPHRAGM This part replaces 45520-MA5-671.

45520-MA5-672

$18.13

10

DIAPHRAGM

45520-MA5-672

$18.13

11

BOOT, MASTER CYLINDER

45522-422-000

$8.68

12

MASTER CYLINDER SET

45530-MA5-671

$71.69

13

LEVER, R. HANDLE This part replaces 53175-KE8-006.

53175-MK7-671

$17.88

13

LEVER, R. HANDLE This part replaces 53175-MJ6-006.

53175-MK7-671

$17.88

14

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

15

BOLT, SOCKET (6X23)

90117-MB0-000

Unavailable

16

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KE8-000.

90145-KM3-751

$11.02

16

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

16

BOLT, OIL (10X22)

90145-KM3-751

$11.02

16

BOLT, OIL (10X22)

90145-VM0-000

Unavailable

16

BOLT, OIL (10X22) (SAGA) This part replaces 90145-961-010.

90145-KM3-751

$11.02

17

BOLT, OIL (10X34) This part replaces 90145-MG5-670.

90145-MR8-014

$7.28

17

BOLT, OIL (10X34) This part replaces 90145-MR8-004.

90145-MR8-014

$7.28

18

WASHER, OIL BOLT

90545-300-000

$3.99

19

CIRCLIP

90651-MA5-671

$2.66

20

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

20

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

21

SCREW-WASHER (4X12)

93893-04012-08

$1.49

21

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

22

NUT, FLANGE (6MM)

94050-06000

$1.49

23

BOLT, FLANGE (6X28) This part replaces 95700-06028-07.

95701-06028-07

$1.49

23

BOLT, FLANGE (6X28)

95701-06028-07

$1.49
