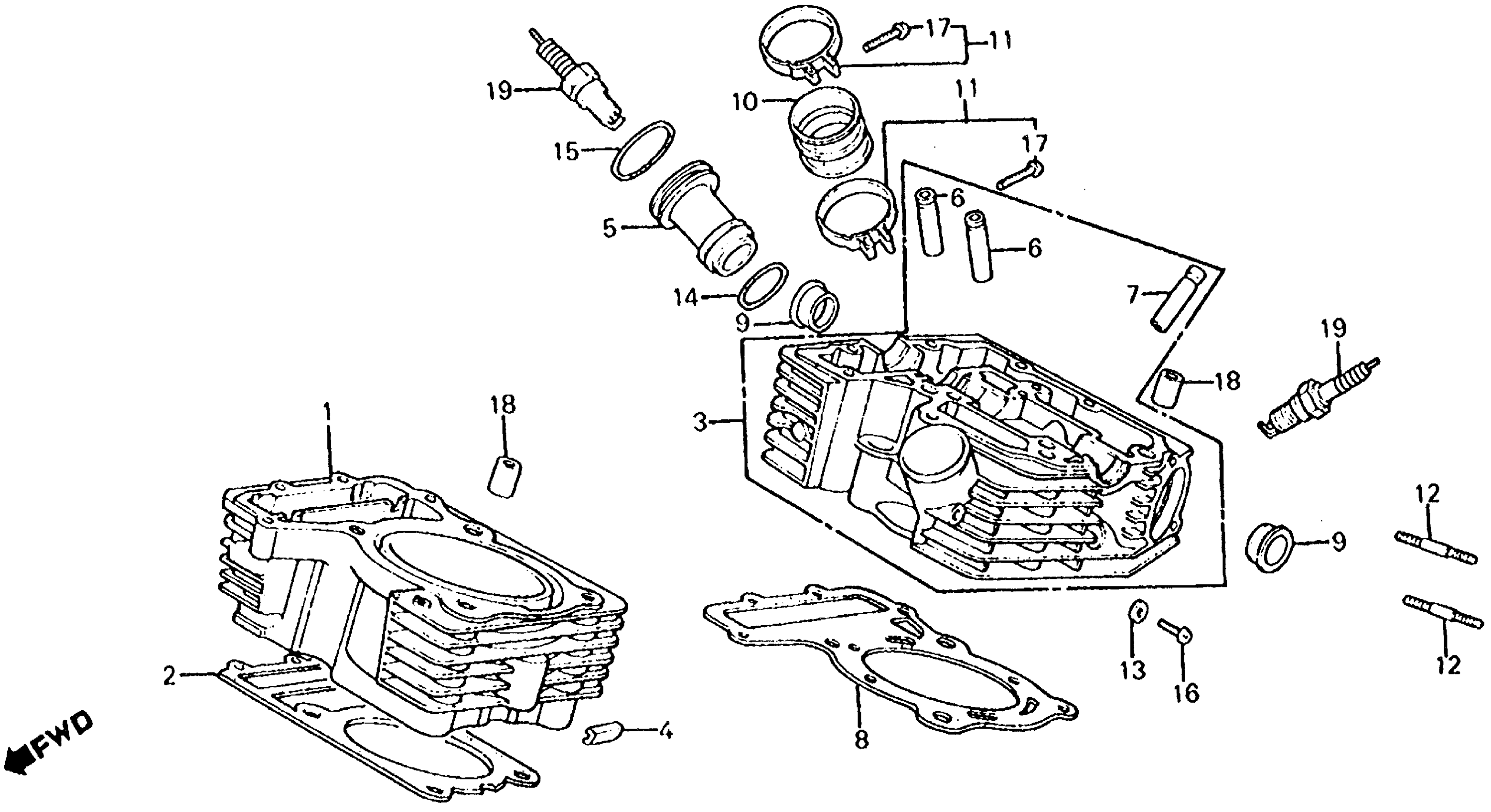

Honda VT750CA (83) SHADOW 750, JPN, VIN# JH2RC140-DM000035 TO JH2RC140-DM022807 CYLINDER + REAR CYLINDER HEAD Diagram

CYLINDER B (NOT AVAILABLE)

12110-ME9-000

Unavailable

GASKET, CYLINDER

12191-ME9-305

$10.13

CYLINDER HEAD B (NOT AVAILABLE)

12220-ME9-000

Unavailable

RUBBER, BREATHER TUBE (NOT AVAILABLE)

12221-ME9-000

Unavailable

SLEEVE, PLUG

12225-ME9-000

Unavailable

GUIDE, VALVE This part replaces 12231-ME9-305.

12231-MG8-305

$20.08

GUIDE, VALVE

12231-MG8-305

$20.08

GUIDE, IN VALVE This part replaces 12233-ME9-305.

12233-MG8-405

Unavailable

GUIDE, IN VALVE

12233-MG8-405

Unavailable

GASKET SET, CYLINDER HEAD

12250-ME9-305

Unavailable

GASKET SET, CYLINDER HEAD This part replaces 12251-ME9-000.

12250-ME9-305

Unavailable

PLUG, CAMSHAFT

12312-428-000

$12.69

INSULATOR, CARBURETOR

16211-ME9-000

$24.67

BAND, INSULATOR

16219-ME9-000

$10.37

BOLT, STUD (6X28)

90035-ME9-000

Unavailable

WASHER, SEALING (5MM)

90452-323-000

$1.59

O-RING (27.4X2.4) (ARAI)

91302-567-003

$7.96

O-RING (27.4X2.4) (ARAI)

91304-MG7-003

$6.45

O-RING (35X3)

91351-689-000

$3.49

SCREW, PAN (5X8)

93500-05008-0A

$1.49

SCREW, PAN (5X25)

93500-05025-0G

$1.49

PIN A, DOWEL (14X20)

94301-14200

$2.28

SPARK PLUG (DPR7EA-9) (NGK)

98069-57916

$2.62

SPARK PLUG (X22EPR-U9) (DENSO)

98069-57926

$2.54

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.54

SPARK PLUG (DPR9EA-9) (NGK)

98069-59916

$2.62

SPARK PLUG (X27EPR-U9) (DENSO)

98069-59926

$2.54
