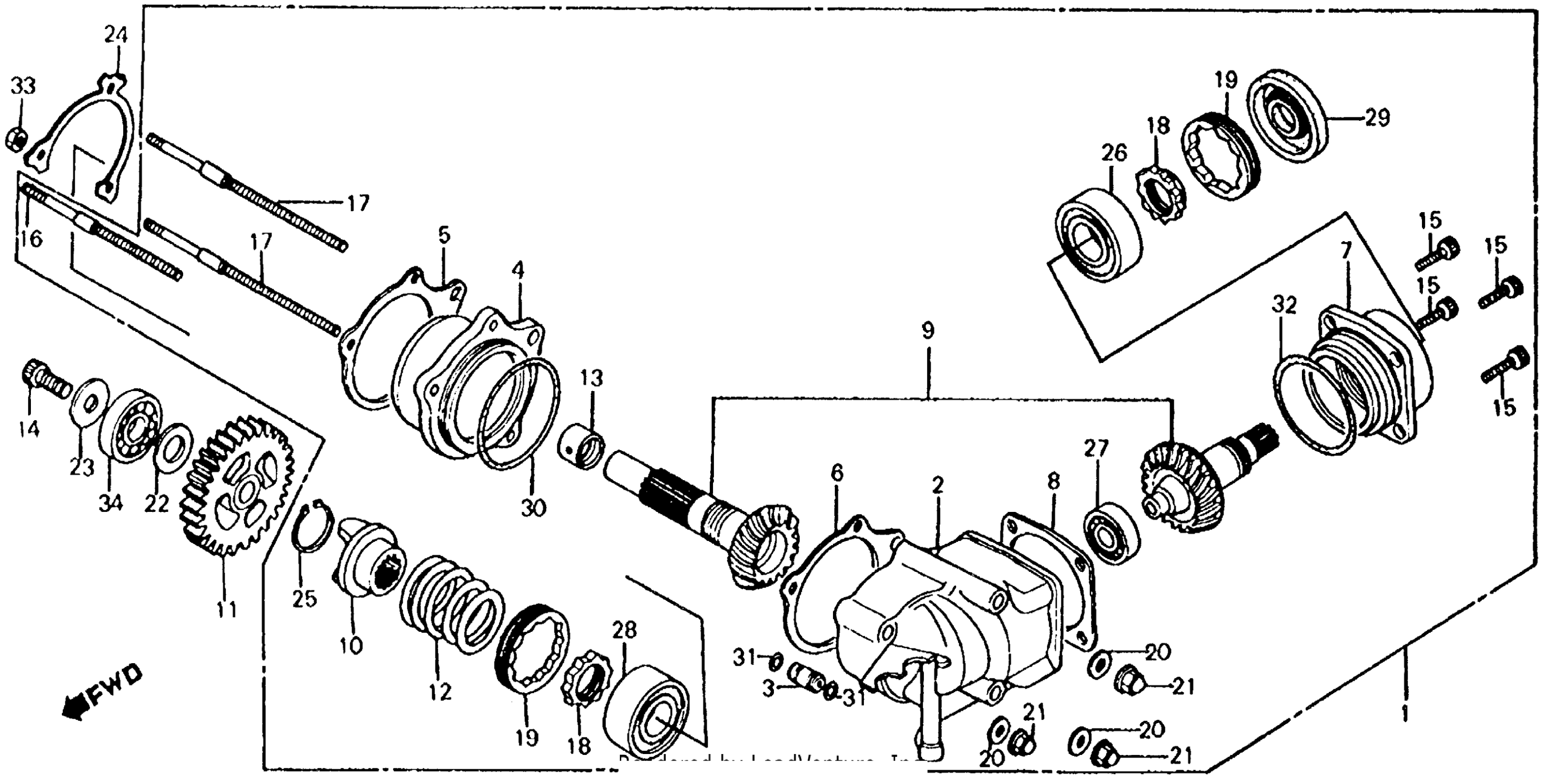

Honda VT750CA (83) SHADOW 750, JPN, VIN# JH2RC140-DM000035 TO JH2RC140-DM022807 CROSS SHAFT Diagram

#

Description
Price

1

CASE ASSY., SIDE GEAR

21100-ME9-000

Unavailable

2

CASE, SIDE GEAR

21200-ME9-000

Unavailable

3

ORIFICE, SIDE GEAR CASE

21215-ME9-000

$9.61

4

HOLDER, FINAL DRIVESHAFT BEARING

21281-ME9-000

Unavailable

5

GASKET, FINAL DRIVESHAFT BEARING HOLDER (NOT AVAILABLE)

21294-ME9-000

Unavailable

6

SHIM, FINAL DRIVESHAFT (0.40) (N/A: SEE ASSEMBLY)

21311-ME9-000

Unavailable

6

SHIM, FINAL DRIVESHAFT (0.45)

21312-ME9-000

Unavailable

6

SHIM, FINAL DRIVESHAFT (0.50)

21313-ME9-000

Unavailable

6

SHIM, FINAL DRIVESHAFT (0.55)

21314-ME9-000

Unavailable

6

SHIM, FINAL DRIVESHAFT (0.60)

21315-ME9-000

Unavailable

7

HOLDER, CROSS SHAFT BEARING

21371-MB0-000

Unavailable

8

SHIM, CROSS SHAFT (0.40)

21381-MB0-770

$25.25

8

SHIM, CROSS SHAFT (0.45)

21382-MB0-770

$25.25

8

SHIM, CROSS SHAFT (0.50)

21383-MB0-770

$25.25

8

SHIM, CROSS SHAFT (0.55)

21384-MB0-770

$25.25

8

SHIM, CROSS SHAFT (0.60)

21385-MB0-770

$25.25

9

SHAFT SET, CROSS

23200-ME9-000

Unavailable

10

LIFTER, DAMPER

23721-ME9-000

$76.34

11

GEAR, DAMPER SHAFT (29T)

23726-ME9-000

Unavailable

12

SPRING, DAMPER

23732-ME9-000

Unavailable

13

COLLAR (20X24X18.5)

23733-ME9-000

Unavailable

14

BOLT, SPECIAL (10MM)

90037-ME9-000

$7.25

15

BOLT, SOCKET (8X22)

90061-MB0-000

$5.44

16

BOLT, STUD (8X113) This part replaces 90062-ME9-003.

90062-MG7-000

Unavailable

16

BOLT, STUD (8X113)

90062-MG7-000

Unavailable

17

BOLT, STUD (8X146)

90063-ME9-003

Unavailable

18

NUT, LOCK (30MM)

90241-MB0-000

$21.10

19

NUT, LOCK (64MM)

90242-MB0-000

$32.52

20

WASHER, SEALING (8MM)

90441-ME9-000

$2.61

21

NUT, CAP (8MM)

90443-KF9-900

$4.27

21

NUT, CAP (8MM) This part replaces 90443-379-690.

90443-KF9-900

$4.27

22

WASHER, THRUST (20MM)

90451-426-000

$4.88

23

WASHER (10.2MM)

90459-438-000

$5.83

24

WASHER, TONGUED

90581-ME9-000

Unavailable

25

CIRCLIP (OUTER) (28MM)

90602-463-000

$3.64

26

BEARING, RADIAL BALL (5206) This part replaces 91008-300-008.

91012-MG7-003

$95.20

27

BEARING, BALL (6303) (KOYO)

91011-MB0-003

$30.64

27

BEARING, BALL (6303) (KOYO) This part replaces 91011-MB0-004.

91011-MB0-003

$30.64

28

BEARING, RADIAL BALL (5206) This part replaces 91012-MB0-003.

91012-MG7-003

$95.20

28

BEARING, RADIAL BALL (5206)

91012-MG7-003

$95.20

29

OIL SEAL (25X66X8.5)

91205-MB0-000

$19.92

29

OIL SEAL (25X66X8.5) (ARAI) This part replaces 91205-MB0-771.

91205-MG7-003

$18.78

29

OIL SEAL (25X66X8.5) (ARAI)

91205-MG7-003

$18.78

30

O-RING (64.5X3) (ARAI) This part replaces 91305-634-961.

91310-MG7-003

$9.98

30

O-RING (64.5X3) (ARAI)

91310-MG7-003

$9.98

31

O-RING (4.8X1.9) (NOK) O-RING (7.7X2.3) (ARAI) This part replaces 91307-422-000.

91313-MA6-005

$2.61

31

O-RING (4.8X1.9) (NOK)

91313-MA6-005

$2.61

32

O-RING (69.5X3) (ARAI)

91314-MG7-003

$9.24

32

O-RING (69.5X3) (ARAI) This part replaces 91314-MJ0-000.

91314-MG7-003

$9.24

32

O-RING (69.5X3) (ARAI) This part replaces 91314-300-000.

91314-MG7-003

$9.24

33

NUT, HEX. (8MM)

94030-08000

$1.49

33

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

34

BEARING, RADIAL BALL (6304)

96100-63040-00

$14.40
