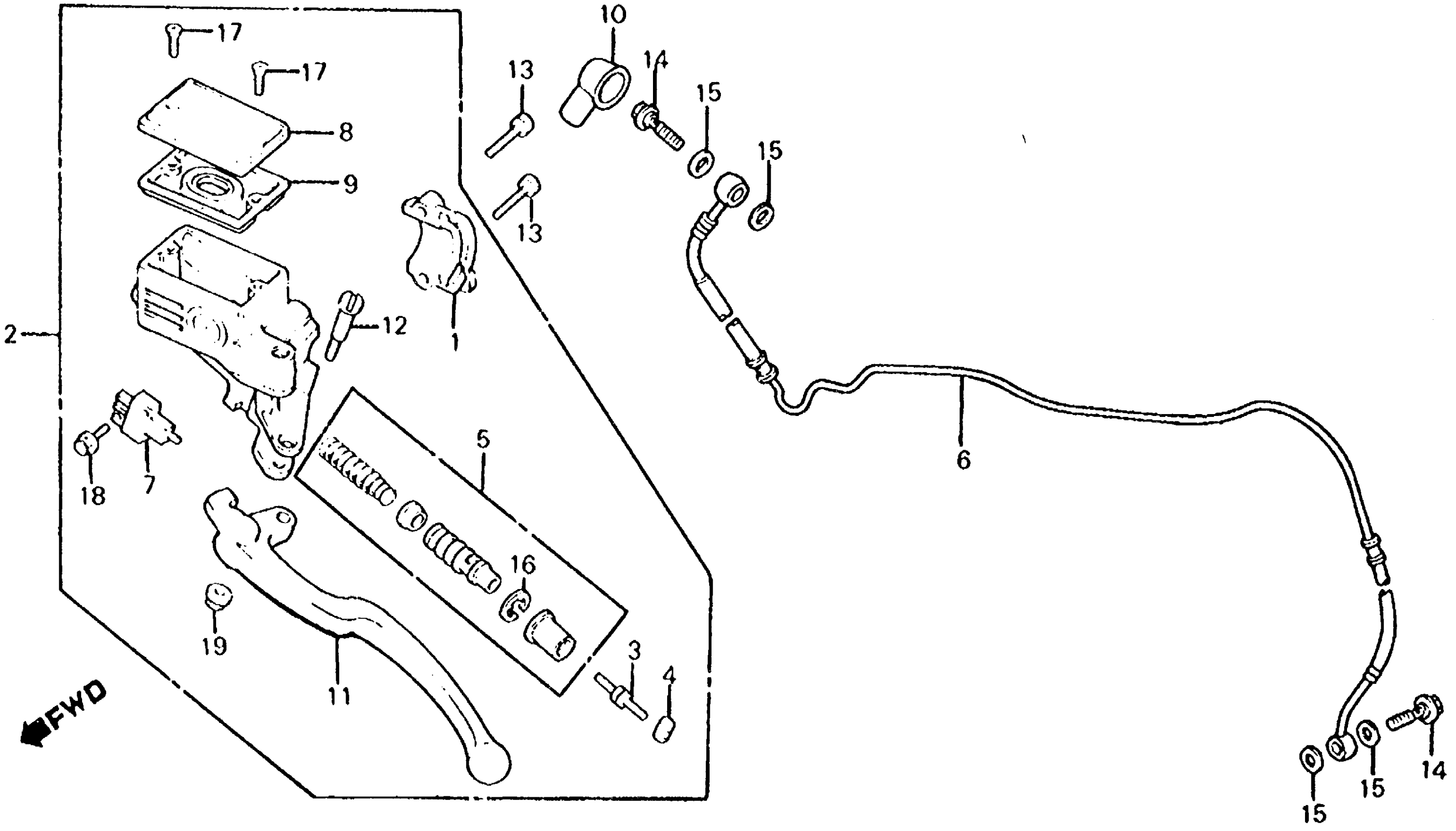

Honda VT750CA (83) SHADOW 750, JPN, VIN# JH2RC140-DM000035 TO JH2RC140-DM022807 CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

HOLDER, CHOKE LEVER This part replaces 17963-MB0-000.

17963-ME8-000

Unavailable

1

HOLDER, CHOKE LEVER (FOR A 8MM SYSTEM) (NOT AVAILABLE)

17963-MB0-010

Unavailable

1

HOLDER, CHOKE LEVER

17963-ME8-000

Unavailable

2

MASTER CYLINDER, CLUTCH (FOR A 6MM SYSTEM) (NOT AVAILABLE)

22880-ME9-315

Unavailable

2

MASTER CYLINDER ASSY., CLUTCH (FOR A 8MM SYSTEM) (NOT AVAILABLE)

22880-ME9-673

Unavailable

3

ROD, PUSH

22884-MB0-006

$18.97

4

BUSH

22885-MB0-006

$11.88

5

PISTON SET, CLUTCH MASTER CYLINDER

22886-MB0-305

$68.24

6

PIPE, CLUTCH (NOT AVAILABLE) This part replaces 22900-ME9-003.

22900-ME9-013

Unavailable

6

PIPE, CLUTCH (NOT AVAILABLE)

22900-ME9-013

Unavailable

7

SWITCH ASSY., CLUTCH

35330-MB0-003

$16.71

8

CAP

45540-MA6-621

Unavailable

9

DIAPHRAGM This part replaces 45520-MA5-671.

45520-MA5-672

$16.64

9

DIAPHRAGM

45520-MA5-672

$16.64

10

BOOT, MASTER CYLINDER

45522-422-000

$7.99

11

LEVER, L. HANDLEBAR

53178-KE8-006

$22.74

12

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

Unavailable

13

BOLT, SOCKET (6X23)

90117-MB0-000

Unavailable

14

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KE8-000.

90145-KM3-751

$10.11

14

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$10.11

14

BOLT, OIL (10X22)

90145-KM3-751

$10.11

14

BOLT, OIL (10X22)

90145-VM0-000

Unavailable

14

BOLT, OIL (10X22) (SAGA) This part replaces 90145-961-010.

90145-KM3-751

$10.11

15

WASHER, OIL BOLT

90545-300-000

$5.79

16

CIRCLIP (INNER) (18MM)

90651-377-003

$1.79

17

SCREW, FLAT (4X12)

93600-04012-0G

$0.90

17

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.90

18

SCREW-WASHER (4X12)

93893-04012-07

$1.32

18

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

19

NUT, FLANGE (6MM)

94050-06000

$0.60
