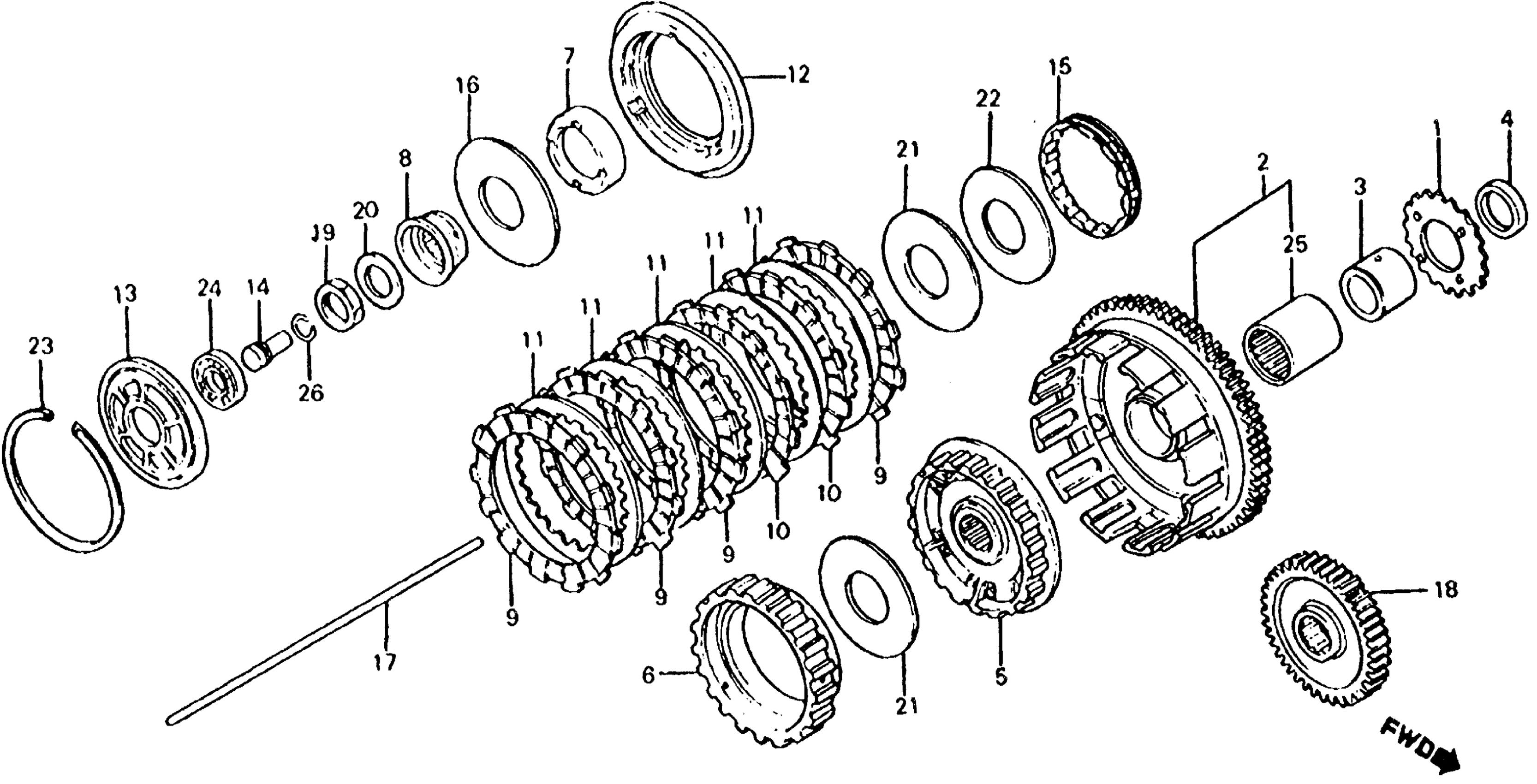

Honda VT750CA (83) SHADOW 750, JPN, VIN# JH2RC140-DM000035 TO JH2RC140-DM022807 CLUTCH Diagram

#

Description
Price

1

SPROCKET, OIL PUMP DRIVE (26T) (NOT AVAILABLE)

15131-MB0-000

Unavailable

2

CLUTCH (OUTER) (NOT AVAILABLE) This part replaces 22100-ME9-000.

22100-MN2-000

Unavailable

3

GUIDE, CLUTCH (OUTER)

22116-MB0-000

$33.77

4

SPACER (8MM)

22117-ME9-000

Unavailable

5

CENTER A, CLUTCH

22120-MB0-770

Unavailable

6

CENTER B, CLUTCH This part replaces 22131-MB0-770.

22131-MJ0-010

Unavailable

6

CENTER B, CLUTCH

22131-MJ0-010

Unavailable

7

INNER, ONE-WAY CLUTCH

22141-MB0-770

Unavailable

8

PLATE, SPRING SETTING

22151-MB0-770

Unavailable

9

DISK, CLUTCH FRICTION This part replaces 22201-MB0-003.

22201-MM5-000

$28.39

9

DISK, CLUTCH FRICTION

22201-MM5-000

$28.39

10

DISK A, CLUTCH FRICTION This part replaces 22201-ME9-000.

22201-MG8-010

$29.93

10

DISK A, CLUTCH FRICTION This part replaces 22201-MG8-000.

22201-MG8-010

$29.93

10

DISK A, CLUTCH FRICTION

22201-MG8-010

$29.93

11

PLATE, CLUTCH

22321-MG8-000

$15.44

11

PLATE, CLUTCH This part replaces 22321-283-000.

22321-MG8-000

$15.44

12

PLATE, CLUTCH PRESSURE (NOT AVAILABLE) | Use up to Engine SN 2021755

22351-MB0-770

Unavailable

12

PLATE, CLUTCH PRESSURE | Use from Engine SN 2021756

22351-MB0-771

Unavailable

13

PLATE, CLUTCH LIFTER

22352-MB0-770

Unavailable

14

PIECE, CLUTCH JOINT (NOT AVAILABLE)

22366-MB0-000

Unavailable

15

CLUTCH, ONE-WAY

22425-MB0-772

Unavailable

16

SPRING, CLUTCH

22441-MB0-771

Unavailable

17

ROD, CLUTCH LIFTER (NOT AVAILABLE)

22850-ME9-000

Unavailable

18

GEAR, PRIMARY DRIVE

23103-ME9-000

Unavailable

19

NUT, LOCK (22MM)

90201-MB0-770

Unavailable

20

WASHER, SPRING (22MM) This part replaces 90432-MB0-000.

90432-MB0-010

$9.93

20

WASHER, SPRING (22MM)

90432-MB0-010

$9.93

21

WASHER (44X85X1.6) This part replaces 90461-MB0-770.

90461-MJ0-000

Unavailable

21

WASHER (44X85X1.6)

90461-MJ0-000

Unavailable

22

WASHER (44X74X3.2) This part replaces 90462-MB0-770.

90462-MJ0-000

Unavailable

22

WASHER (44X74X3.2)

90462-MJ0-000

Unavailable

23

CIRCLIP (INNER) (95MM) (NOT AVAILABLE) | Use up to Engine SN 2021755

90601-MB0-770

Unavailable

23

CIRCLIP (INNER) (95MM) | Use from Engine SN 2021756

90601-MB0-771

$11.30

24

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$15.40

25

BEARING, NEEDLE (35X42X30) (TOYO)

91024-MB0-003

$86.11

25

BEARING, NEEDLE (35X42X30) (TOYO) This part replaces 91024-MB0-004.

91024-MB0-003

$86.11

26

CLIP, PISTON PIN (15MM)

94601-15000

$1.49
