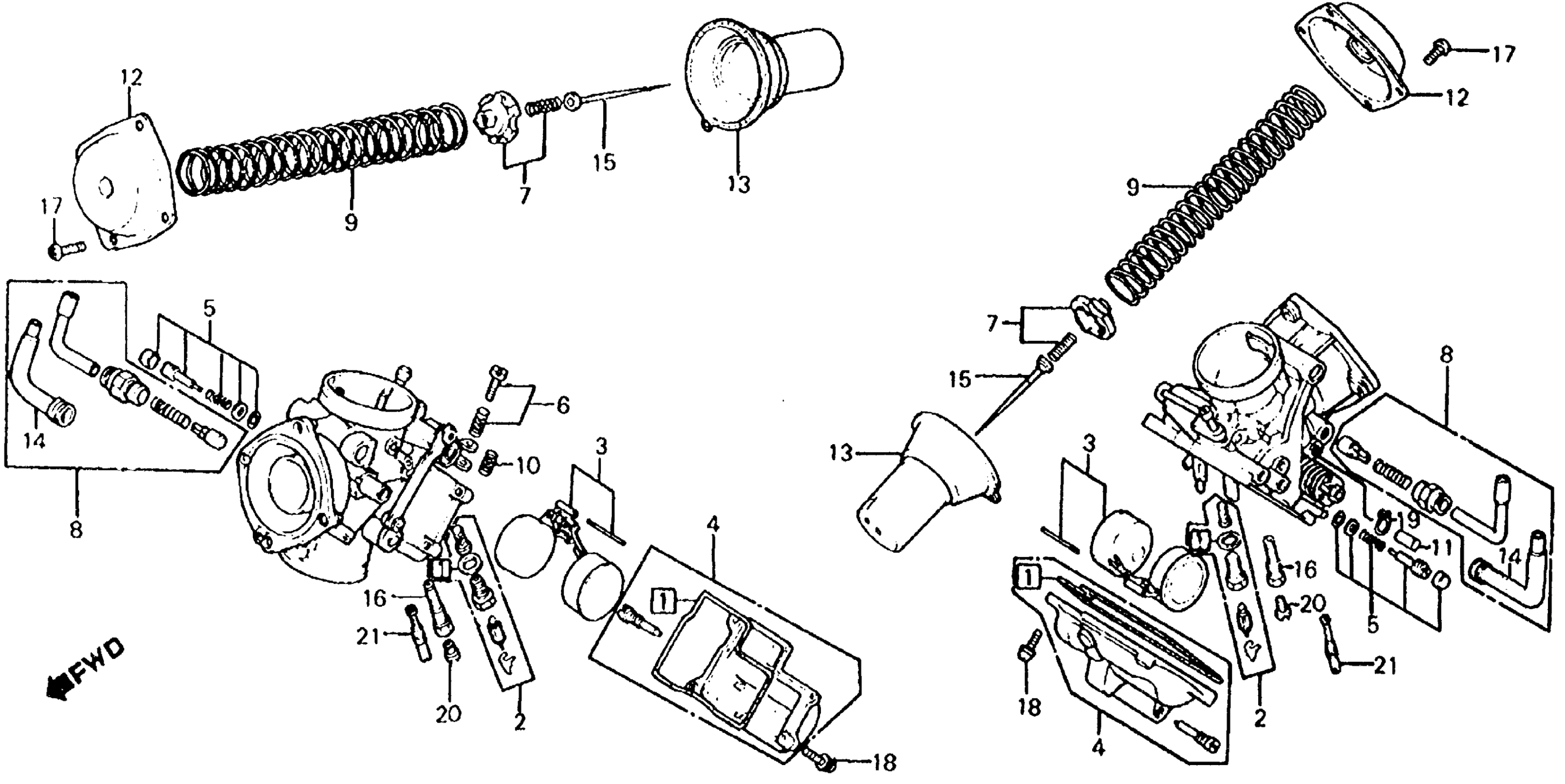

Honda VT750CA (83) SHADOW 750, JPN, VIN# JH2RC140-DM000035 TO JH2RC140-DM022807 CARBURETOR COMPONENT Diagram

#

Description
Price

1

GASKET SET

16010-MB6-305

$57.49

1

GASKET SET This part replaces 16010-ME9-671.

16010-MB6-305

$57.49

1

GASKET SET This part replaces 16010-ME9-672.

16010-MB6-305

$57.49

1

GASKET SET This part replaces 16010-ME9-721.

16010-MB6-305

$57.49

2

VALVE SET, FLOAT This part replaces 16011-MB0-671.

16011-MR6-671

$63.64

2

VALVE SET, FLOAT

16011-MR6-671

$63.64

3

FLOAT SET

16013-MB0-671

$55.07

4

CHAMBER SET, FLOAT This part replaces 16015-ME9-671.

16023-MR5-671

Unavailable

4

CHAMBER SET, FLOAT This part replaces 16015-MG8-721.

16023-MR5-671

Unavailable

4

CHAMBER SET, FLOAT This part replaces 16015-MG8-771.

16023-MR5-671

Unavailable

4

CHAMBER SET, FLOAT This part replaces 16015-MR5-601.

16023-MR5-671

Unavailable

5

SCREW SET A This part replaces 16016-MB0-671.

16016-ME3-003

Unavailable

5

SCREW SET A

16016-ME3-003

Unavailable

5

SCREW SET A This part replaces 16016-ME9-671.

16016-ME3-003

Unavailable

6

SCREW SET C

16029-MB0-671

Unavailable

7

PLATE SET, VALVE

16037-ME9-671

Unavailable

8

VALVE SET, STARTER This part replaces 16046-ME9-671.

16046-ME9-672

Unavailable

8

VALVE SET, STARTER

16046-ME9-672

Unavailable

9

SPRING, VACUUM PISTON

16050-ME9-671

Unavailable

10

SPRING This part replaces 16052-ME9-671.

16052-ME9-672

$5.67

10

SPRING

16052-ME9-672

$5.67

11

CAP

16097-ME9-671

Unavailable

12

TOP

16107-ME9-671

Unavailable

13

PISTON, VACUUM

16111-ME9-671

Unavailable

14

CAP, CABLE SEALING

16118-ME9-671

$14.18

15

NEEDLE, JET (NOT AVAILABLE)

16131-ME9-671

Unavailable

16

HOLDER, NEEDLE JET This part replaces 16165-ME9-671.

16165-MZ8-R10

Unavailable

17

SCREW, PAN (4X10)

93500-04010-0H

$1.49

17

SCREW, PAN (4X10) This part replaces 93500-04010-1H.

93500-04010-0H

$1.49

18

SCREW-WASHER (4X12)

93892-04014-00

$1.49

18

SCREW-WASHER (4X12) This part replaces 93892-04014-10.

93892-04014-00

$1.49

19

CLIP, TUBE (B7)

95002-02070

$1.80

20

JET, MAIN (#118) This part replaces 99101-GHB-1180.

99101-MBZ-1180

$10.56

20

JET, MAIN (#118) This part replaces 99101-393-1180.

99101-MBZ-1180

$10.56

21

JET, SLOW (#40) This part replaces 99103-437-0400.

99103-MAL-0400

$11.26
