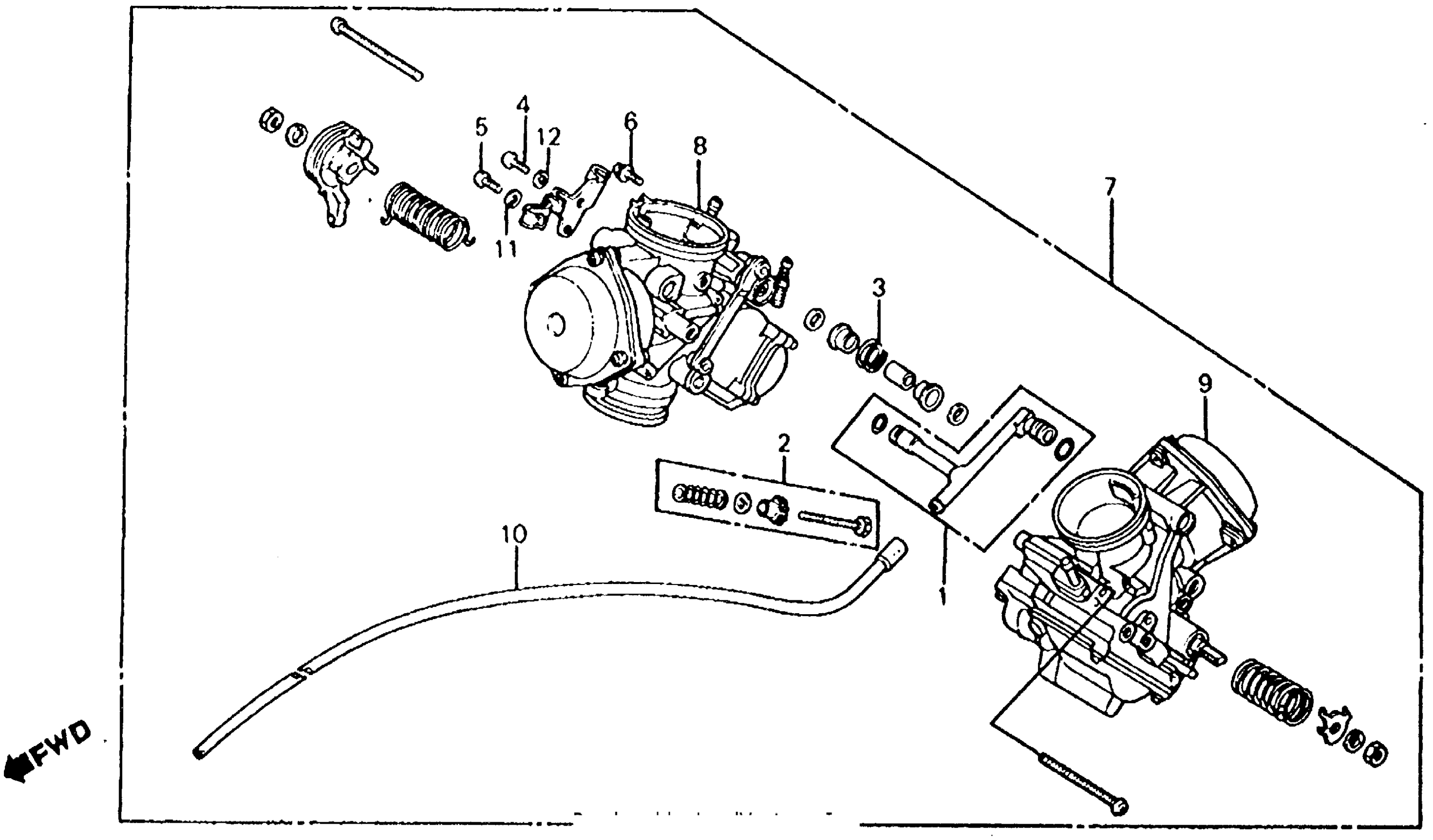

Honda VT750CA (83) SHADOW 750, JPN, VIN# JH2RC140-DM000035 TO JH2RC140-DM022807 CARBURETOR ASSY. Diagram

JOINT SET

16026-ME9-671

Unavailable

SCREW SET This part replaces 16028-KM9-711.

16028-MAH-000

$55.95

SCREW SET

16028-MAH-000

$55.95

SCREW SET This part replaces 16028-ME9-671.

16028-MAH-000

$55.95

SPRING This part replaces 16053-ME9-671.

16053-ME9-672

Unavailable

SPRING

16053-ME9-672

Unavailable

SPRING This part replaces 16053-MG7-601.

16053-ME9-672

Unavailable

SCREW, PAN

16080-ME9-671

Unavailable

BOLT, HEX. This part replaces 16081-ME9-671.

16081-MR1-004

Unavailable

BOLT, HEX.

16081-MR1-004

Unavailable

SCREW, PAN

16082-ME9-671

Unavailable

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-ME9-671.

16100-ME9-672

Unavailable

CARBURETOR ASSY. (NOT AVAILABLE)

16100-ME9-672

Unavailable

CARBURETOR ASSY. 1 (NOT AVAILABLE)

16101-ME9-671

Unavailable

CARBURETOR ASSY. 2 (NOT AVAILABLE)

16102-ME9-671

Unavailable

TUBE

16144-MM8-004

Unavailable

TUBE This part replaces 16144-MM8-405.

16144-MM8-004

Unavailable

TUBE This part replaces 16199-ME9-671.

16144-MM8-004

Unavailable

WASHER, SPRING (4MM)

94111-04800

$1.49

WASHER, SPRING (5MM)

94111-05000

$1.49
