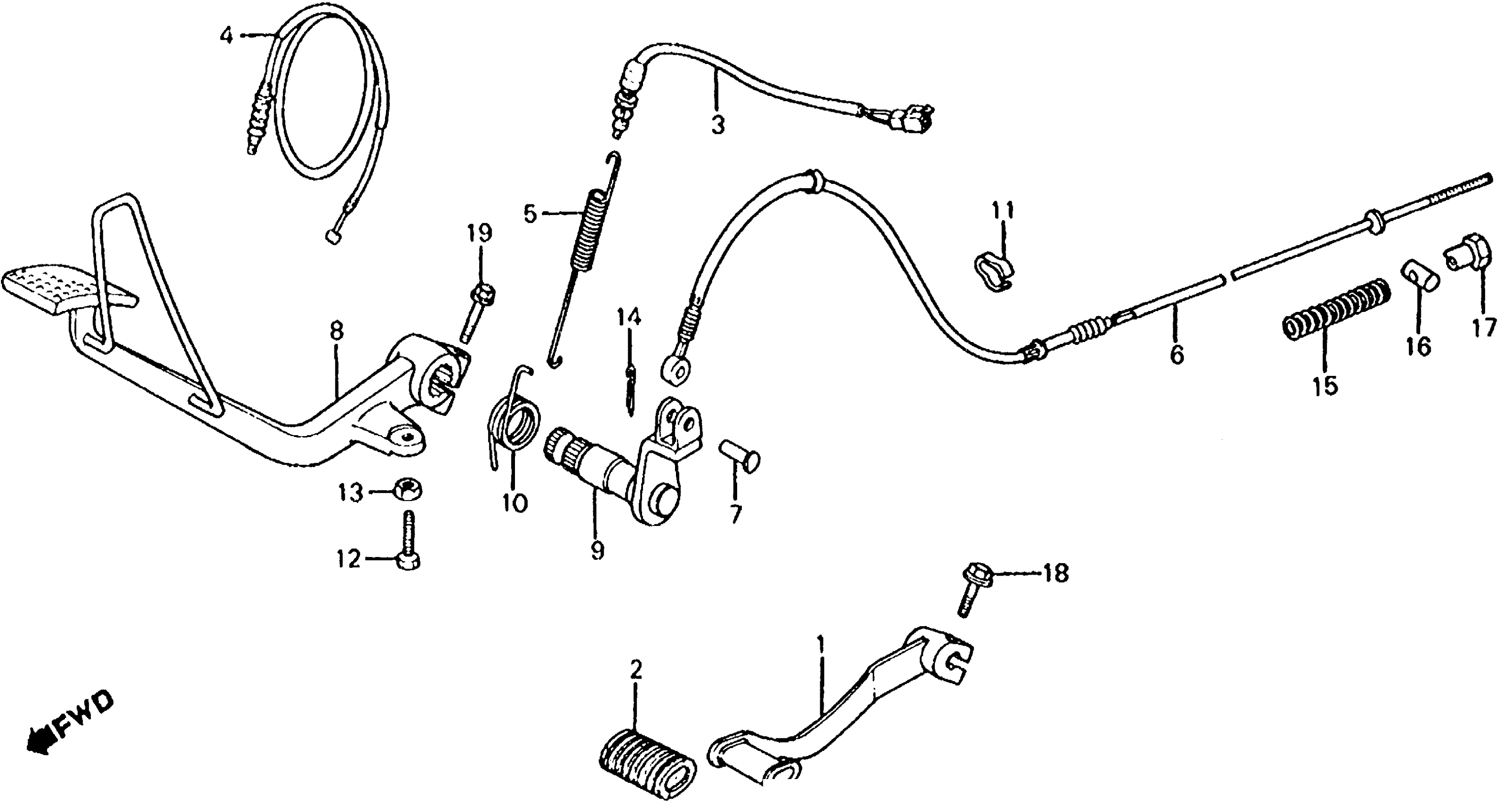

Honda VT750CA (83) SHADOW 750, JPN, VIN# JH2RC140-DM000035 TO JH2RC140-DM022807 BRAKE PEDAL + CHANGE PEDAL Diagram

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-ME9-670

Unavailable

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.62

SWITCH ASSY., RR. STOP This part replaces 35350-MB0-000.

35350-ME9-405

Unavailable

SWITCH ASSY., RR. STOP

35350-ME9-405

Unavailable

SWITCH ASSY., RR. STOP This part replaces 35350-ME9-770.

35350-ME9-405

Unavailable

CABLE, RR. STOP

35355-ME9-003

Unavailable

SPRING, STOP SWITCH

35357-ME9-000

$4.74

CABLE, RR. BRAKE

43450-ME9-671

Unavailable

PIN, BRAKE CABLE JOINT

43456-ME9-000

Unavailable

PEDAL, RR. BRAKE (NOT AVAILABLE)

46500-ME9-000

Unavailable

SPINDLE, RR. BRAKE (NOT AVAILABLE)

46510-ME9-000

Unavailable

SPRING, BRAKE PEDAL

46514-ME9-000

Unavailable

CLAMP, SPEEDOMETER SENSOR WIRE

61108-MB0-000

Unavailable

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

BOLT, HEX. (6X20) This part replaces 92000-06020-0A.

92101-06020-0A

$1.49

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

PIN, COTTER (1.6X25)

94201-16250

$1.49

SPRING A, BRAKE ROD

95014-73100

$1.49

JOINT, BRAKE ARM

95015-32001

$1.49

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

BOLT, FLANGE (6X20) This part replaces 95700-06020.

95701-06020-00

$1.55

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

BOLT, FLANGE (6X20) This part replaces 95900-06020-00.

95701-06020-00

$1.55

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
