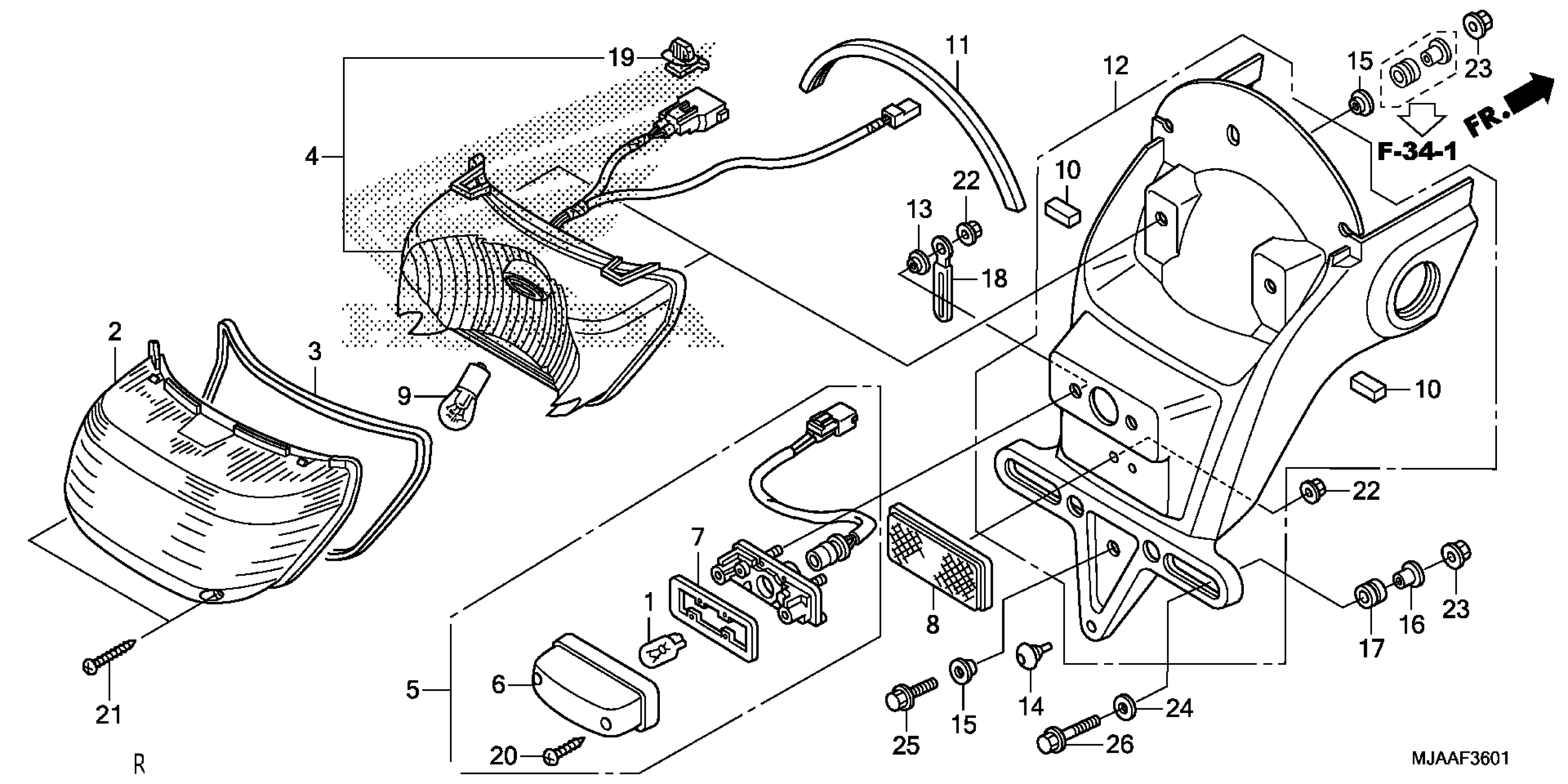

Honda VT750C2SAC (13) SHADOW SPIRIT ABS, JPN, VIN# JH2RC53G-DK100001 TAILLIGHT (2) Diagram

#

Description
Price

1

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.66

2

LENS, TAILLIGHT This part replaces 33702-MFE-305.

33702-MFE-671

$22.78

3

GASKET, TAILLIGHT

33703-MFE-671

$4.33

4

BASE, TAILLIGHT

33707-MFE-671

$54.64

5

LIGHT ASSY., LICENSE (12V 5W) This part replaces 33720-MFE-305.

33720-MFE-671

$71.28

5

LIGHT ASSY., LICENSE (12V 5W)

33720-MFE-671

$71.28

6

COVER, LICENSE

33721-GET-671

$17.41

7

GASKET, LENS

33729-MCZ-003

$8.62

8

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.60

9

BULB, TAIL/STOP LIGHT (12V 21/5W) (STANLEY) (FR.)

34906-447-711

$8.42

10

RUBBER, TAILLIGHT

80103-MFE-670

$1.26

11

MOUL, RR. FENDER COVER

80104-MFE-670

$7.74

12

FENDER ASSY. A, RR.

80105-MFE-670

$32.70

13

COLLAR, RR. FENDER

80114-KG7-000

$3.90

14

PLUG, RR. COWL (NOT AVAILABLE)

80501-415-000

$2.41

15

WASHER (6X20)

90401-373-770

$5.16

16

COLLAR, RR. FENDER

90502-GG2-000

$5.35

17

RUBBER, CONTROL BOX

90852-898-000

$3.67

18

CLIP (2X60)

91410-679-000

$9.04

19

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.42

20

SCREW, TAPPING (4X16)

93901-24480

$0.75

21

SCREW, TAPPING (4X30)

93901-347G0

$2.01

22

NUT, FLANGE (5MM)

94050-05000

$1.19

23

NUT, FLANGE (6MM)

94050-06000

$0.59

24

WASHER, PLAIN (6MM)

94103-06000

$0.90

25

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.91

26

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
