Description

Price

1

CONNECTOR, MASTER CYLINDER

43503-KS6-701

$8.94

2

BOOT

43504-MB2-006

$9.01

3

STAY, OIL CUP

43505-MEG-H10

$9.07

4

COVER, OIL CUP

43506-MEG-H10

$24.54

5

MASTER CYLINDER SUB-ASSY., RR. (COO) (NISSIN)

43510-MJA-305

$171.41

6

CUP, OIL

43511-KV3-831

$21.29

7

HOSE, RR. MASTER CYLINDER

43512-MEG-H11

$30.49

8

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

9

CIRCLIP, RR. MASTER CYLINDER (FOR FR.)

43517-KS6-701

$3.55

10

PISTON SET, RR. MASTER CYLINDER

43520-MEG-H11

$81.33

11

ROD, PUSH (NISSIN)

43530-MW0-006

$27.93

12

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$3.87

12

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$3.87

13

DIAPHRAGM

45520-MG7-006

$9.52

14

PLATE, DIAPHRAGM

45521-HA2-006

$9.75

15

CIRCLIP

46182-MEL-D21

$1.77

16

JOINT, BRAKE ROD

46504-MAH-671

$13.01

17

BRACKET, RR. BRAKE MASTER CYLINDER

50616-MEG-H10

$50.94

18

BOLT ASSY., SPECIAL (6X26.6)

90110-MEG-H10

$20.12

19

RUBBER, MOUNTING (FRAME NO.)

90543-MBA-000

$2.80

20

PIN, JOINT

90751-MEH-000

$2.97

21

O-RING (14.8X2.4)

91212-422-006

Unavailable

22

SCREW, FLAT (4X40)

93600-04040-1G

$0.43

23

NUT, HEX. (8MM)

94002-08000-0S

$1.19

24

PIN, COTTER (2.0X15)

94201-20150

$0.94

25

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.61

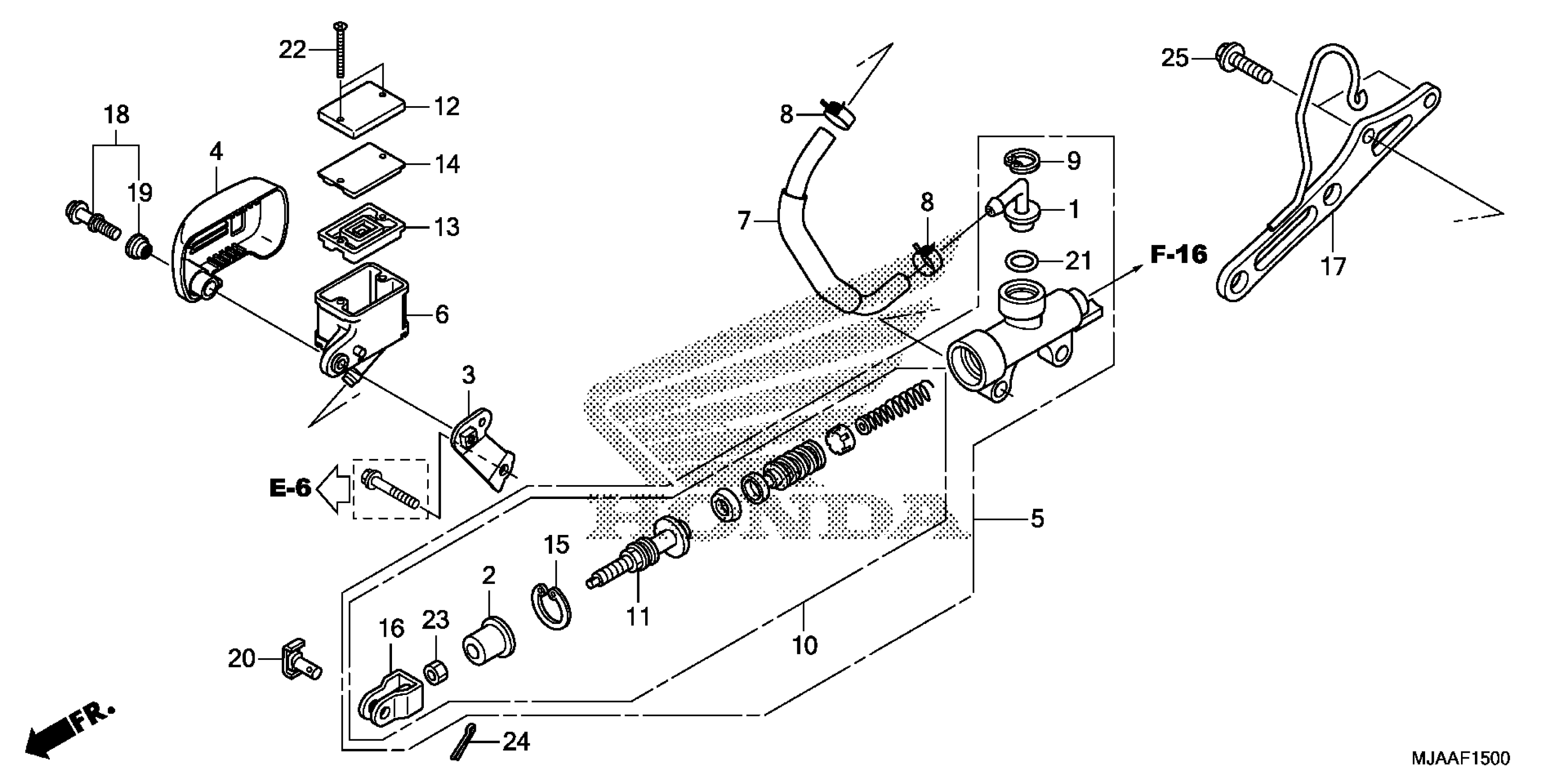

Honda VT750C2SAC (13) SHADOW SPIRIT ABS, JPN, VIN# JH2RC53G-DK100001 REAR BRAKE MASTER CYLINDER Diagram
