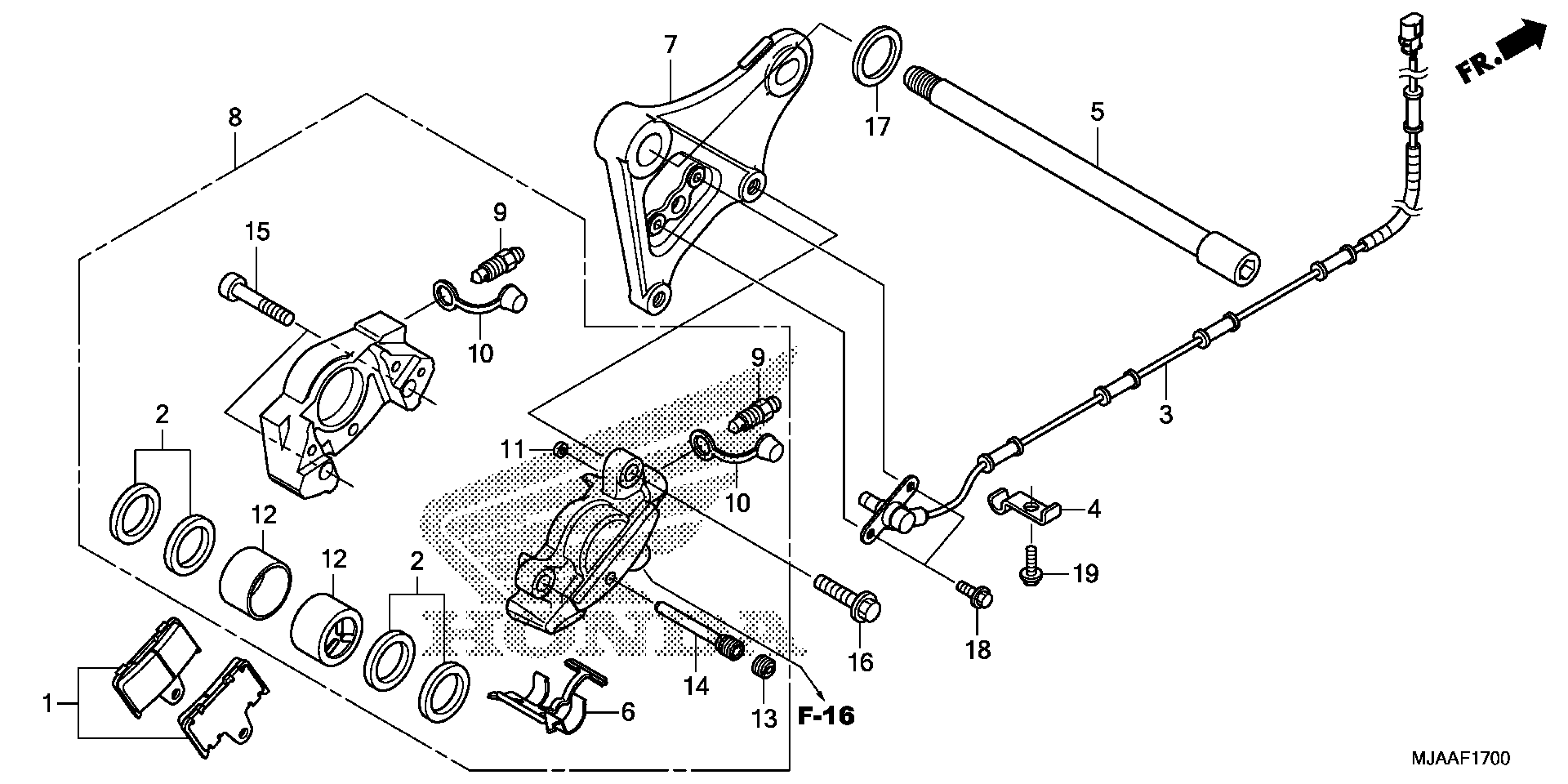

Honda VT750C2SAC (13) SHADOW SPIRIT ABS, JPN, VIN# JH2RC53G-DK100001 REAR BRAKE CALIPER Diagram

PAD SET, RR. This part replaces 06435-MAZ-006.

06435-MAZ-016

$66.00

SEAL SET, PISTON

06451-443-405

$13.23

SENSOR, RR. WHEEL SPEED

38510-MEG-H11

$397.16

CLAMP, ABS SENSOR

38511-MEG-H10

$11.21

AXLE, RR. WHEEL

42301-MEG-640

$59.87

SPRING, PAD

43108-MCE-006

$9.26

BRACKET, RR. BRAKE

43110-MEG-H11

$218.16

CALIPER SUB-ASSY., RR. BRAKE (NISSIN)

43150-MEG-H11

$729.52

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

SEAL, JOINT (NISSIN)

45103-MR7-006

$3.72

PISTON

45107-MBS-006

$39.69

PLUG, PIN

45203-MG3-016

$5.12

PIN, HANGER (NISSIN)

45215-ML7-922

$10.67

BOLT, TORX (10X45)

90107-MAZ-006

$4.77

BOLT, FLANGE (10X32)

90131-MY9-870

$2.25

WASHER (20.2X32X3)

90502-MEG-H10

$13.33

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

BOLT, FLANGE (6X16)

96001-06016-07

$1.49
