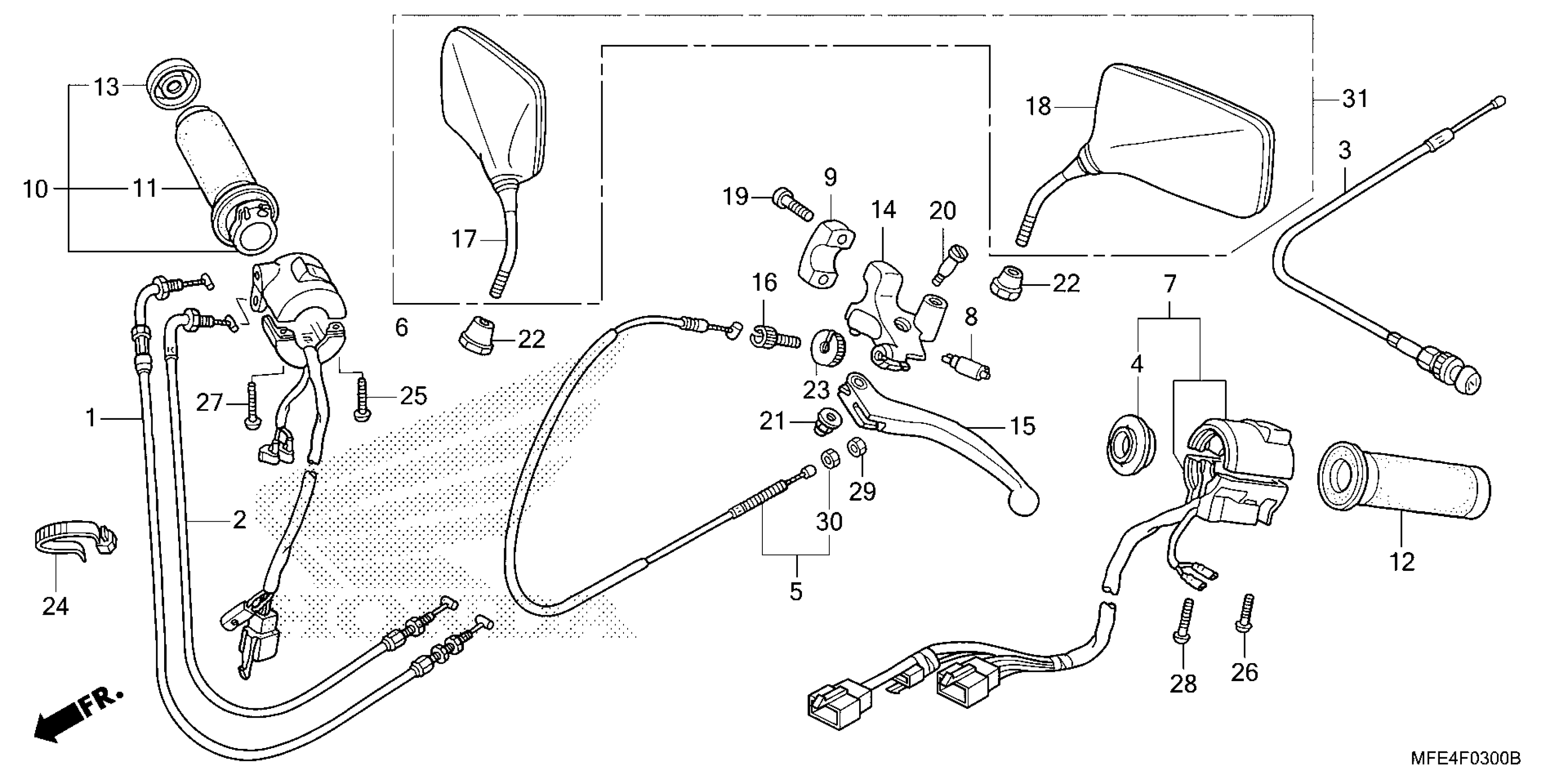

Honda VT750C2FAC (09) SHADOW SPIRIT, JPN, VIN# JH2RC535-9K200001 HANDLE LEVER@SWITCH@CABLE Diagram

CABLE A, THROTTLE

17910-MFE-670

$39.11

CABLE B, THROTTLE

17920-MFE-670

$31.20

CABLE, CHOKE

17950-MEG-000

$21.36

ADAPTER

17962-MR1-000

$19.30

CABLE, CLUTCH This part replaces 22870-MFE-670.

22870-MFE-671

$32.32

CABLE, CLUTCH

22870-MFE-671

$32.32

SWITCH ASSY., STARTER STOP This part replaces 35130-MFE-671.

35130-MFE-672

$132.54

SWITCH ASSY., STARTER STOP

35130-MFE-672

$132.54

SWITCH ASSY., TURN SIGNAL

35200-MFE-671

$122.62

SWITCH, FR. LEVER (TOYO DENSO)

35330-413-003

$21.91

HOLDER, MASTER CYLINDER (NISSIN)

45517-MEG-006

$9.80

GRIP ASSY., R.

53145-MM8-000

$43.84

GRIP ASSY., R.

53145-MM8-000

$43.84

GRIP, R. This part replaces 53165-MM8-000.

53145-MM8-000

$43.84

GRIP, L. HANDLE

53166-KCR-000

$36.92

CAP, GRIP END

53167-MM8-000

$9.37

BRACKET, HANDLE LEVER

53172-MEG-000

$31.75

LEVER, L. HANDLE

53178-MAH-000

$19.50

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

MIRROR, R.

88210-MEA-670

Unavailable

MIRROR, L.

88220-MEA-670

Unavailable

BOLT, SOCKET (6X22)

90101-MCL-000

$1.49

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.58

NUT, CAP (6MM)

90201-415-000

$2.05

NUT, LOCK

90314-375-000

$12.55

NUT, FIXING

90321-MA6-750

$10.45

BAND, WIRE HARNESS

90620-SB2-003

$24.63

SCREW, PAN (5X20)

93500-05020-0A

$1.49

SCREW, PAN (5X22)

93500-05022-0A

$1.49

SCREW, PAN (5X25) SCREW, PAN (5X32)

93500-05025-0A

$1.49

SCREW, PAN (5X32)

93500-05032-0A

$1.49

NUT, HEX. (8MM)

94002-08070-0S

$1.49

NUT, HEX. (8MM)

94030-08070

$1.49

MIRROR SET

88100-MEA-305

$69.41
