Description

Price

1

FORK ASSY., R. FR. (COO) (KAYABA) This part replaces 51400-MFE-671.

51400-MFE-305

$678.75

2

SPRING, FR. FORK

51401-MFE-671

$75.44

3

SPACER, SPRING

51402-MEG-003

$10.51

4

WASHER

51404-MBA-003

$5.22

5

PIPE, FR. FORK

51410-MFE-671

$325.89

6

SPRING, FR. REBOUND

51411-MBA-003

$6.75

7

WASHER

51412-KA4-004

$6.75

8

BUSH, SLIDER

51415-MEG-003

$7.61

9

CASE, R. (LOWER)

51420-MFE-671

$363.74

10

BUSH, GUIDE

51424-MCT-003

$7.00

11

PIECE, OIL LOCK

51431-MBA-003

$16.86

12

SPRING, OIL LOCK

51433-MBA-J50

$3.87

13

RING, PISTON

51437-MCT-003

$4.93

14

PIPE, SEAT

51440-MEG-003

$42.30

15

RING, SNAP

51447-KA4-004

$4.24

16

BOLT, FR. FORK

51450-MEG-901

$28.05

17

SEAL SET, FR. FORK

51490-MCT-003

$17.74

18

FORK ASSY., L. FR. (KAYABA)

51500-MFE-671

$678.75

19

CASE, L. (LOWER)

51520-MFE-671

$380.11

20

WASHER, OIL BOLT (KAYABA)

52442-KA3-731

$2.34

21

BOLT, SOCKET (8X35)

90109-MCR-D00

$2.84

22

BOLT, SOCKET (10X25)

90116-KK0-004

$5.94

23

DUST SEAL

91254-MCK-A01

$12.17

24

O-RING (31.7X3.5)

91356-KT1-671

$3.13

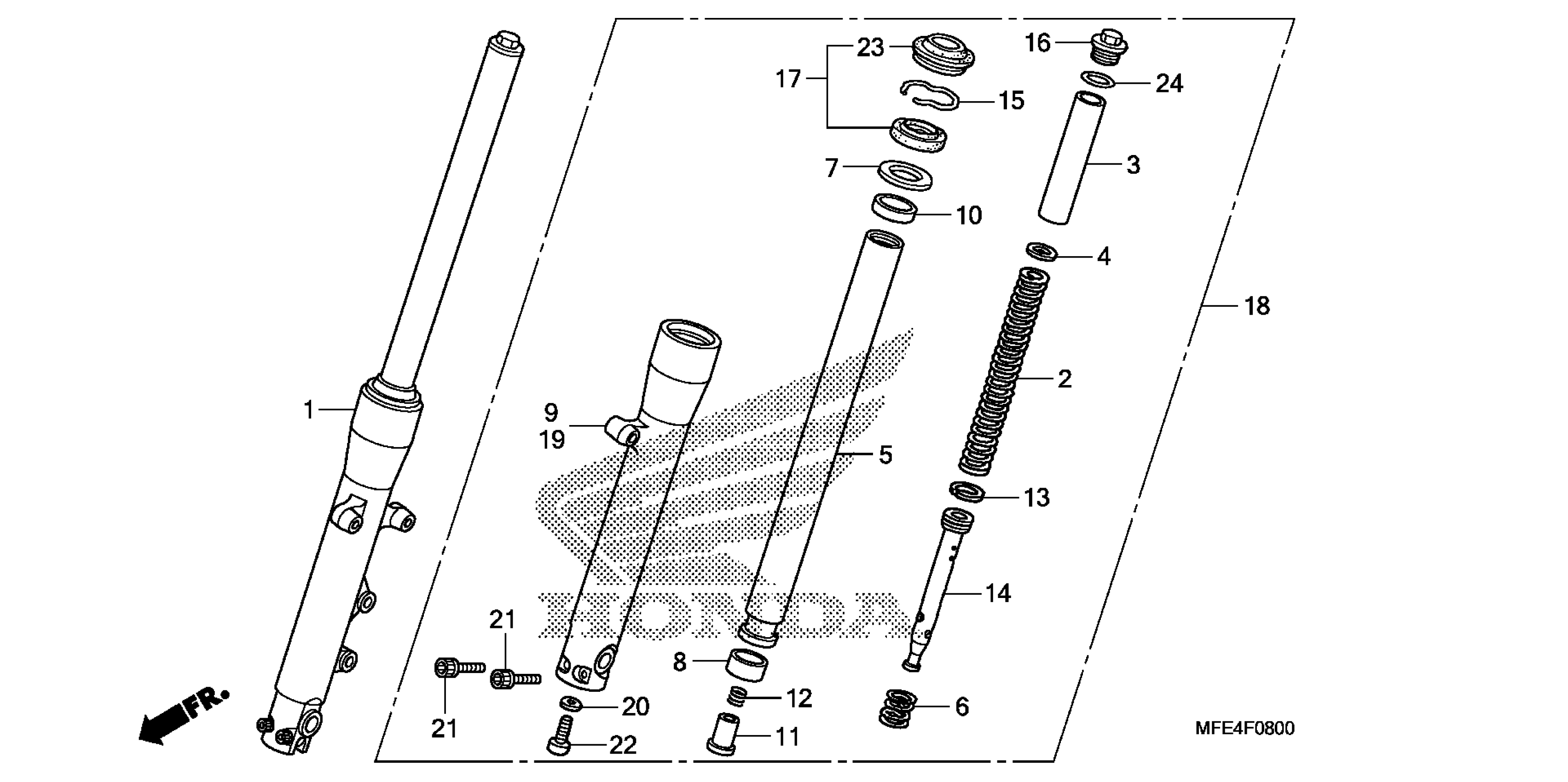

Honda VT750C2FAC (09) SHADOW SPIRIT, JPN, VIN# JH2RC535-9K200001 FRONT FORK Diagram

FORK ASSY., R. FR. (COO) (KAYABA) This part replaces 51400-MFE-671.

SPRING, FR. FORK

SPACER, SPRING

WASHER

PIPE, FR. FORK

SPRING, FR. REBOUND

WASHER

BUSH, SLIDER

CASE, R. (LOWER)

BUSH, GUIDE

PIECE, OIL LOCK

SPRING, OIL LOCK

RING, PISTON

PIPE, SEAT

RING, SNAP

BOLT, FR. FORK

SEAL SET, FR. FORK

FORK ASSY., L. FR. (KAYABA)

CASE, L. (LOWER)

WASHER, OIL BOLT (KAYABA)

BOLT, SOCKET (8X35)

BOLT, SOCKET (10X25)

DUST SEAL

O-RING (31.7X3.5)
